Power Supply
The power supply pins of MODULE include 4 pins (pin 62&63, pin 38&39) named VBAT.
The 4 VBAT pads supply the power to RF and baseband circuits directly. On VBAT pads, the ripple
current up to 2A typically, due to GSM/GPRS emission burst (every 4.615ms), may cause voltage
drop. So the power supply for these pads must be able to provide sufficient current up to more than
2A in order to avoid the voltage drop is more than 300mV.

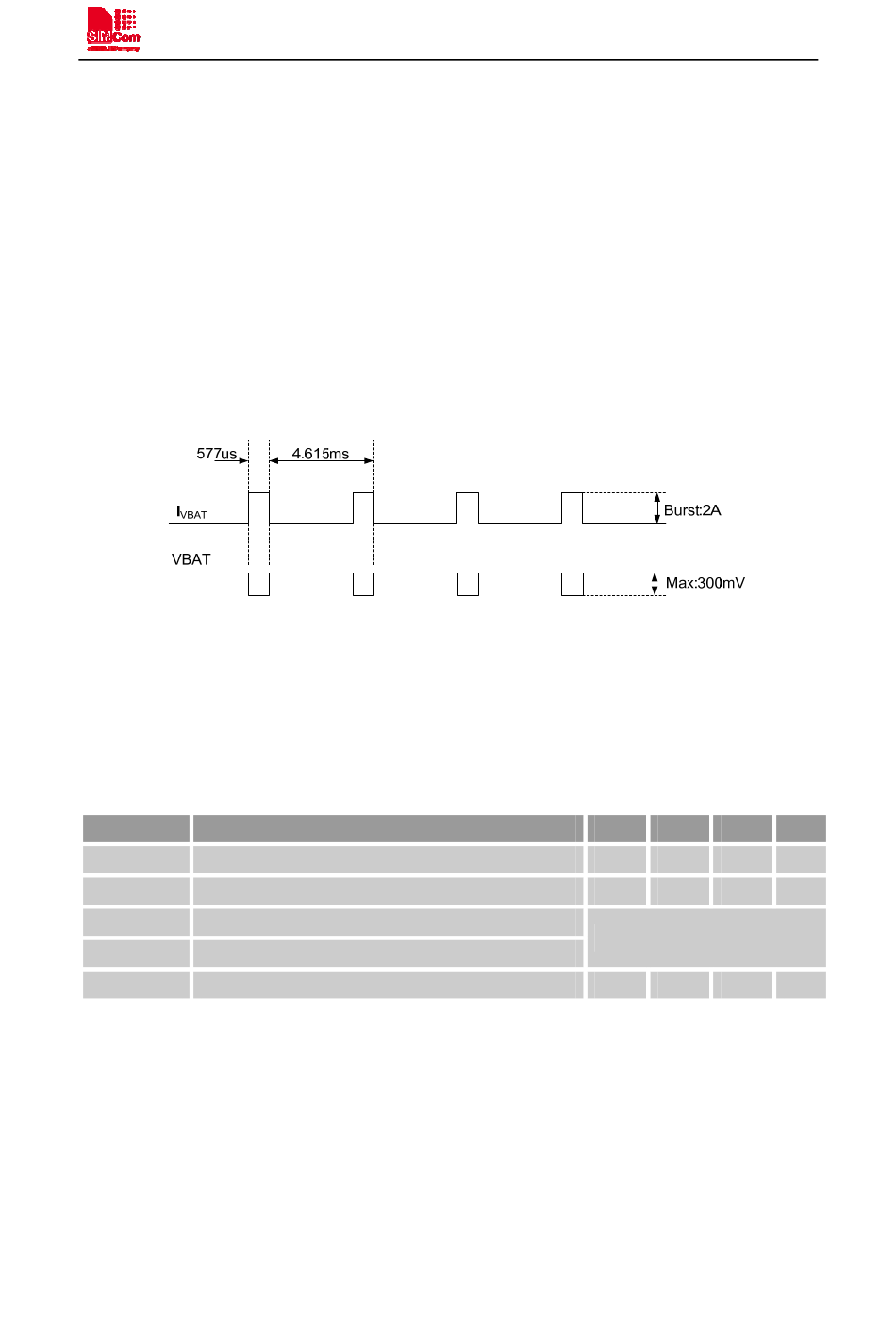

The following figure shows the VBAT voltage ripple wave at the maximum power transmit phase.
Figure 5: VBAT voltage drop during burst emission (GSM/GPRS)
Note: The test condition: The voltage of power supply for VBAT is 3.8V, Cd=100 µF tantalum
capacitor (ESR=0.7Ω) and Cf=100nF (Please refer to Figure 6—Application circuit).
Table 6: VBAT pins electronic characteristic
Symbol
Description
VBAT
Module power voltage
I
Module power peak current in normal mode.
VBAT(peak)
I
Module power average current in normal mode
VBAT(average)
I
Power supply current in sleep mode
VBAT(sleep)
I
Module power current in power off mode.
VBAT(power-off)
SIM7600NA_user manual _V1.00
Smart Machine Smart Decision
23
Min.
Typ.
Max.
3.4
3.8
4.2
-
2
-
Please refer to the table 34
-
-
20
2020-1-7
Unit
V
A
uA
