TSM

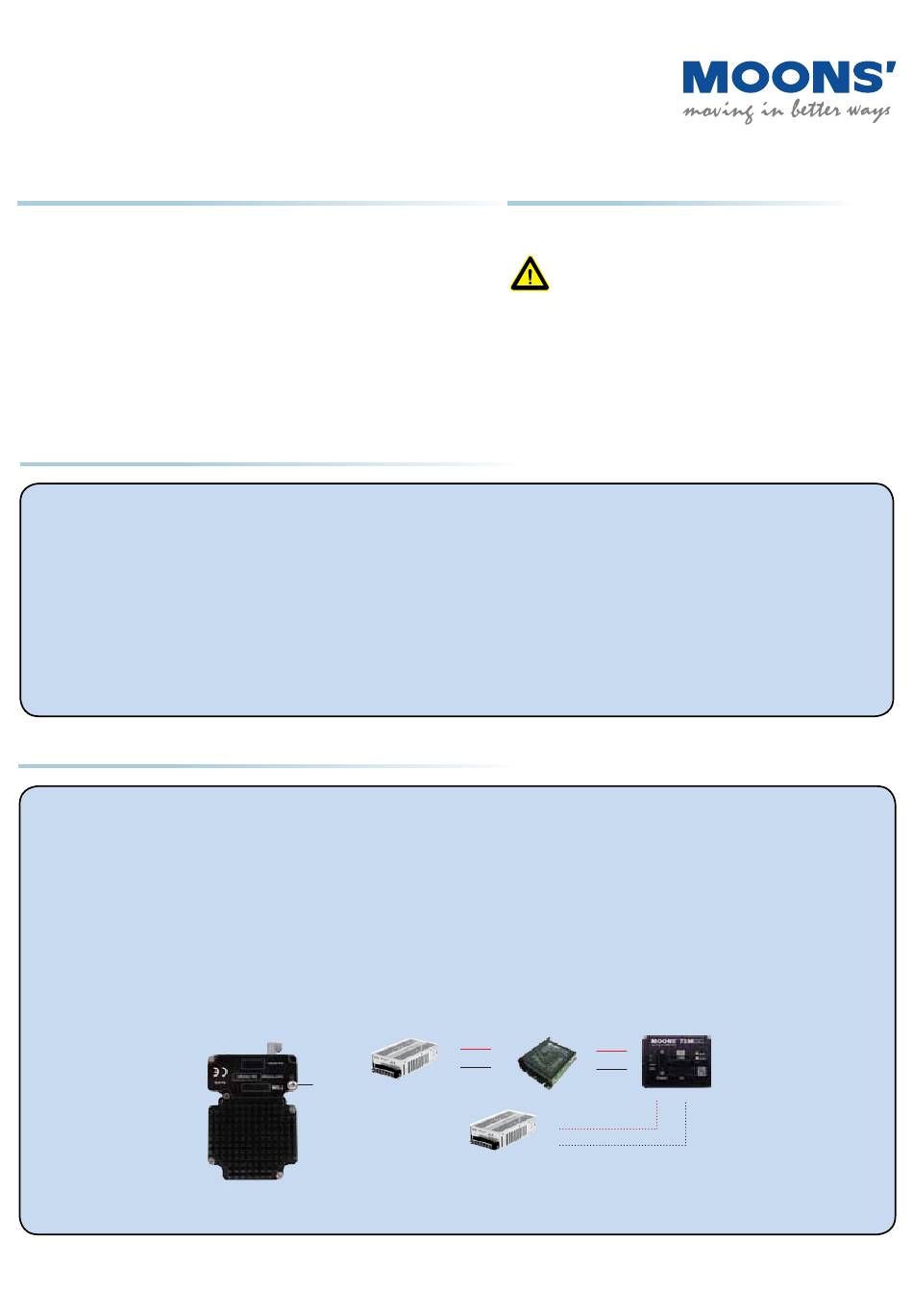

TSM34P Quick Setup Guide
Requirements:
You will need these items to setup the TSM34P:
•
A 24-70VDC power supply
•
A 12-48VDC auxiliary power supply (if needed)
•
A small flat blade screwdriver for tightening the
connectors (included)
•
A PC running Microsoft Windows XP, or Windows7/8/10
with an RS-232 serial communication port, otherwise a
USB to RS-232 serial port converter is needed.
•
Software: Step-Servo Quick Tuner
•
a programming cable (included)
Step 1
Install Software
•
Download the "Step-Servo Quick Tuner" from MOONS' website.
•
Install the "Step-Servo Quick Tuner" software application.
•
Connect the drive to the PC using the programming cable. (See "Communication Wiring" below)
•
Choose the correct COM port. (See "Choosing the Right COM Port" below)
•
Run the software application.
•
Apply power to the drive.
•
The software will communicate with the drive and display the model & firmware version.
•
Follow the steps in the "Step-Servo Quick Tuner" to set up.
Step 2
Connect the Power Supply
•
Connect the main power supply "+" terminal to the drive "+" terminal & the power supply "-" terminal to the drive "-"
terminal using 16 to 20-gauge wire.
•
Connect the auxiliary power supply "+" terminal to the drive "AUX +" terminal & the power supply "-" terminal to
the drive "AUX -" terminal
Be careful not to reverse the wires. Reversing the connection may open the internal fuse and void the warranty
•
If a regulated power supply is being used, there may be a problem with regeneration that can be solved with the
use of a MOONS' RC880 Regeneration Clamp. See MOONS' website or the TSM34P Hardware Manual for more
information.
NOTE: When using the optional auxiliary power supply, the main power must be applied prior to the auxiliary power.
V+
V-
to Earth
Main Power Supply
Ground
24-70VDC
AUX Power Supply
12-48VDC
Safety Instructions:
•
Only qualified personnel should assemble,
install, operate or maintain this equipment.
•
Read all available documentation before
assembly and operation.
•
It is vital to ensure that all system
components are connected to earth ground.
•
This product contains electrostatically
sensitive components that can be damaged
by incorrect handling.
+
+
V+
Vin
Vout
-
V-
-
AUX+
RC880
V+
V-
TSM
AUX-
2016/02/06
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moons' TSM34P
Summary of Contents for Moons' TSM34P
- Page 1 TSM34P Quick Setup Guide Requirements: Safety Instructions: You will need these items to setup the TSM34P: • Only qualified personnel should assemble, • A 24-70VDC power supply install, operate or maintain this equipment. • A 12-48VDC auxiliary power supply (if needed) • Read all available documentation before • A small flat blade screwdriver for tightening the assembly and operation. connectors (included) • A PC running Microsoft Windows XP, or Windows7/8/10 •...
- Page 2 Step 3 Configure the drive a) Apply power to the drive b) The software will recognize the drive & display the model & firmware version c) Setup drive control mode, and control mode settings d) Setup I/O function Communication Wiring RS-232 Communication All TSM34P products come with a 1.5m communication cable. Make sure the wiring distance between the TSM34P and the PC is less than 1.5m. Connect the larger connector (DB9) of the cable to the PC serial communication port, and the smaller side to the TSM34P motor (white 4pin connector). NOTE: If your PC does not have an RS-232 port, you will need a USB to serial port converter. Please check MOONS' website for purchase information. Do not try to plug in or remove the communication cable when drive power is ON. Choosing the Right COM Port Open the “Device Manager” on the PC. If the PC has an built-in RS-232 serial port, “Ports (COM & LPT)” will be displayed. Connect the PC and drive with the included RS-232 communication cable. Choose the connected COM(n) port in the Step-Servo Quick Tuner software. If the PC does not have an RS-232 serial port, a USB to RS-232 serial port adapter will be needed. Open the “Device Manager” on the PC. There may or may not be a "Ports” selection. Connect the adapter to the PC, this USB adapter COM port should then be displayed. Choose this new COM(n) port in the Step-Servo...
