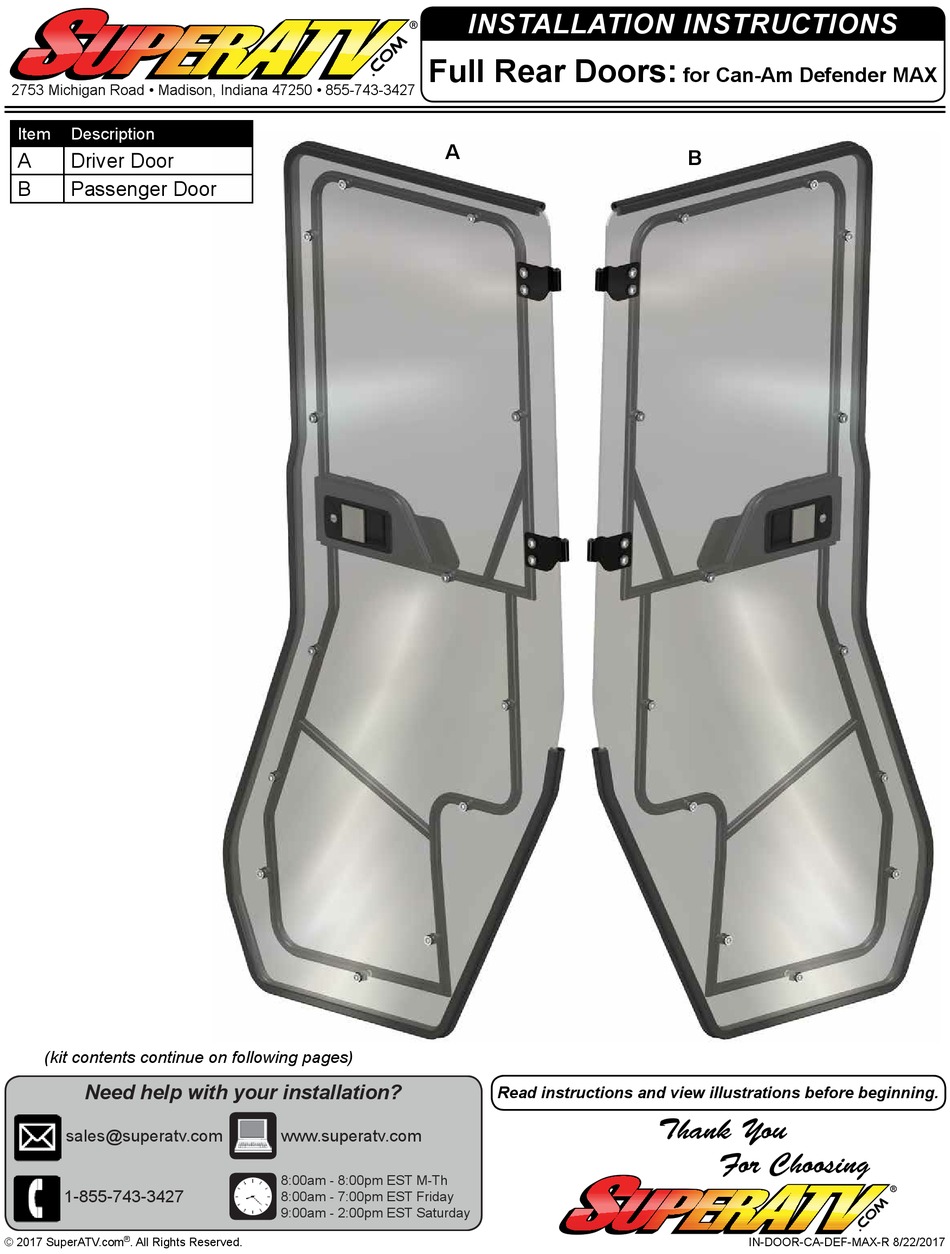

2753 Michigan Road • Madison, Indiana 47250 • 855-743-3427
Item
Description
A
Driver Door
B
Passenger Door
(kit contents continue on following pages)
Need help with your installation?
sales@superatv.com
1-855-743-3427
© 2017 SuperATV.com
®
. All Rights Reserved.
Full Rear Doors:
A
www.superatv.com
8:00am - 8:00pm EST M-Th
8:00am - 7:00pm EST Friday
9:00am - 2:00pm EST Saturday
INSTALLATION INSTRUCTIONS
Read instructions and view illustrations before beginning.
for Can-Am Defender MAX
B
Thank You
For Choosing
IN-DOOR-CA-DEF-MAX-R 8/22/2017
Advertisement
Related Manuals for SuperATV DOOR-CA-DEF-MAX-R
Summary of Contents for SuperATV DOOR-CA-DEF-MAX-R
- Page 1 Need help with your installation? Read instructions and view illustrations before beginning. Thank You sales@superatv.com www.superatv.com For Choosing 8:00am - 8:00pm EST M-Th 1-855-743-3427 8:00am - 7:00pm EST Friday 9:00am - 2:00pm EST Saturday © 2017 SuperATV.com ® . All Rights Reserved. IN-DOOR-CA-DEF-MAX-R 8/22/2017...
- Page 2 (kit contents continued) Foam Item Description Item Description Striker Passenger Hinge Assembly 1 Clamp Driver Hinge Assembly Passenger Hinge Mount Gas Strut Driver Hinge Mount IN-DOOR-CA-DEF-MAX-R...
- Page 3 Removal: keep all components removed from machine. (Passenger) remove Safety Net remove Protector Tube - Repeat for opposite side. IN-DOOR-CA-DEF-MAX-R...
- Page 4 - Install Driver Hinge Mount (E) to Frame with stock hardware. Tighten hardware. - Install Driver Hinge Assembly (G) to Driver Hinge Mount (E) with hardware shown. Foam Weld Nuts this surface will face vehicle 4 each M8 x 20mm M8 Washer Acorn Nut IN-DOOR-CA-DEF-MAX-R...
- Page 5 - Install Clamps (C) to Driver Hinge Mount (E) with hardware shown. Tighten hardware. - Install Acorn Nuts onto previously installed hardware. (inside vehicle) 2 each M6 x 20mm M6 Washer M6 Nut IN-DOOR-CA-DEF-MAX-R...
- Page 6 Driver Door Installation continued: do not tighten hardware completely unless noted. - Install Striker (B) with hardware shown. 2 each M8 x 14mm M8 Washer IN-DOOR-CA-DEF-MAX-R...
- Page 7 - Install Driver Door (A) onto Driver Hinge Assembly (G). tighten this hardware last - Close Door, engage Latch / Striker Pin, and align Door to machine. - Tighten all hardware completely. IN-DOOR-CA-DEF-MAX-R...
- Page 8 The Buyer is also responsible to obey all ® applicable federal, state, and local laws and ordinances when operating his/her vehicle while using this product, and the Buyer agrees to hold SuperATV harmless from any ®...
-
Page 9: Installation Instructions
Read instructions and view illustrations before beginning. Thank You sales@superatv.com www.superatv.com For Choosing 8:00am - 8:00pm EST M-Th 1-855-743-3427 8:00am - 7:00pm EST Friday 9:00am - 2:00pm EST Saturday © 2016 SuperATV.com ® . All Rights Reserved. Rev IN-DOOR-CA-DEF-001 6/22/2020... - Page 10 KEYS ARE LOCATED UNDER ORANGE TAPE. DO NOT DISCARD. Door Cleaning: - Do not use Rain-X , Plexus or any other protector, wax, or polish. ® ® - Do not use window cleaning fluids (Windex, 409, etc) or any solvents (gasoline, denatured alcohol, acetone, etc). - Never use abrasive cleaners, abrasive pads, or gritty cloths. - Never use razor blades, scrapers, squeegees, brushes, etc. 1. Thoroughly rinse Doors to float off dirt and mud.
- Page 11 (kit contents continued) Foam Item Description Item Description Striker Driver Hinge Assembly Pillar Bracket Gas Strut Passenger Hinge Mount Small Clamp Driver Hinge Mount Large Clamp Passenger Hinge Assembly 1 IN-DOOR-CA-DEF-001...
- Page 12 Removal: keep all components removed from machine. remove hardware remove Protector Tube remove Safety Net (Driver) remove hardware IN-DOOR-CA-DEF-001...
- Page 13 Driver Door Installation: do not tighten hardware completely unless noted. - Install Driver Hinge Mount (E) to Frame with stock hardware. Tighten hardware. - Install Driver Hinge Assembly (G) to Driver Hinge Mount (E) with hardware shown. Weld Nuts this surface will face vehicle 4 each M8 x 20mm M8 Washer...
- Page 14 Driver Door Installation continued: do not tighten hardware completely unless noted. - Install Large Clamps (K) to Driver Hinge Mount (E) with hardware shown. Tighten hardware. - Install Acorn Nuts onto previously installed hardware. (inside vehicle) 2 each M6 x 20mm M6 Washer M6 Nut IN-DOOR-CA-DEF-001...
- Page 15 Driver Door Installation continued: do not tighten hardware completely unless noted. - Install provided “U” Joint to Pillar. Pillar M8 “U” Nut - Secure Pillar Bracket (C) to “U” Nut with hardware shown. Tighten hardware. - Install Small Clamp (J) to Pillar Bracket (C) and Frame. Tighten hardware. Frame M6 x 20mm M6 Washer...
- Page 16 Driver Door Installation continued: do not tighten hardware completely unless noted. - Install Striker (B) to Pillar Bracket (C) with hardware shown. 2 each (Driver) M8 x 25mm M8 Washer (inside vehicle) M8 Nut IN-DOOR-CA-DEF-001...
- Page 17 Driver Door Installation continued: do not tighten hardware completely unless noted. - Install Driver Door (A) onto Driver Hinge Assembly (G). tighten this hardware last - Close Door, engage Latch / Striker Pin, and align Door to machine. - Tighten all hardware completely. IN-DOOR-CA-DEF-001...
- Page 18 Driver Door Installation continued: do not tighten hardware completely unless noted. - Open Driver Door (A) and install Gas Strut (H) to Driver Door (A) and Driver Hinge Mount (E). - Secure with hardware shown. Tighten hardware. M8 Nut IN-DOOR-CA-DEF-001...
- Page 19 - Remove installed Mounts on Mirrors. Use 8mm wrench. Discard Mount and hardware. Mirror hardware Mount hardware - Install Mirror to Driver Door (A) with hardware shown. Tighten hardware. M5 x 20mm 2 each M5 Nut IN-DOOR-CA-DEF-001...
- Page 20 slots shown control front-to-back Mirror rotation Ball - Mirror is spring loaded and can also be adjusted here. - Ball will allow adjustment in various directions. do not loosen IN-DOOR-CA-DEF-001...
