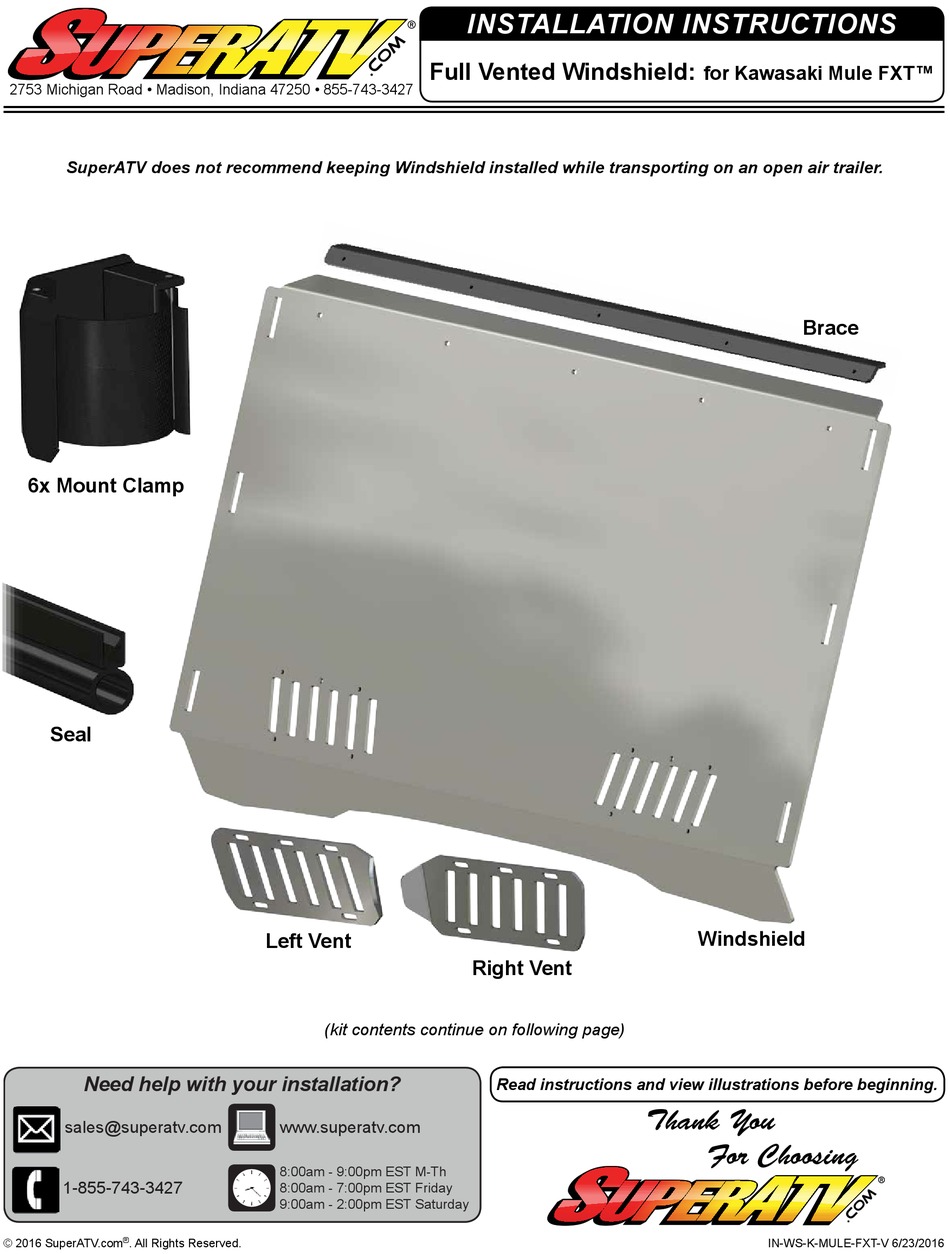

INSTALLATION INSTRUCTIONS
Full Vented Windshield:
for Kawasaki Mule FXT™
2753 Michigan Road • Madison, Indiana 47250 • 855-743-3427
SuperATV does not recommend keeping Windshield installed while transporting on an open air trailer.

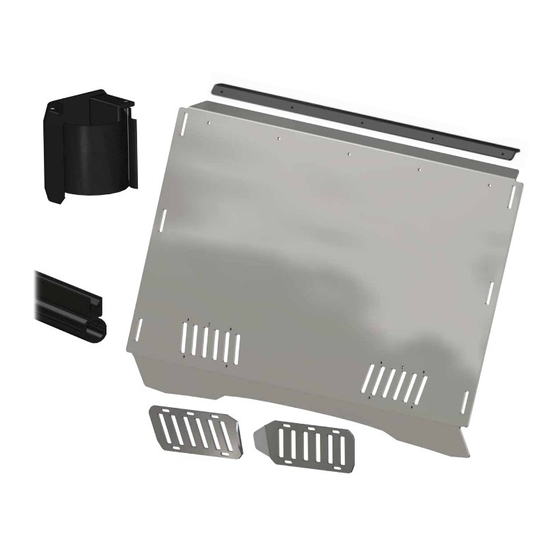

Brace
6x Mount Clamp
Seal
Windshield
Left Vent
Right Vent
(kit contents continue on following page)
Need help with your installation?
Read instructions and view illustrations before beginning.
Thank You
sales@superatv.com
www.superatv.com
For Choosing
8:00am - 9:00pm EST M-Th
1-855-743-3427
8:00am - 7:00pm EST Friday
9:00am - 2:00pm EST Saturday
© 2016 SuperATV.com
®
. All Rights Reserved.
IN-WS-K-MULE-FXT-V 6/23/2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WS-K-MULE-FXT-V-70 and is the answer not in the manual?

Questions and answers

Summary of Contents for SuperATV WS-K-MULE-FXT-V-70

  • Page 1 INSTALLATION INSTRUCTIONS Full Vented Windshield: for Kawasaki Mule FXT™ 2753 Michigan Road • Madison, Indiana 47250 • 855-743-3427 SuperATV does not recommend keeping Windshield installed while transporting on an open air trailer. Brace 6x Mount Clamp Seal Windshield Left Vent...
  • Page 2 (kit contents continued) 5 each M6-1.0 x 20mm Lg. BHCS M6 Sealing Washer M6-1.0 Nylock Nut Thumb Screw Acorn Nut Shoulder Screw Captive Nut Windshields contain shipping bolts that hold Captive Nuts in place. Remove and discard shipping bolts. IN-WS-K-MULE-FXT-V...
  • Page 3 Install Seal to bottom edge of Windshield To ease installation, soak Seal in hot water before cutting or installing to increase flexibility. Use hand tools only when assembling. Seal Install Bracket to Windshield. M6 Nut Do not use power tools. Sealing Washer (driver) IN-WS-K-MULE-FXT-V...
  • Page 4 Assemble Vents to Windshield with hardware shown. Acorn Nut Shoulder Screw install Thumb Screw though each Vent and into factory installed Captive Nut. Thumb Screw IN-WS-K-MULE-FXT-V...
  • Page 5 Seal to be in contact with Hood Insert Clamps into slots in Windshield..Wrap straps around Roll Bar and through Mount Clamps. Windshield Cleaning: - Do not use a dry cloth, or your hands, to wipe off Windshield; Scratching will occur. - Do not use window cleaning fluids (Windex, 409, etc) or any solvents (gasoline, denatured alcohol, acetone, etc). Never use abrasive cleaners, abrasive pads, or gritty cloths. 1. Thouroughly rinse Windshield to float off dirt and mud. 2. Using a soft cloth, or microfiber cloth, clean Windshield with warm water and a gentle detergent. Baby shampoo or hand washing soap are recommended.
  • Page 6 The Buyer is also responsible to obey all ® applicable federal, state, and local laws and ordinances when operating his/her vehicle while using this product, and the Buyer agrees to hold SuperATV harmless from any ®...
