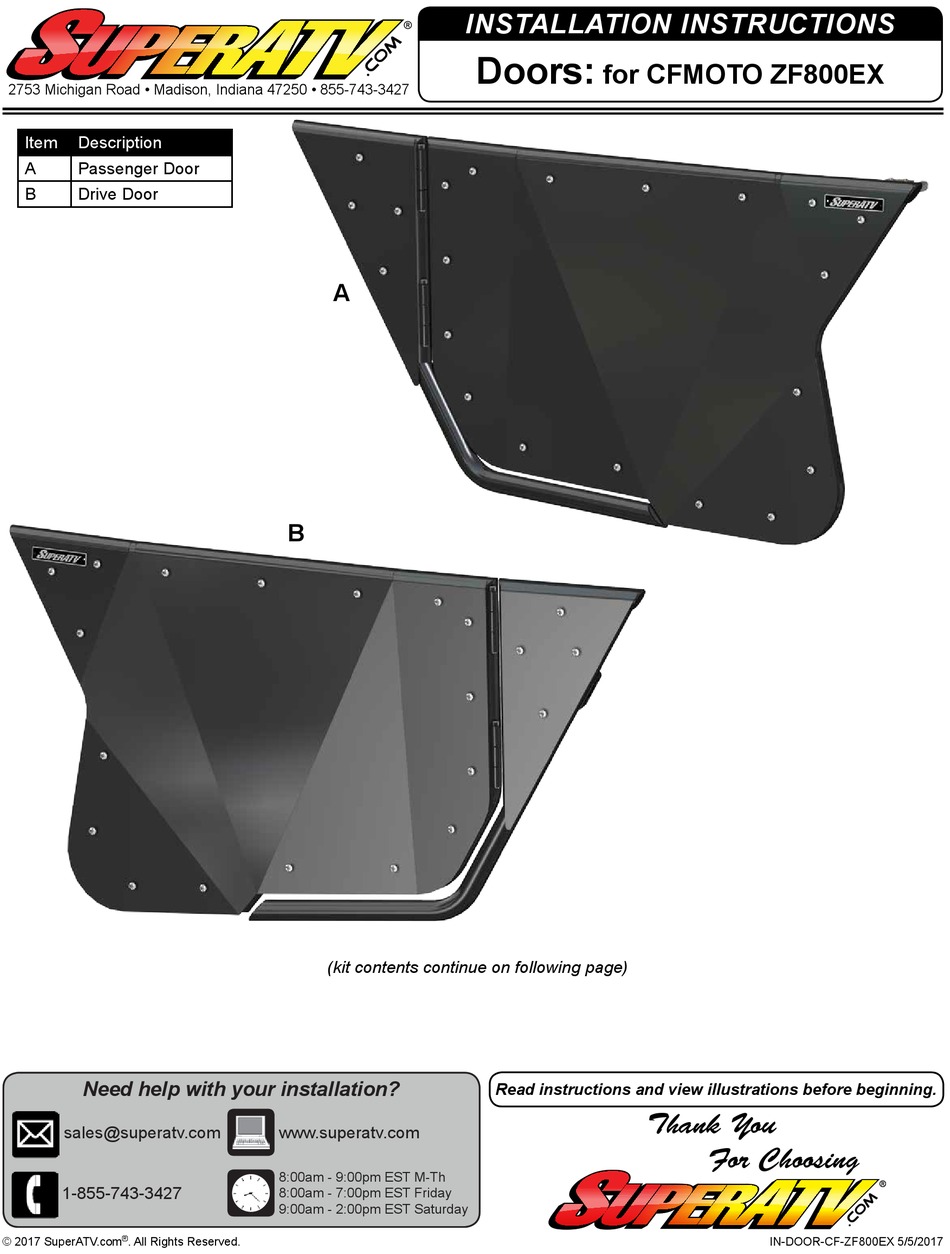

2753 Michigan Road • Madison, Indiana 47250 • 855-743-3427
Item
Description
A
Passenger Door
B

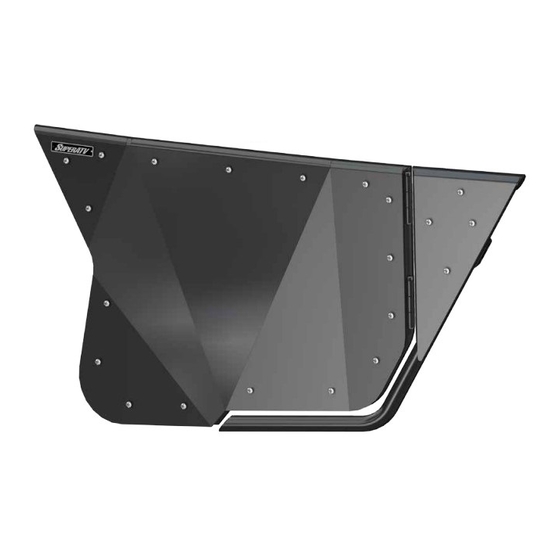

Drive Door
Need help with your installation?
sales@superatv.com
1-855-743-3427
®
© 2017 SuperATV.com
. All Rights Reserved.
A
B
(kit contents continue on following page)
www.superatv.com
8:00am - 9:00pm EST M-Th
8:00am - 7:00pm EST Friday
9:00am - 2:00pm EST Saturday
INSTALLATION INSTRUCTIONS
Doors:
for CFMOTO ZF800EX
Read instructions and view illustrations before beginning.
Thank You
For Choosing
IN-DOOR-CF-ZF800EX 5/5/2017
Advertisement
Related Manuals for SuperATV DOOR-CF-ZF800EX-00
Summary of Contents for SuperATV DOOR-CF-ZF800EX-00
- Page 1 Need help with your installation? Read instructions and view illustrations before beginning. Thank You sales@superatv.com www.superatv.com For Choosing 8:00am - 9:00pm EST M-Th 1-855-743-3427 8:00am - 7:00pm EST Friday 9:00am - 2:00pm EST Saturday ® © 2017 SuperATV.com . All Rights Reserved. IN-DOOR-CF-ZF800EX 5/5/2017...
- Page 2 Item Description Item Description (kit contents continued) Passenger Upper Bracket Driver Upper Bracket Passenger Lower Bracket Driver Lower Bracket Passenger Strap Driver Strap Passenger Striker Bracket Driver Striker Bracket M6-1.0 x 16mm Lg. FHCS M6-1.0 Nylock Nut M8-1.25 Jam Nut M10-1.50 x 40mm Lg.
- Page 3 Remove components shown: Keep all components removed from machine. Rail Panel Fender Flare (driver) IN-DOOR-CF-ZF800EX...
- Page 4 Remove components shown: Keep all components removed from machine. Fender Flare remove Panel (driver) remove Plastic Clips from Side Panel and pull back (driver) IN-DOOR-CF-ZF800EX...
- Page 5 Remove components shown: Keep all components removed from machine. replace stock hardware after removing Hand Rail and Protection Tube items will not be reinstalled (driver) Mirror, Bracket, and hardware. (driver) - Repeat steps for passenger side. IN-DOOR-CF-ZF800EX...
- Page 6 - Install Passenger Upper Bracket (C) to stock location of Hand Rail. Secure with hardware shown. M6 x 16mm M6 Nut stock (passenger) - Install Passenger Lower Bracket (D) to stock location of Protection Tube. Secure with hardware shown. stock (passenger) - Tighten all hardware completely.
- Page 7 - Install Passenger Door (A) to Passenger Upper Bracket (C) and Passenger Lower Bracket (D) with hardware shown. M6 x 16mm M6 x 16mm (passenger) - Install Passenger Strap (E) to Passenger Door (A) and Seat Frame with hardware shown. (passenger) 2 each M6 x 16mm...
- Page 8 - Install Passenger Striker Bracket (F) with hardware shown. (passenger) 2 each M10 x 40mm M8 Nut (Nylock) M10 Nut Shoulder Bolt M8 Nut - Close Door, engage Latch, and align to machine. - Tighten all hardware completely. - Repeat steps for opposite side. IN-DOOR-CF-ZF800EX...
- Page 9 - Remove hardware shown from Seat Frame. remove Seat Frame (driver) - Install Driver Strap (J) to Driver Door (B) and Seat Frame with stock hardware. stock 2 each M6 x 16mm M6 Nut (driver) IN-DOOR-CF-ZF800EX...
- Page 10 The Buyer is also responsible to obey all ® applicable federal, state, and local laws and ordinances when operating his/her vehicle while using this product, and the Buyer agrees to hold SuperATV harmless from any ®...
