Web: Profile Modules
Each profile is made up of two or more connected
Modules or Actions. The relationship between them
forms the layout of the data flow within the profile.

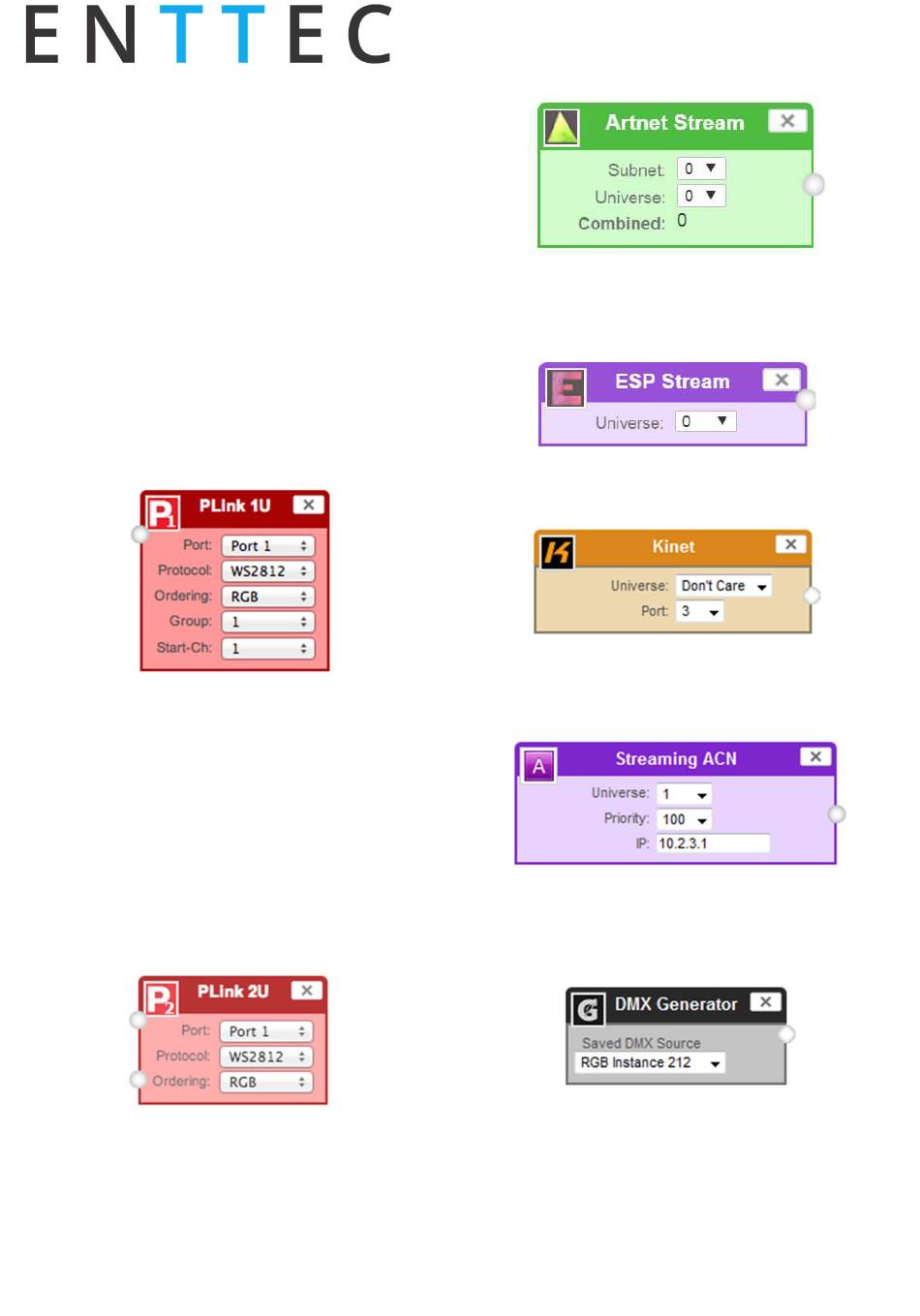

The following modules are available:
PLink 1U:
This module represents one of the physical
ports on the rear of this unit, and maps to 1 Universe.
Protocol: select the led protocol that the pixel
•
tape conforms to.
Ordering: RGB or RGBW mapping that the pixel
•
tape conforms to. RGB modes use 3 DMX slots per
LED pixel, and RGBW modes use 4 DMX slots.
Grouping: it allows one DMX pixel to drive
•
multiple physical LED pixels
Start-Ch: DMX Start Channel for the 1
•
be changed as needed.
Limitation: Same PLink port# cannot be re-used within
the same profile
PLink 2U:
This module represents one of the physical
ports on the rear of this unit, and maps to 2 Universe.
Each PLink 2U module has 2 input nodes that can
•
be connected to two Ethernet streams. Top one
(U1) is mapped to the First universe and Bottom
one (U2) is mapped to the Second universe
relative to the pixel-tape.
Protocol: select the led protocol that the pixel
•
tape conforms to.
Ordering: RGB or RGBW mapping that the pixel
•
tape conforms to.
Limitation: Same PLink port# cannot be re-used within
the same profile
Art-Net Stream:
"Send IP address": is the destination
address used when the stream is sending data only.
US Patent Patenting
ESP Stream
stream (ESP).
IP address is the destination address used when the stream
is sending data only.
st pixel can
Kinet Stream
to be mapped to the output.
Streaming ACN
used when
(default is disabled = 0.0.0.0)
DMX Generator
values and assign the selected ones.
Snapshot feature can be used to capture values from an
input stream. All modifications can be done using the
DMX Grid Page.
Clock:
Allows you to synchronize ALL Pixel Link output only
when the connected Input Stream is received.
Auto-repeat allows user to repeat the output once
•
every "number of seconds" regardless of Synced
Stream
Default behavior [Auto-repeat = Never]: Will only
•
refresh the PLink output ports when a Synced
Stream is received
Document ID: 2114
:
ENTTEC Show protocol DMX over Ethernet
: The Philips Kinet module allows the input
: "IP address" is the destination address
the stream is sending
: Define your own custom DMX Channel
User Manual
50657 (PIXELATOR)
www.enttec.com
data only
