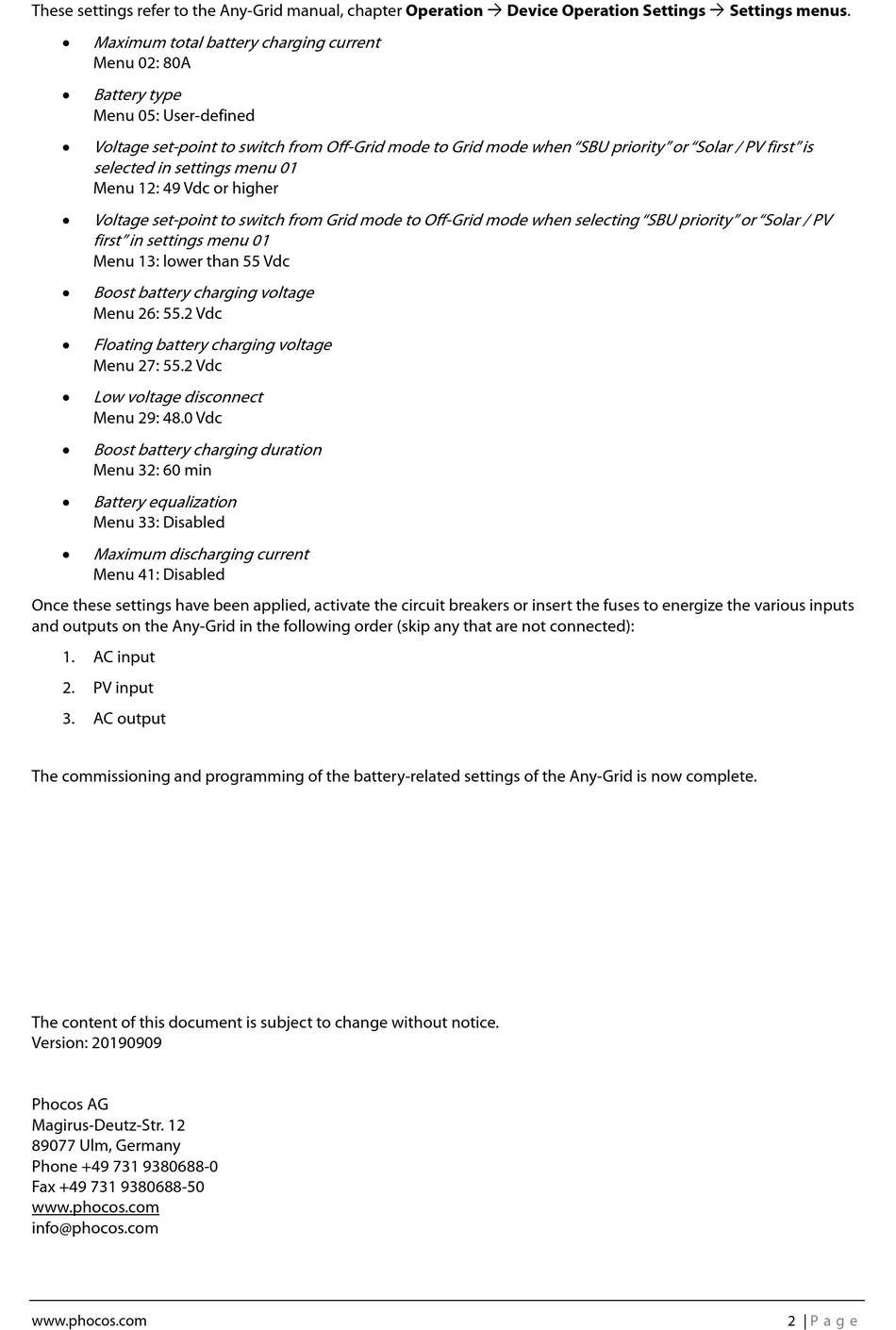

These settings refer to the Any-Grid manual, chapter Operation  Device Operation Settings  Settings menus.
 Maximum total battery charging current
Menu 02: 80A
 Battery type
Menu 05: User-defined
 Voltage set-point to switch from Off-Grid mode to Grid mode when "SBU priority" or "Solar / PV first" is
selected in settings menu 01
Menu 12: 49 Vdc or higher
 Voltage set-point to switch from Grid mode to Off-Grid mode when selecting "SBU priority" or "Solar / PV
first" in settings menu 01
Menu 13: lower than 55 Vdc
 Boost battery charging voltage
Menu 26: 55.2 Vdc
 Floating battery charging voltage
Menu 27: 55.2 Vdc
 Low voltage disconnect
Menu 29: 48.0 Vdc
 Boost battery charging duration
Menu 32: 60 min
 Battery equalization
Menu 33: Disabled
 Maximum discharging current
Menu 41: Disabled
Once these settings have been applied, activate the circuit breakers or insert the fuses to energize the various inputs
and outputs on the Any-Grid in the following order (skip any that are not connected):
1. AC input
2. PV input
3. AC output
The commissioning and programming of the battery-related settings of the Any-Grid is now complete.
