1.0

Introduction

This guide outlines the recommended settings for operation of one or more Any-Grid™ PSW-H-5kW-230/48V hybrid
inverter chargers with one or more BLUE ION 2.0 lithium battery cabinets.
The Any-Grid must be installed according to the Any-Grid "User and Installation Manual" included with every Any-
Grid unit and available online at www.phocos.com. The battery terminals of the Any-Grid must be connected to the
Blue Planet Energy BLUE ION 2.0 according to the BLUE ION 2.0 installation manual.
WARNING: Be sure to read and respect the warnings in the installation manuals of the Any-Grid, the BLUE ION
2.0 battery and any other connected equipment. The installation must be conducted by a trained
professional.
2.0

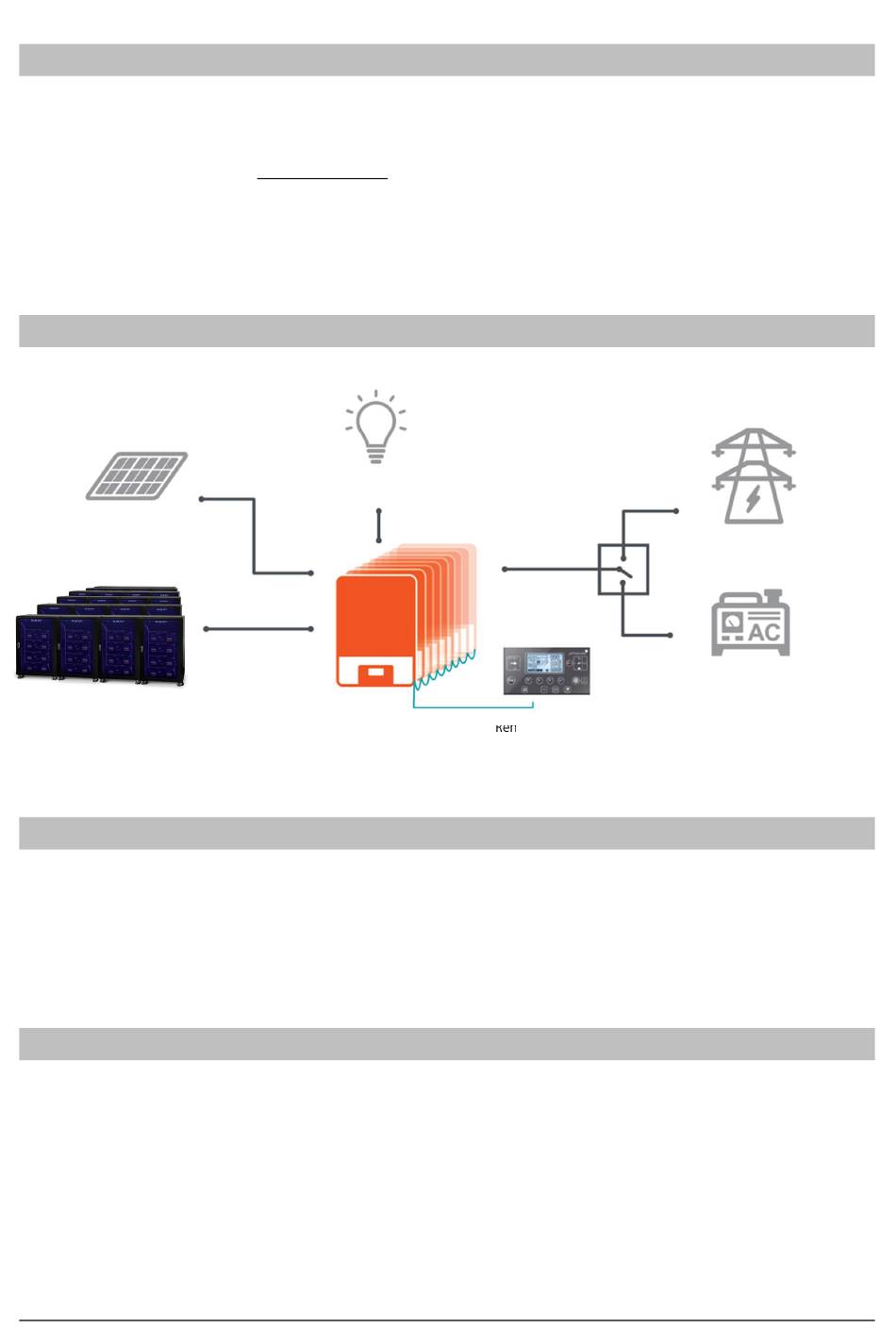

System Overview

PV Panels (optional)
BLUE ION 2.0
3.0

Battery Sizing

Each BLUE ION 2.0 cabinet can support 160 Adc continuous current and has an integrated 250 Adc breaker. It is thus
capable of delivering both sufficient continuous current and peak current for a single PSW-H-5KW-230/48V,
regardless of whether it is an 8, 12 or 16 kWh battery cabinet. When using multiple Any-Grid units, be sure to have at
least one battery cabinet per Any-Grid to sustain the required currents. The batteries must be wired in parallel to
form a single large battery bank when using multiple Any-Grids. All Any-Grids must be connected to the same
battery cluster.
4.0

Recommended Settings

CAUTION: Once the system is wired according to both the Any-Grid and BLUE ION 2.0 installation manuals,
activate only the battery connection to the Any-Grid(s). The AC input source, AC output loads and PV input
must remain off on the Any-Grid until the parameters have been set.
These settings are recommendations only. They are intended to keep the batteries within their operational limits
(maximum voltage, maximum current, etc). These settings can be adjusted to optimize the performance of your
particular system, but must be kept within the limits of the battery specifications.
www.phocos.com
AC Loads
Phocos Any-Grid™
Hybrid Inverter Charger
(up to 9 units parallel or 3-phase)
Removable Display
* Any-Grid™ accepts one AC input
Public Grid (optional)*
AC Generator (optional)*
