Leviton Lumina RF Decora DL057-D0Z Installation And Quick Start Sheet

WARNINGS
• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT
BREAKER OR FUSE AND TEST THAT POWER IS OFF BEFORE WIRING!
• To be installed and/or used in accordance with appropriate electrical codes and
regulations.
• If you are unsure about any part of these instructions, consult an electrician.

Before Installation

• Range up to 75 feet between Lumina RF devices.
• Installs into any single gang device back-box.
• Supports multi-gang installations.
• Multiple devices may be used within the same room for control from
multiple locations or to control multiple loads.
• Each room requires at least one room controller.
• Requires Decora ® faceplate, sold separately.
• DL057 uses 0-10Vdc low voltage control wires which may be
installed using Class 1 or Class 2.
INSTALLATION NOTE (DL057): 0-10V Control Wiring - Connect the
Violet wire to the + 0-10V line and the Gray wire to the 0-10V common
using Class 1 or Class 2 wiring methods as indicated in these instructions,
Observe all requirements of any authority having jurisdiction with respect
to wire type, sleeving, isolation methods, and the like.

Installation

WARNING: TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER
at circuit breaker or fuse and test that power is off before wiring!
When room controller is also powering load:
1.
Strip 3/4 in. and connect as per wiring diagram.
Switch DL05S
Blue
Black
Load
Green
Ground
White
2.
Gently place the wires and your device into the wall box and attach
with screws provided.
Switch DL05S
Blue
Black
White
Green
3.
Restore power and test ON/OFF operation. Locator light should be
ON when switch power is turned OFF.
4.
If desired, change faceplate color.
5.
Install Decora wallplate.
© 2019 Leviton Mfg. Co., Inc.
Wall Station Room Controller: 0-10V Dimmers & Switch
Cat. DL057-D0Z, Ratings: 120-277VAC, 0-10V
Cat. DL057-30Z, Ratings: 347VAC, 0-10V
Cat. DL05S-D0Z, Ratings: 120-277VAC, Switch
INSTALLATION AND QUICK START SHEET
Hot (Black)
White
Line
120/277VAC,
50/60Hz.
Neutral (White)
Load
Neutral
Line (Hot)
Ground
CAUTIONS
• Use this device with copper or copper clad wire only.
• For indoor applications only.
• Save these instructions.

Product Description

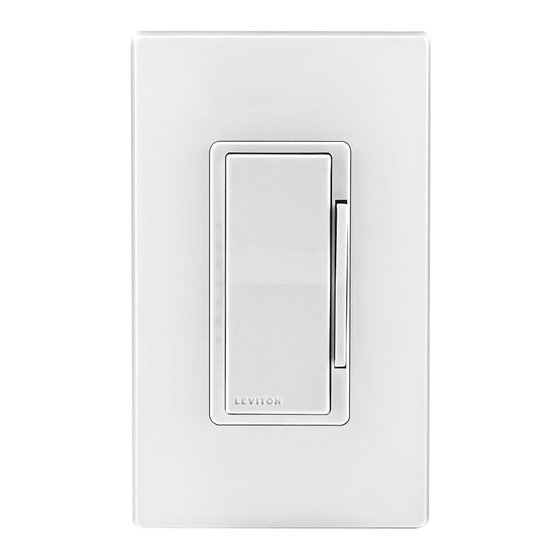

The Lumina RF DL057 Wallstation Dimming Room Controller and DL05S
Wallstation Switching Room Controller are designed to be used to
controllers and wireless sensors within a room. The Wallstation Room
Controllers can directly control lighting loads and/or be expanded with
other Lumina RF devices. It provides all energy management functionality
as required by code and as desired by the user. All aspects of the system
from your smartphone or other Bluetooth
iOS TM device.
Dimmer DL057
Connectors
Electrical Box
Hot (Black) Black
Line
Green
Ground
Neutral (White)
Dimmer DL057
White
Blue
Black
Green
Violet
Gray
To release, push sides.
PK-A3300-10-00-2A
ENGLISH
enabled Android or
TM TM
Violet
Gray
Sleeve
Blue
Black
0-10 VDC
Ballast/LED Driver
White White
Load
Neutral
Line (Hot)
Ground
Line up and press in to attach.
PK-A3300-10-00-2A
