Leviton DL057-D0Z Quick Start Manual

Wall Station Dimming Room Controller Dimmers & Switch
WARNINGS:
• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT
BREAKER OR FUSE AND TEST THAT POWER IS OFF BEFORE WIRING!
• To be installed and/or used in accordance with appropriate electrical codes
and regulations.
• If you are unsure about any part of these instructions, consult an electrician.

Product Description

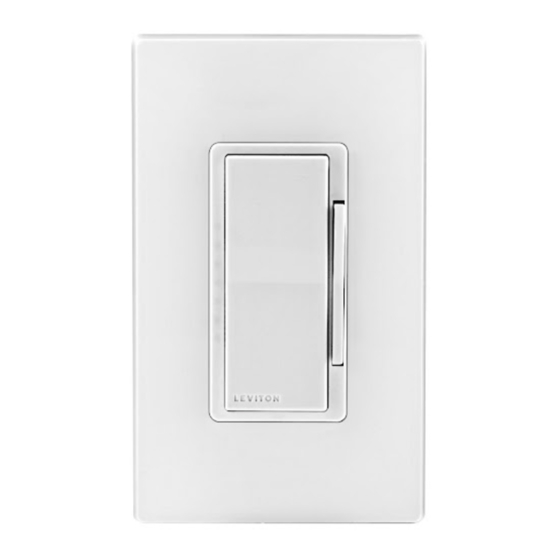

The wireless DL057 Wall Station Dimming Room Controller and DL05S
Wall Station Switching Room Controller are designed to be used to
coordinate and control compatible ZigBee-enabled lamps, fixtures, load
controllers and wireless sensors within a room. The Wall Station Room
Controllers can directly control lighting loads and/or be expanded with
other wireless devices. It provides all energy management functionality as
required by code and as desired by the user. All aspects of the system can
be configured to meet the specific needs of the end user and their
application. All configuration is made using the Lumina
your smartphone or other Bluetooth

Before Installation

• Range up to 75 feet between wireless devices.
• Installs into any single gang device back-box.
• Supports multi-gang installations.
• Multiple devices may be used within the same room for control from
multiple locations or to control multiple loads.
• Each room requires at least one room controller.
• Requires Decora ® faceplate, sold separately.
• DL057 uses 0-10V DC low-voltage control wires which may be
installed using Class 1 or Class 2.
INSTALLATION NOTE (DL057): 0-10V Control Wiring - Connect the
Violet wire to the + 0-10V line and the Pink wire to the 0-10V common
using Class 1 or Class 2 wiring methods as indicated in these instructions,
ballast/fixture/driver instructions or ballast/fixture/driver label markings.
Observe all requirements of any authority having jurisdiction with respect
to wire type, sleeving, isolation methods, and the like.
NOTE: Depending on date of manufacture, the pink 0-10V wire may be gray.

Installation

WARNING: TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT
CIRCUIT BREAKER OR FUSE AND TEST THAT POWER IS OFF BEFORE WIRING!

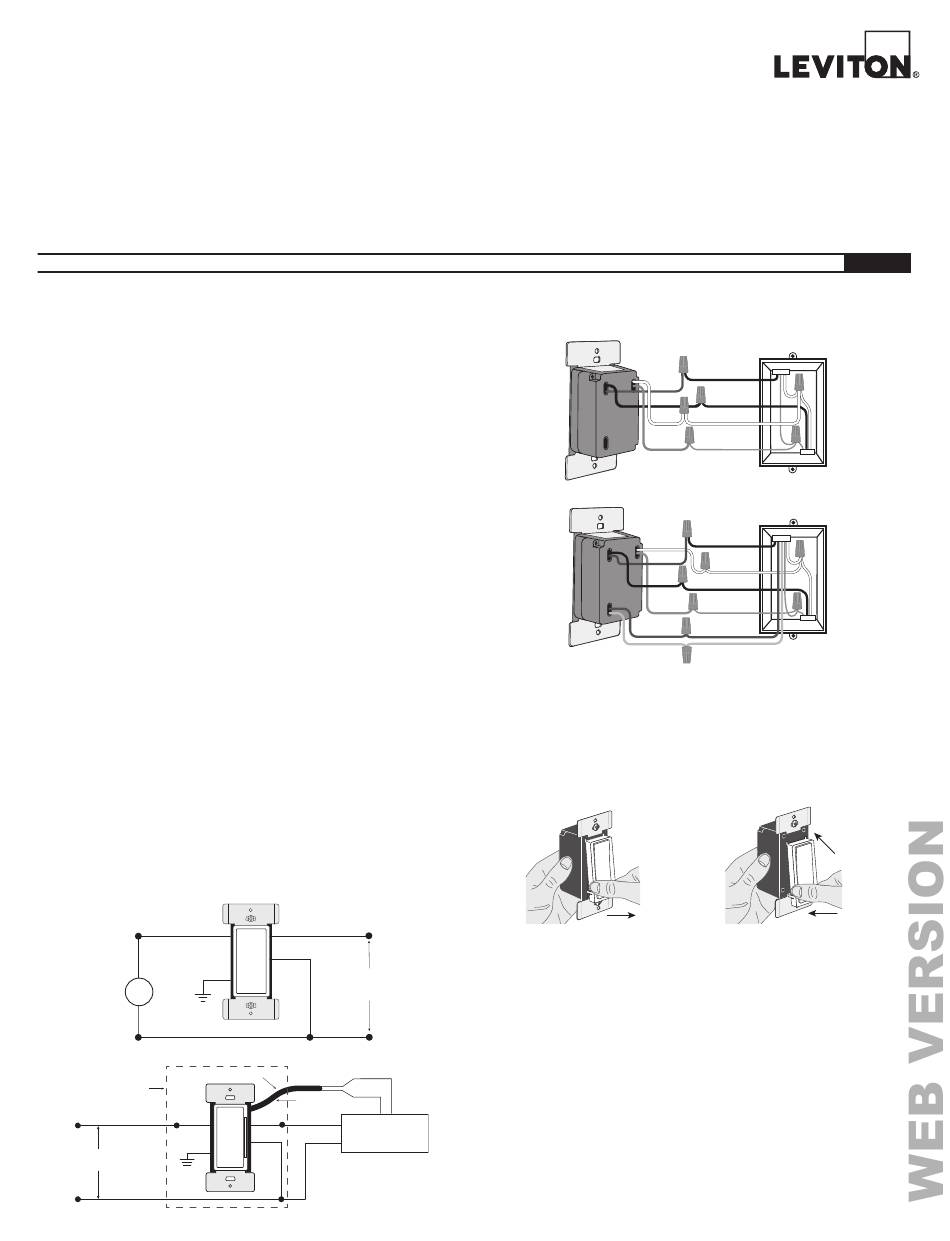

When room controller is also powering load:
1.
Strip 3/4 in. and connect as per wiring diagram.
Ensure wires are firmly attached and there is no exposed copper.
Switch DL05S
Blue
Black
Load
Green
Ground
White
Dimmer DL057
Electrical Box
Hot (Black) Black
Line
Green
Ground
Neutral (White)
Cat. No. DL057-D0Z, Ratings: 120-277V AC, 0-10V
Cat. No. DL057-30Z, Ratings: 347V AC, 0-10V
Cat. No. DL05S-D0Z, Ratings: 120-277V AC, Switch
INSTALLATION INSTRUCTIONS
TM RF SA app from
TM TM
enabled Android or iOS
Hot (Black)
White
Line
120/277VAC,
50/60Hz.
Neutral (White)
Violet
Connectors
Pink
Sleeve
Blue
Black
0-10 VDC
White White Ballast/LED Driver
CAUTIONS:
• Use this device with copper or copper-clad wire only.
• For indoor applications only.
• To avoid damage to the product, DO NOT use disinfecting products, including
foggers, sprays or other types of atomized cleaning agents.
• DO NOT spray liquid onto the product.
• To clean, use a damp cloth with mild soap.
• SAVE THESE INSTRUCTIONS.
2.
Gently place the wires and your device into the wall box and attach
with screws provided.
TM
device.
3.
Restore power and test ON/OFF operation. Locator light should be ON
when switch power is turned OFF.
4.
If desired, change faceplate color.
5.
Install Decora wallplate.
To release, push sides.
PK-A3300-10-00-2C
Switch DL05S
Load
Blue
Line (Hot)
Black
Neutral
White
Green Ground
Dimmer DL057
Load
White
Blue
Neutral
Black
Line (Hot)
Green Ground
Violet
Pink
Line up and press in to attach.
ENGLISH
