Leviton DRKDN-U Series Installation Instructions

GreenMax
®

WARNINGS

• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT BREAKER OR
FUSE AND TEST THAT POWER IS OFF BEFORE WIRING!

Description

The DRC Wi-Fi Room Controller is designed to be used to coordinate and control multiple Intellect
Wi-Fi network for coordination with other GreenMax
of the system can be configured to meet the specific needs of the end user and their application. An initial configuration can be created without any special tools using only the room
controller and installed devices within the room. System refinements can be made using the Leviton GreenMax
TM
iOS device.

Pre-Requisites

NOTE: For connection to Wi-Fi network and smartphone
NOTE: For connection to Intellect & LuminaRF
1.
Requires standard device backbox.
2.
May be multi-ganged.
3.
Decora faceplate purchased separately.
4.
Each room requires at least one room controller, other keypads may be used
as remote keypads.

Installation

1.
TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER at circuit breaker or fuse
and test that power is off before wiring!
2.
Remove 3/4 in. of insulation from each wire lead and connect per diagram. After all
connections have been made, ensure that all wire connectors are firmly attached and
there is no exposed copper.
3.
Gently place wires and device into wall box and secure with mounting screws.
4.
Install Decora ® wallplate. Installation is complete.
* NOTE: This device accepts Decora
If screw plates are used, remove the four tabs at the corners of the mounting strap to avoid
interference with the wallplate.
Hot (Black)
BK
Line
120-277VAC, 50/60 Hz
WH
Neutral (White)
DRC
® TM
DRC devices. It provides all energy management functionality both as required by code and as desired by the user. All aspects

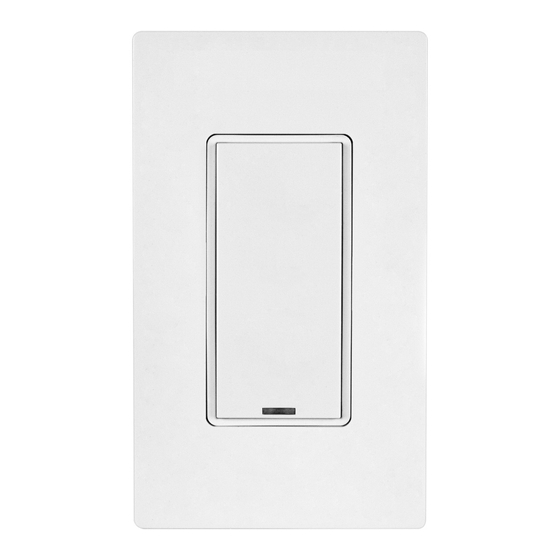

DRKDN-U1W
(one button)
TM devices
®
wallplates (both types - screwless and with screws).
®
TM Wi-Fi Room Controller
Cat. No. DRKDN-Uxx
120-277 VAC, 50/60 Hz

CAUTIONS

• To be installed and/or used in accordance with appropriate electrical
codes and regulations.
• If you are unsure about any part of these instructions, consult an electrician.
• Use this device with copper or copper clad wire only.
• For indoor applications only.
• Save these instructions.
INSTALLATION INSTRUCTIONS
TM fixtures and sensors within a room, as well as connected to the system
DRKDN-U2W DRKDN-U4W
(two buttons) (four buttons)
Input Voltage/
Frequency
Input Current Max
Input Current
Standby Power
IP Rating
Network Connections
Operating
Temperature
Storage Temperature

Color Change and Button Kits

NOTE: Buttons and wallplates can be custom engraved to your specifications.
Contact Leviton for availability and order details. To install a color change kit:
1.
Squeeze the sides of the button frame to release snap tabs and remove.
2.
Install new buttons and wallplate.
* Remove tabs if
using screw type
wallplate
Squeeze sides
to release
® TM
DRC app from your smartphone or other Wi-Fi enabled Android
DRKDN-U8W
(eight buttons)

SPECIFICATIONS

120-277VAC, 30mA Max, 50/60Hz
250mA
< 0.5W
IP30
Network 1: Wi-Fi – as client to another access point, or, as an access
point for direct connection using the Leviton GreenMax
Network 2: 2.4"GHz Wireless Mesh for connection to compatible
Intellect, LuminaRF, or Zigbee devices
0-40°C
-20-85°C
Line up tabs and
press in side to
attach
DI-000-DRKDN-00A
ENGLISH
TM
or
® TM
DRC app.
Factory default button
