1116 WIRELESS RELAY OUTPUT
Installation Guide

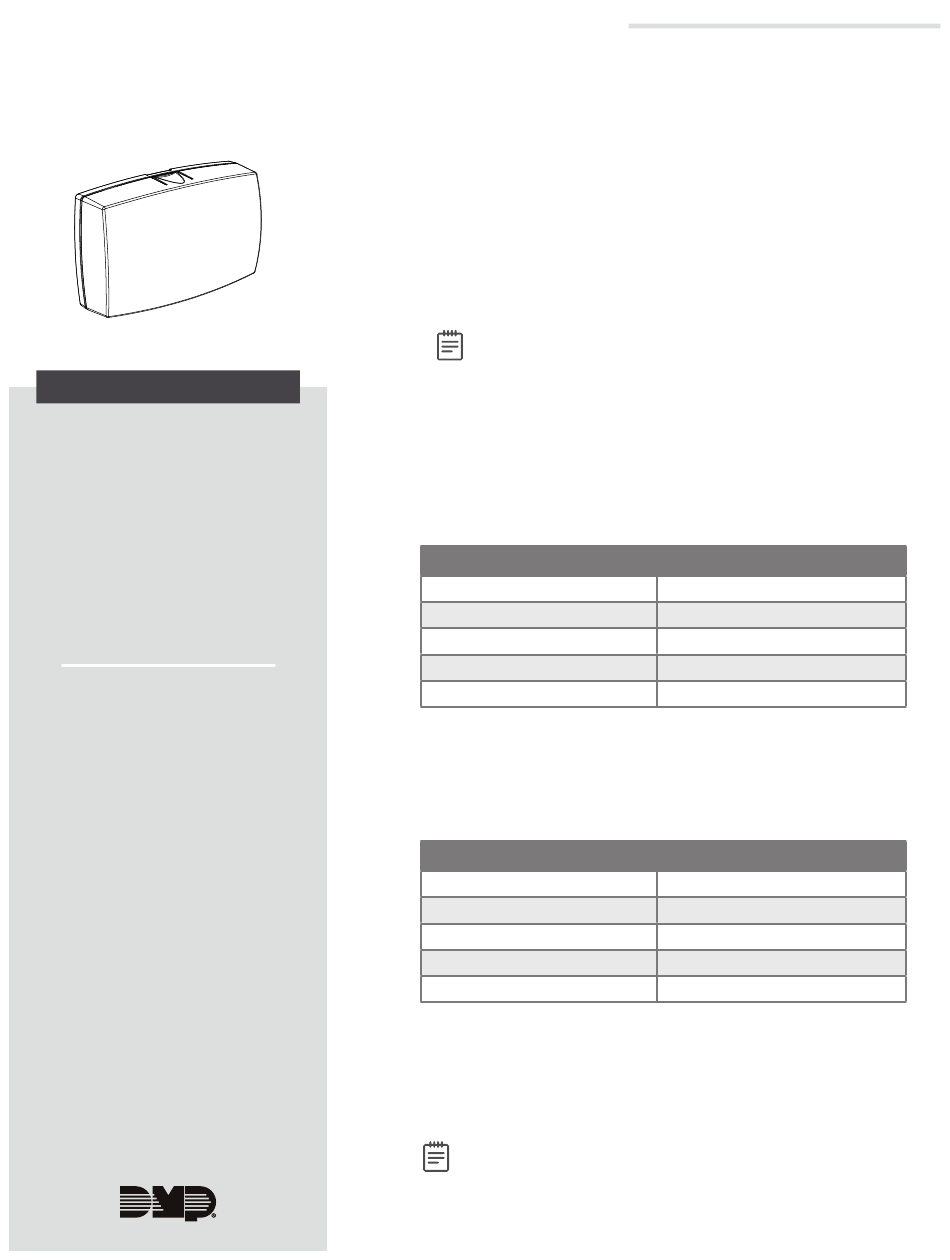

Figure 1: 1116
DESCRIPTION
The 1116 Wireless Relay Output
provides a Form C (SPDT) dry
relay contact rated for 1 Amp at 30
VDC. Regardless of the state of the
relay, the 1116 operates on constant
minimal standby current. The 1116
relay can be controlled from a
DMP panel output programmed to
respond to a variety of conditions
such as armed area annunciation,
ambush alarm, burglary alarm, exit
timer, entry timer, schedules, or
communication failure.
What is Included?
1116 Wireless Relay Output
3 V Lithium CR123A battery
Hardware pack
1
PROGRAM THE PANEL
Refer to the panel programming guide as needed.
1.
In OUTPUT INFO or OUTPUT SETUP, enter the OUTPUT
number.
2.
Enter the OUTPUT NAME.
Enter the eight-digit SERIAL# and press CMD.
3.
Enter the SUPRVSN TIME and press CMD.
4.
5.
Press the back arrow when OUTPUT NO: displays.
6.
Press CMD until STOP displays and then press any select
area to save and exit programming.
Note: For wireless output troubles to display at a keypad on
an XR Series system, the keypad address must be specified
at the AUX 1 ZONES (Auxiliary 1 Zones) option in the Status
List programming menu. See the XR Series Programming
Guide (LT-1232) for more information.
Program Slow Response
Use the following output numbers for your device to indicate whether
the wireless device responds within 15 seconds to trip the output
(slow response). Programming the 1116 as a slow response output can
increase battery life. See last page for battery life expectancy.
Panel
XTLplus (LT-1434)
XTLtouch (LT-1789)
XR Series (LT-1232)
XT30/XT50 (LT-0981)
XT75 (LT-2894)
Program Fast Response
Use the following output numbers for your device to indicate whether
the wireless device responds within 1 second to trip the output (fast
response). Programming the 1116 as a fast response output can
decrease battery life. See last page for battery life expectancy.
Panel
XTLplus (LT-1434)
XTLtouch (LT-1789)
XR Series (LT-1232)
XT30/XT50 (LT-0981)
XT75 (LT-2894)
Supervision Reset
Supervision time is reset under the following circumstances:
A receiver is installed, powered down, and powered up
The panel is reset
Programming is complete
Note: If the receiver has been powered down for more than
one hour, the device may take up to an additional hour to
send a supervision message unless tripped, tampered, or
powered up. This operation extends battery life. A missing
message may display on the keypad until the supervision
message is sent.
Output Numbers
51-54
51-54
450-474
31-34
450-474
Output Numbers
61-64
61-64
480-499
41-44
480-499
