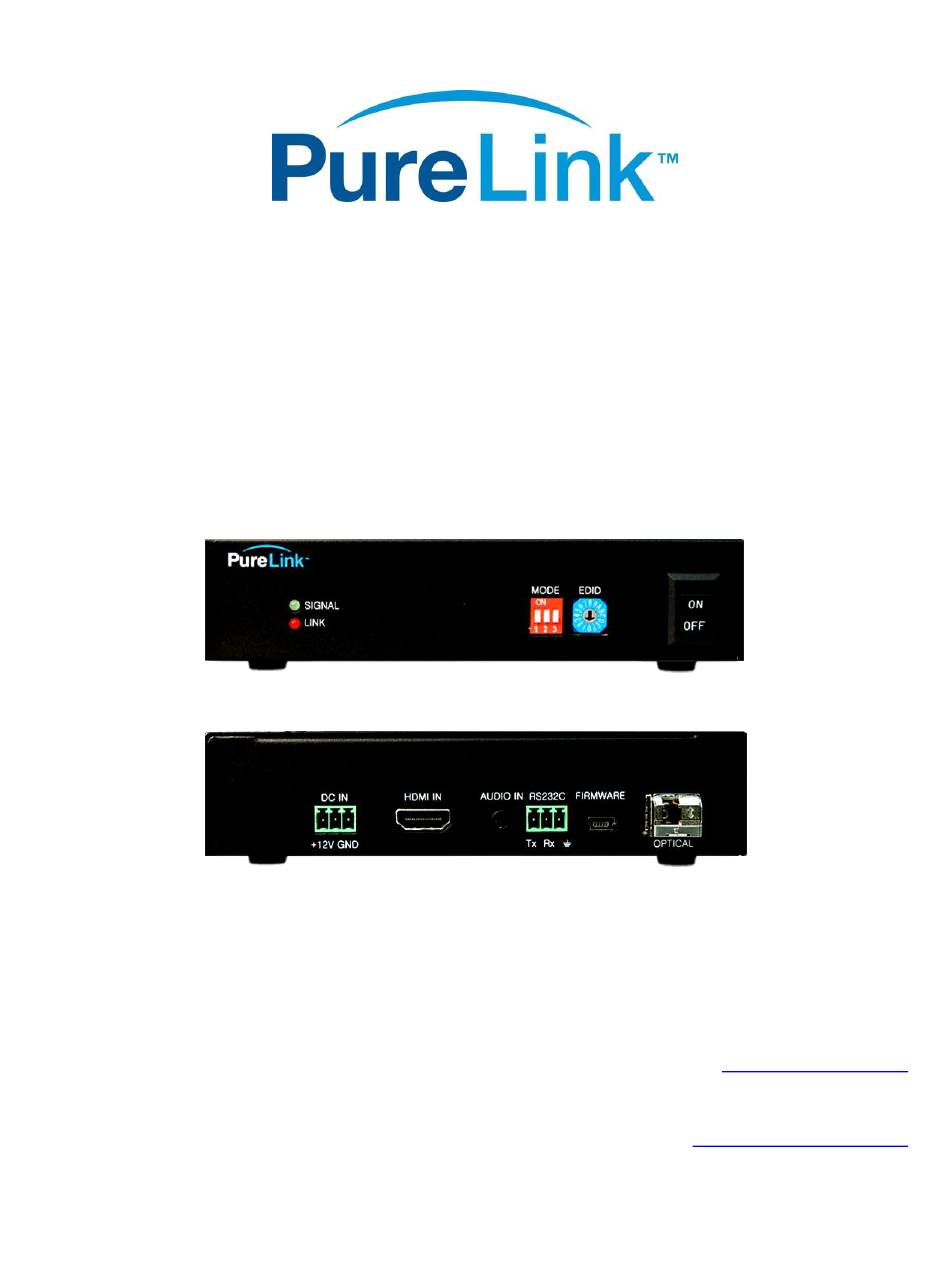

- Page 1 Media Axis™ 4K/60 Fiber Optic Extenders USER MANUAL PureLink 22-10 State Rt. 208 Fair Lawn, NJ 07410 USA Tel: +1.201.488.3232 Fax: +1.201.621.6118 E-mail: sales@purelinkav.com For order support, please contact your local dealer. For technical support, please contact us at support@purelinkav.com.
-
Page 2: Table Of Contents
Table of Contents Safety Precautions ......................... 3 Product Introduction ......................4 Features ..........................4 Specifications ........................5 MAX-FT101 Extender Transmitter ..........................5 MAX-FR102 Extender Receiver ............................8 Operation and Reliability Specification ........................10 Installation .......................... 11 Package Contents ................................ 11 Environments ................................ -
Page 3: Safety Precautions
Safety Precautions For optimum performance and safety, please read these instructions carefully before connecting, operating, or adjusting this product. Please keep this manual for future reference. 1. This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shook, lightning strikes, etc. -
Page 4: Product Introduction
4K/60 4:4:4 resolutions, and 7.1 Channel Dolby TrueHD & DTS-HD Master Audio. Auto-EDID (EDID Library, Emulation) PureLink's EDID library and emulation feature failsafe EDID capture & storage to provide constant and continuous EDID for source devices. Integrated Noise-cancellation and Error-correct Logic Prevents damage caused by Electrical Noise for both input and output ports. -
Page 5: Specifications

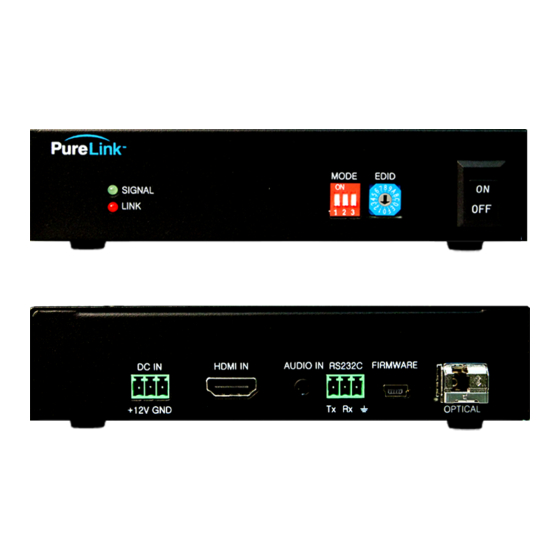

Specifications MAX-FT101 Extender Transmitter Front Connection Ports: 1. SIGNAL LED: Video signal presence indicator 2. LINK LED: Connection signal to MAX-FI or MAX-FR102 3. MODE S/W (EDID save): EDID save 4. EDID select S/W: EDID library function selection rotary switch 5. - Page 6 MAX-FT101 Technical Specifications Connector Types (1) HDMI [Type A Female] (1) 3.5mm stereo audio port (1) 1LC optical connector (1) 3-pin phoenix connector [RS-232] (1) mini USB [firmware] (1) 3-pin phoenix connector [12V power] Input Signal Type HDMI & analog stereo w/Deep Color, 3D, & 4K Output Signal Fiber w/Deep Color, 3D, &...
- Page 7 Analog Video Signal Supported Resolution - 640*480 60Hz - 1024*768 60Hz - 720*480p 60Hz - 640*480 72Hz - 1024*768 70Hz - 720*576p 50Hz - 640*480 75Hz - 1024*768 75Hz - 1280*720p 60Hz - 640*480 85Hz - 1024*768 85Hz - 1280*720p 50Hz - 800*600 56Hz - 1280*1024 60Hz - 1920*1080i 60Hz...
-
Page 8: Max-Fr102 Extender Receiver
MAX-FR102 Extender Receiver Front Connection Ports: 1. LCD Display: 16*2 LCD display 2. ▲▼◀▶: Menu navigation buttons 3. MENU: Menu and Enter button 4. EXIT: Cancel and Exit button 5. Power S/W: Power On/Off switch Back Connection Ports: 6. DC IN: DC 12V Power port 7. - Page 9 MAX-FR102 Technical Specifications Connector Types (1) HDMI [Type A Female] (1) 3.5mm analog stereo audio (1) 1LC optical connector (1) 3-pin phoenix connector [RS-232] (1) mini USB [firmware] (1) 3-pin phoenix connector [12V power] Input Signal Type Fiber w/Deep Color, 3D, & 4K Output Signal HDMI &...
-
Page 10: Operation And Reliability Specification
Scaling Receiver (MAX-FR102) Supported Output Resolution - Auto Time Set - 1280*720p 50Hz - 3840*2160p 50Hz - 1024*768p 60Hz - 1920*1080p 50Hz - 3840*2160p 60Hz - 1280*1024p 60Hz - 1920*1080p 59Hz - 1440*1050p 60Hz - 1920*1080p 60Hz - 1680*1050p 60Hz - 2560*1080p 50Hz - 1600*1200p 60Hz - 2560*1080p 60Hz... -
Page 11: Installation
Installation Package Contents The shipping contents consists of the followings: 1 x MAX-FT101 or MAX-FR102 ▶ 3pin Phoenix Connector for RS-232C ▶ ▶ DC 12V Power Supply with Power Cord 1 x USB Cable for Firmware Update ▶ ▶ User's Manual Environments For installation environments, we recommend the following conditions: •... -
Page 12: Installation And Setup
Installation and Setup Installation Connection Instruction 1. Turn off both the video source and the display before connecting any cables 2. Connect LC terminated fiber optic cable between transmitter and receiver 3. Connect HDMI cable between the source and the transmitter 4. - Page 13 Menu To access the menu of the MAX-FR102, press the MENU button. One of the following functions can be selected by pressing the UP, DOWN, and then MENU(Enter) to select on the front panel: 1. Output Time – Select Output Resolution 2.
- Page 14 The AUTO timing setting adjusts to the displays default/best resolution and will send video with the appropriate resolution accordingly. (For example, if a display can only accept up to 3840x2160 60Hz, and the source is sending a 1920x1080p 60Hz signal, it will automatically upscale to 3840x2160 60Hz. If a display can only accept up to 1920x1080p 60Hz, but the source is sending a 3820x2160 60Hz signal, it will automatically downscale to 1920x1080p 60Hz.) Bypass mode will receive and send the resolution without any alteration.
- Page 15 5. RS232 Set Set the Baud Rate to one of the following: • 115200 • 4800 • 9600 • 19200 • 38400 • 57600 *Default setting is set to 115200. 6. Power Save Set between the following power saving settings: •...
-
Page 16: Control
Control Scaling Receiver's Output resolution can be set via the front panel control button or serial command from the Media Axis. OS: Output Extender Scaler Timing Select The "OS" is an initiation command for Output Extender Scaler timing selection. The characters and numbers that follow the "OS"... -
Page 17: Cable Termination
Cable Termination Connector Pin Assignment DC Input Part Number Pin No. Description Remark VCC( DC12V) ECH350R-03 RS-232 Part Number Pin No. Description Remark ECH350R-03 DVI-D Input & Output Part Number Pin No. Description Remark TMDS DATA 2M TMDS DATA 2P TMDS DATA 2/4 Shield DVI-D 29pin TMDS DATA 4M(N.C) - Page 18 TMDS DATA 1M TMDS DATA 1P TMDS DATA 1/3 Shield TMDS DATA 3M(N.C) TMDS DATA 3P(N.C) Hot Plug Detect TMDS DATA 0M TMDS DATA 0P TMDS DATA 0/5 Shield TMDS DATA 5M(N.C) TMDS DATA 5P(N.C) TMDS DATA Clock Shield TMDS Clock P TMDS Clock M HDMI Input &...
- Page 19 TMDS DATA 1 Shield TMDS DATA 1M TMDS DATA 0P TMDS DATA 0 Shield TMDS DATA 0M TMDS Clock P TMDS Clock Shield TMDS Clock M RESERVED DDC Clock DDC DATA Hot Plug Detect MEDIA AXIS™ FIBER OPTIC EXTENDERS USER MANUAL VERSION 1.4...
-
Page 20: Edid
EDID Media Axis Extenders provide an Auto EDID management system; an easy and fail-safe way to handle EDID, via the EDID library system and EDID emulation. What's EDID? Extended Display Identification Data (EDID) is an information set that digital display provides to describe its capabilities to a video source. -
Page 21: Warranty & Customer Service
TERMS & CONDITIONS PureLink shall repair or replace the Product if it develops a material fault during the period of warranty, on condition that i) the Product has only been subject to normal use in a domestic or commercial... - Page 22 On any products returned and accepted with an RMA number, return freight charges following repair of items under warranty shall be paid by PureLink, shipping by the standard ground carrier of its choice. ADVANCE WARRANTY REPLACEMENTS PureLink’s advance replacement service offers a Replacement Unit upon request - free of charge for eligible products purchased less than one (1) year of the warranty claim and with a 25% exchange fee for products purchased more than one (1) year prior to the warranty claim.
