Technical Specifications; Electricity Supply - UR FOG FAST 02 Installation And Use Manual

6

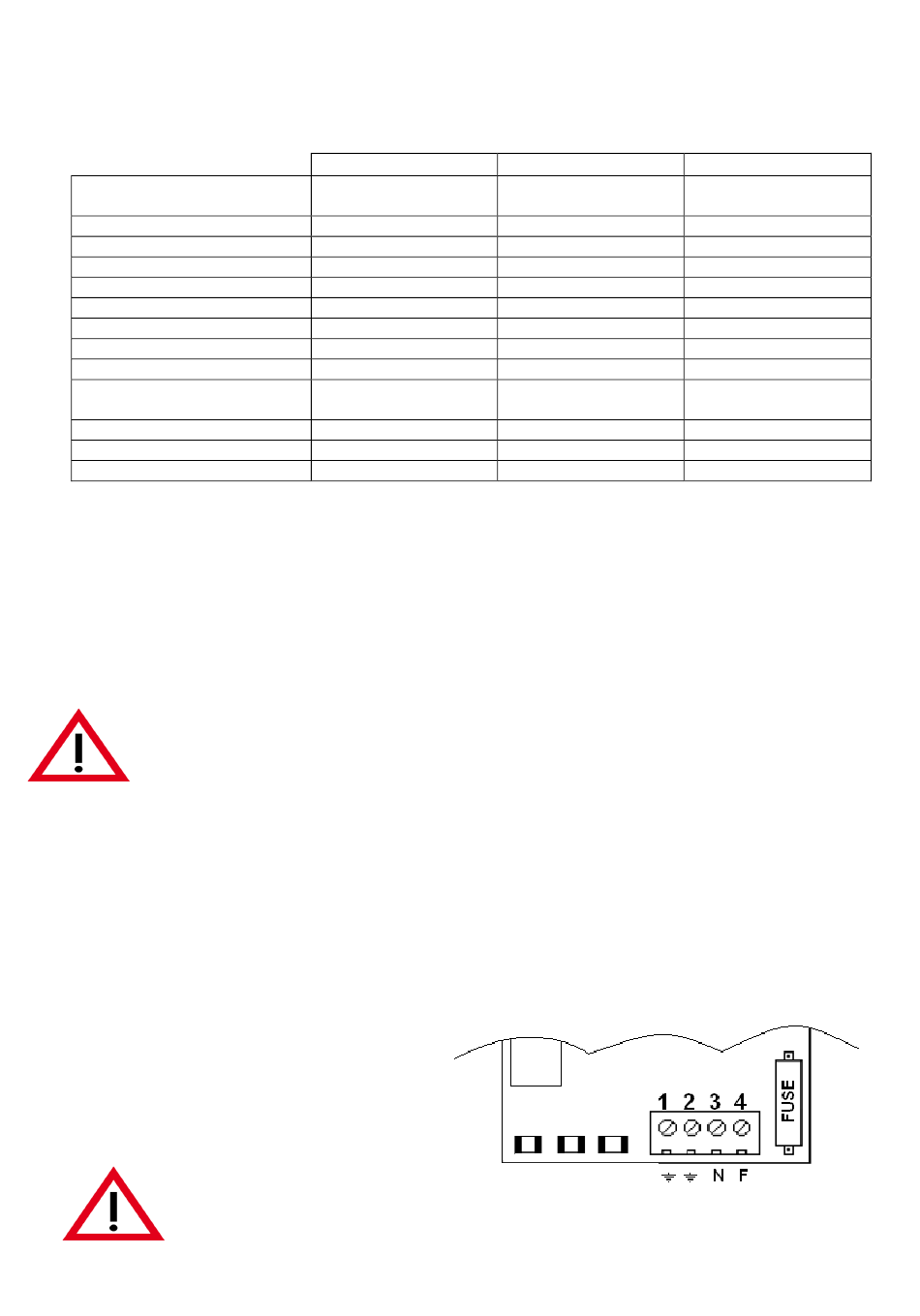

TECHNICAL SPECIFICATIONS

Weight without cylinders and
battery
Fog emission in a single shoot
Total emission capacity
Cyliders capacity
Work time without main power
Thermocouples
Max power on heating system
Heating time
Average power consumption
Maximum consume at 12V
Average batteries lifetime
Door anti tampering
Anti-tear off or anti-shift

7 ELECTRICITY SUPPLY

Power 220V supplies energy only to the heating system. Electronic card and the motors of the cylinders are
supllied from the alarm system and batteries.
The heating element is of 1KW, at the very beginning power consumption is about 500W and in some
minutes it goes down reaching average consumption which is about 40W - 60W.
Do not use: inverter or UPS unless you have the certainty that they generate a proper sine
wave, but not rebuilt.
- The max current to be considered for the system is 4A
- The connection to the electricity grid 230V must be performed by a qualified technician.
- Connect the equipment to the electricity grid only after you have completed the installation.
- It is necessary to connect the ground terminal.
PLEASE NOTE THAT, AS ALL POWERED EQUIPMENT FROM THE SUPPLY REQUIRING INSTALLATION,
IT IS SUBJECT TO COMPLIANCE RULES OF THE COUNTRY IN WHICH IT IS INSTALLED
For section and types of wires, fuses, suitability of materials to installation sites etc..
1 Ground connection for heat exchanger and cabinet
2 Ground connection
3 Neutral 220V
4 Phase 220V
Installation and use manual models FAST 02 e FAST 03
FAST A 03 1C TS
10 Kg
300 m³
600 m³
1 x 400 ml
2 hours 30 minutes
2
500W
40 minutes
40W
230 mA after shooting
60 mA stand-by
12 months with 10 shoots
Micro switch
Accelerometer
IF YOU NEED TO REPLACE THE FUSE, USE THE ONE WITH EXACTLY THE SAME
SPECIFICATIONS. IF ANY DOUBT, ASK YOUR AUTHORIZED DEALER
FAST A 03 2C TS
11 Kg
300 m³
1200 m³
2 x 400 ml
2 hours 30 minutes
2
500W
40 minutes
40W
230 mA after shooting
60 mA stand-by
12 months with 10 shoots
Micro switch
Accelerometer
rev 1.0.0 October 2013
FAST A 02 2C TS
14,7 Kg
600 m³
1500 m³
2 x 500ml
2 hours 30 minutes
2
500W
60 minutes
45W
230 mA after shooting
60 mA stand-by
12 months with 10 shoots
Micro switch
Accelerometer
Page 6 di 19
