After this time, the fog emission is instantaneous.
C
-

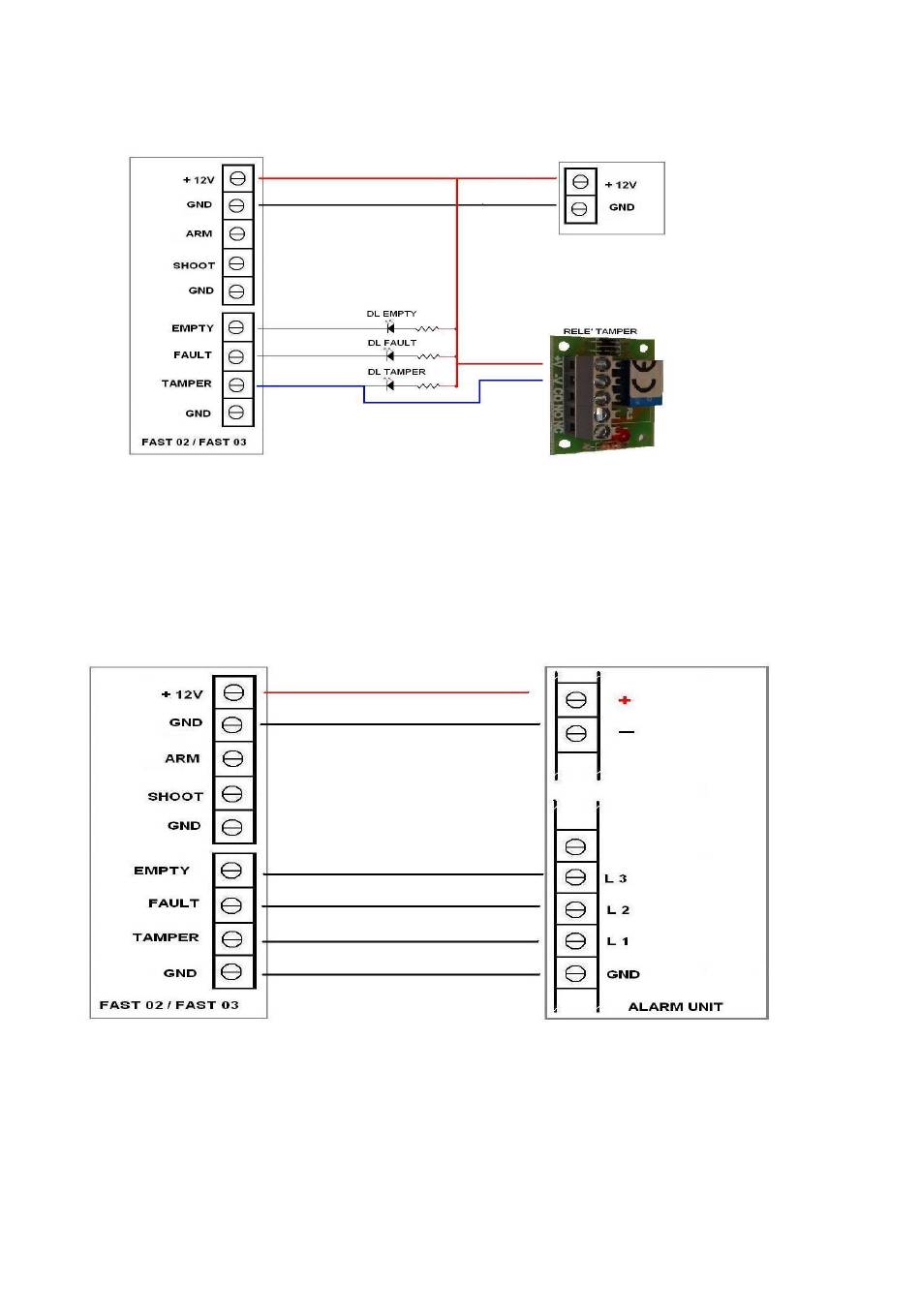

Example of outputs connection to drive LEDs or RELAY
when a cylinder is empty, DL EMPTY will switch on
when there is a fault DL FAULT will switch on
when you open the cylinders door, in addition to DL TAMPER the relay switch
D
-
Example of connection of UR Fog outputs with opened inputs of an alarm system
The UR Fog outputs are normally opened and connected with input zones of the alarm control panel normally
opened
According to the diagram above:
Installation and use manual models FAST 02 e FAST 03
power max applicable on the outputs 100mA
when there is an empty cylinder the entrance area L3 will detect an alarm;
if a failure occurs or the batteries run down, L2 detects an alarm;
when you open the door of the cylinders, L1 detects an alarm
rev 1.0.0 October 2013 Page 10 di 19
