SETTING SHOOTING TIME AND FOG FLOW DIRECTION

N.B.
Before opening side doors ensure that the control panel is provided in the "service", so that the opening of
the circuit "anti-sabotage or tamper" does not cause any shooting.
TIME TABLE RECCOMENDED FOR SHOOTING BASED ON m³ TO PROTECT
The time of shooting of the cylinders may vary depending on the environment temperature and on the used nozzle.
The table below is stated considering standard conditions.
m³ of fog Seconds of emission
15 - 30
30 - 60
45 - 90
60 - 120
75 - 150
90 - 170
105 - 190
120 - 210
135 - 230
150 - 250
m³ of fog Seconds of emission
20 - 30
30 - 60
60 - 90
72 – 114
88 - 138
The first value indicates in m³ the area to protect, the second one indicates the seconds of emission.
The value in m³ may vary depending on the density that you desire to obtain.
With the first value you obtain the maximum of density suggested to guarantee the absence of any residual.
With the second value you obtain the minimum of density suggested (almost 50 cm), a higher visibility makes the fog
useless.
In places where a slight residue is not a problem, it is possible to increase the time of shooting.
We remind you that more fog is released more time it takes to have again visibility.
High levels of fog over suggested limits may leave residue.
Any residue usually goes away by itself within 24/48 hours, otherwise, being soluble in water, it is enough to use a wet
cloth for cleaning.
If you desire to obtain 1 meter visibility average after 60 seconds, as specified by the standard EN50131-8, and is used
as reference by all manufacturers of Fog generators, the second value in m³ of fog has to be redoubled.
Installation and use manual models FAST 02 e FAST 03
TABLE OF SHOOTING FAST 02
m³ of fog
1 165 - 270
2 180 - 290
3 195 - 310
4 210 - 330
5 225 - 350
6 240 - 370
7 255 - 390
8 270 - 410
9 285 - 430
10 300 - 450
TABLE OF SHOOTING FAST 03
m³ of fog
1 102 – 158
2 116 – 178
3 130 - 190
4 144 - 210
5 156 - 230

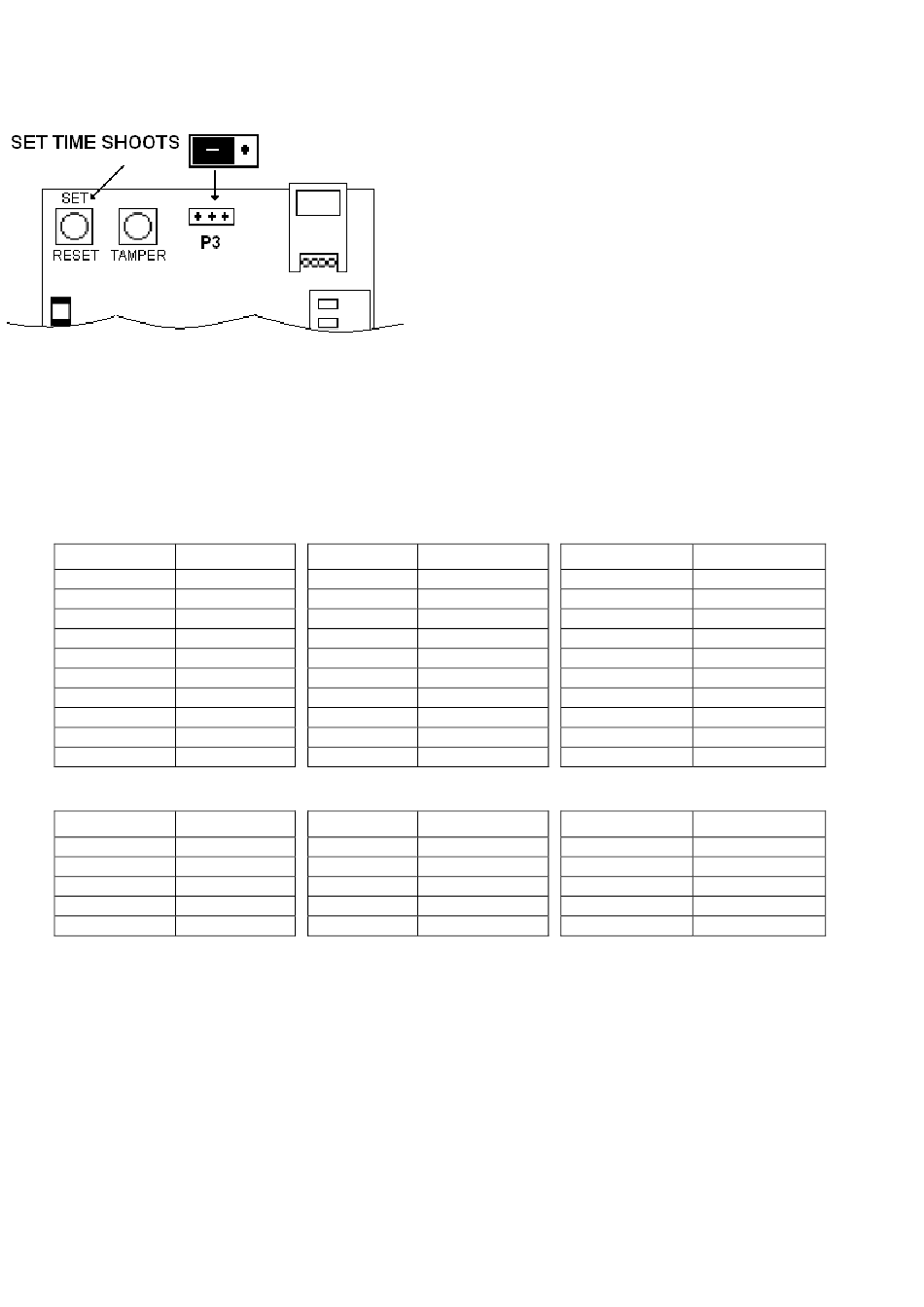

For the setting of the shooting time, after opening the
cylinders compartment door, at the top of the PCB, you must
put the jumper in position P3 SET TIME SHOOTS.
Holding down the button S1 "SET" all leds on the front will
flash and each flash is equivalent to one second.
If you press again the button, the shooting time is not added to
the one previously set, but will restart from zero.
.
Seconds of emission m³ of fog
11 315 - 465
12 330 - 490
13 345 - 505
14 360 - 520
15 375 - 535
16 390 - 550
17 405 - 565
18 420 - 590
19 435 - 605
20 450 - 620
.
Seconds of emission m³ of fog
6 168 – 245
7 180 – 260
8 190 - 275
9 200 – 290
10 210 - 305
rev 1.0.0 October 2013
Seconds of emission
21
22
23
24
25
26
27
28
29
30
Seconds of emission
11
12
13
14
15
