77X INSTALLATION & OPERATION MANUAL
771/772/773/774 MODELS
DEFROST
VALVE & SOLENOID
TEMPERATURE
EVAPORATOR
PRESSURE
EVAPORATOR
EVAPORATOR
EVAPORATOR
EXPANSION
VALVE & SOLENOID

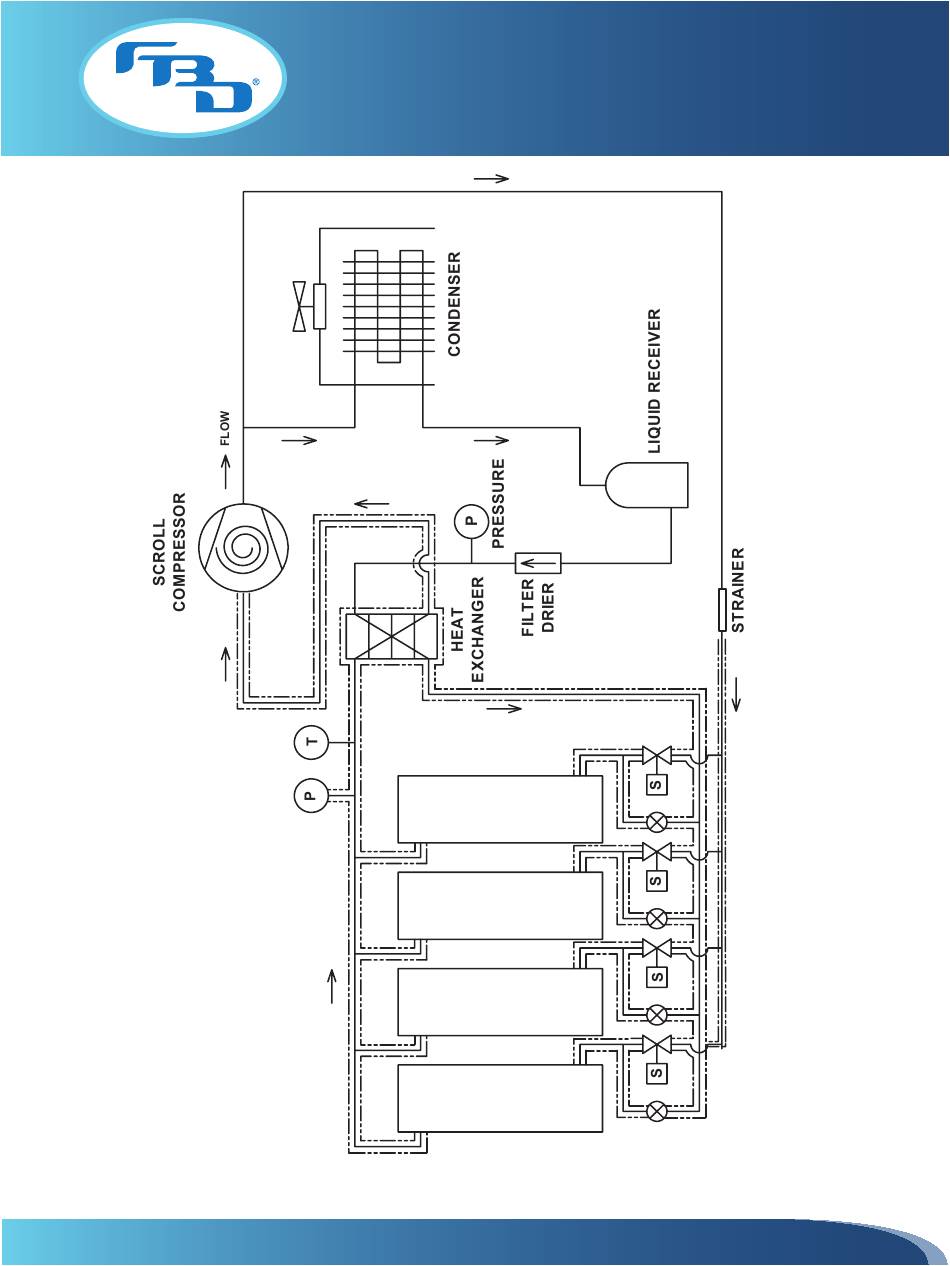

Figure 11.16 Refrigeration Schematic for 774 Standard Air-Cooled Dispenser
