77X INSTALLATION & OPERATION MANUAL

771/772/773/774 MODELS

11.7 Refrigeration Schematic Diagrams (Air-Cooled Dispensers)

Figure 11.15 shows the refrigeration schematic for the standard 773 air-cooled dispenser and is representative of the

standard 772 with the exception of the number of barrels. Figure 11.16 shows the diagram for the standard 774 air-

cooled dispenser.

TEMPERATURE

PRESSURE

NOTE: DIAGRAM

SHOWN FOR 773

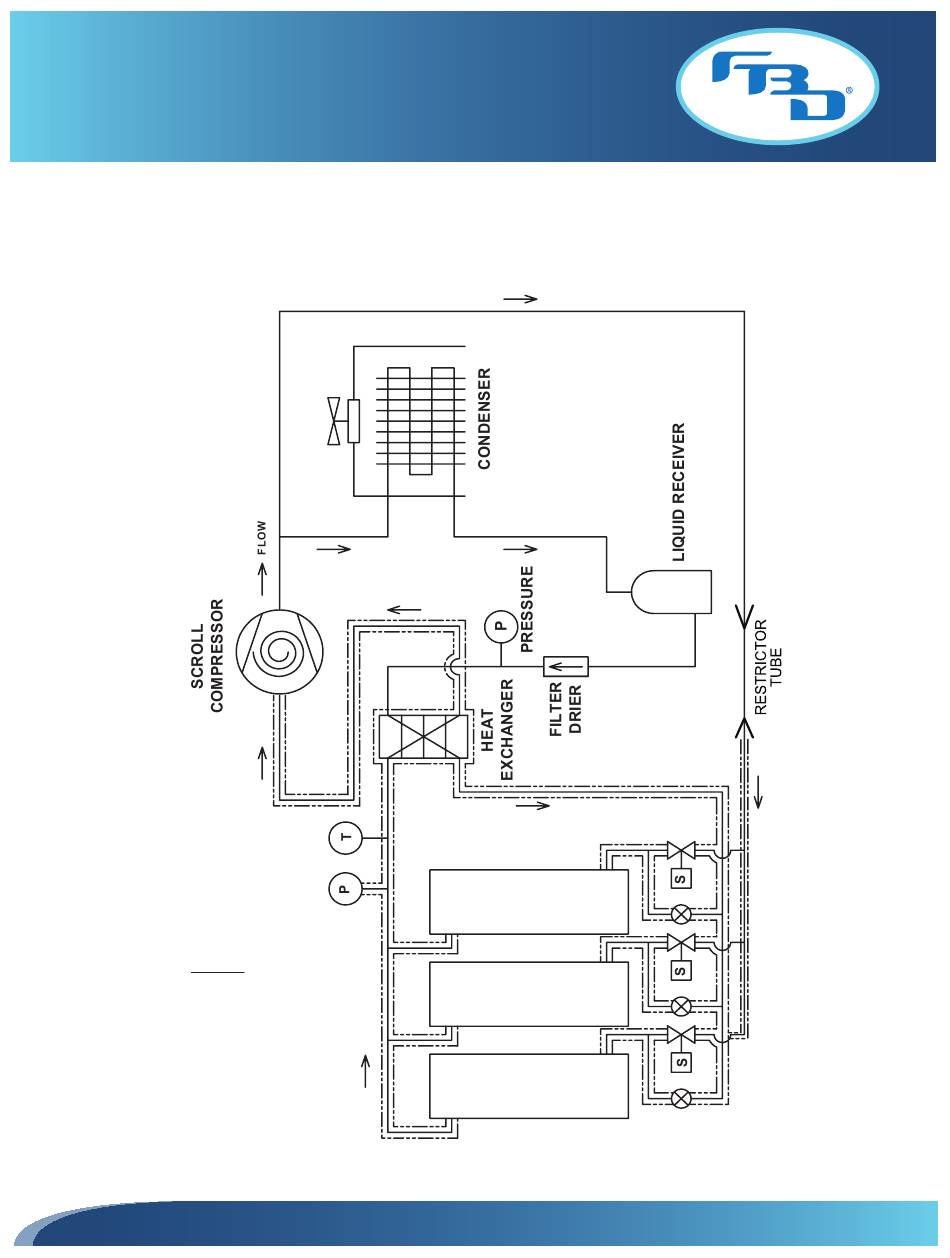

Figure 11.15 Refrigeration Schematic for 772 and 773 Standard Air-Cooled Dispensers

DEFROST

VALVE &SOLENOID

EVAPORATOR

EXPANSION

VALVE & SOLENOID
