FBD 372 Multi-Flavor Quick Reference Operation Manual

MULTI-FLAVOR QUICK REFERENCE OPERATION GUIDE FOR STORE OPERATORS
NOTE: This guide is not intended to replace the information in the operational manual; read entire manual before operating dispenser.

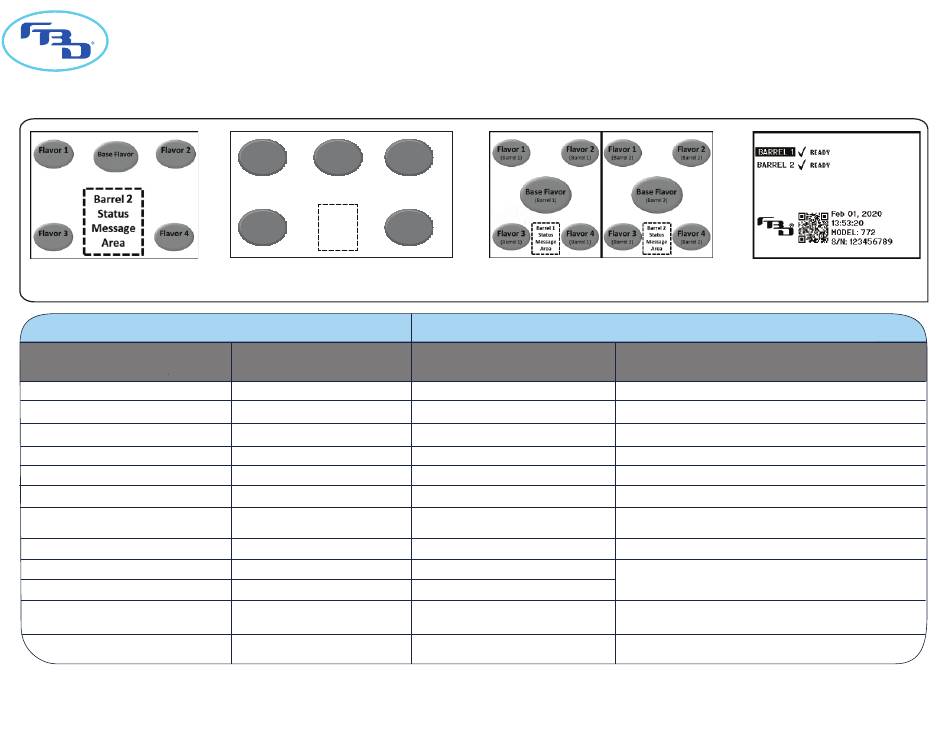

TOUCHSCREEN AND LCD DISPLAYS
372 Multi-Flavor
5" Screen
TOUCHSCREEN AND LCD ERROR CODES
DOOR TOUCHSCREEN
MESSAGE
Sold Out (overlaid on flavor)
Base Flavor Sold Out
Out of CO
2
Out of Nitrogen
Out of Air
Out of Water
Defrosting, Not Ready
Freezing, Please Wait...
Barrel Sleeping
Barrel Off
NOT READY
Door Comm Error
Display is off.
Unit not running
* For installations with syrup in a backroom, a separate gas supply may be connected that is not monitored by the dispenser. If error message appears but syrup is
not empty, verify the gas supply to the syrup pumps is sufficient.
TOLL-FREE CUSTOMER SERVICE 1-866-323-2777 or www.fbdfrozen.com
Flavor 1 Base Flavor Flavor 2
Barrel
Status
Flavor 3 Flavor 4
Message
Area
771 Multi-Flavor
13.3" Screen
LCD DISPLAY
Out of flavor syrup.
FLAVOR OUT
Out of base syrup.
SYRUP OUT
Out of CO
CO2 OUT
NITROGEN OUT
Out of N
AIR OUT
Out of compressed air.
WATER OUT
Out of H
DEFROSTING Barrel defrosting.
FREEZING
Barrel in first freeze after defrost.
SLEEPING Barrel is in "sleep" mode.
OFF
Barrel is turned off.
Door is not communicating with
Door Communication Error
unit's main control board.
Unit is not plugged in or
No message on display.
breaker has been tripped.
772 Multi-Flavor
13.3" Screen
SOLUTIONS
CAUSE
Replace empty flavor syrup container (BIB).*
Replace empty base syrup container (BIB).*
/ Low CO pressure.
Restore supply of CO
2 2
/ Low N pressure.
Restore supply of Nitrogen.
2 2
Restore supply of compressed air.
O/Low H O pressure. Check water supply.
2 2
Wait for defrost cycle to complete.
Wait until unit completes first freeze down cycle.
Select barrel then select "ON."
Contact service provider or FBD Techincal Support.
Plug in unit or reset circuit breaker. Then restart unit.
LCD Display
SOLUTION
.
2
