  • Page 1 RTDTemp2000 Data Logger Manual...

  • Page 2: Table Of Contents

    4.2 Changing the number, type, and size of channels viewed ..9 4.3 Checking the memory status ..........10 4.4 Checking power status ............10 4.5 Changing the contrast ............10 Section 5: RTDTemp2000 Function Reference ........11 5.1 Main Screen ................11 5.2 Status Menu ................11 5.3 Statistics Menu ...............12 5.4 Units..................13...
  • Page 3 MadgeTech RTDTemp2000 6.7 Channel Statistics: ..............21 6.8 Type Statistics: ................22 6.9 Statistics Information Screen: ..........22 6.10 Unit Selection Menu: ............23 6.11 Device Confi guration Menu: ..........23 6.12 Adjust Visibility: ..............24 6.13 Display Confi guration: ............24 6.14 Power Modes Screen: ............25 6.15 Display Update Mode Screen: ..........26...

  • Page 4: Section 1: Device Safety

    CAUTION: DEVICE MUST BE USED ONLY IN A MANNER CONSISTENT WITH THIS MANUAL. NOTICE: WHEN 230VAC SUPPLY USED, MADGETECH SPECIFIES USE OF AC SUPPLY PART # T35-9-100R-3 MANUFACTURED BY ENG ELECTRIC. THIS SUPPLY IS AVAILABLE FROM MADGETECH. 1.1 Model information • Model: RTDTemp2000 •...
  • Page 5 9V lithium battery included, user replaceable; optional AC adapter, 7-24 VDC, 100mA. For 230 VAC operation use AC supply T35-9-100 R-3 made by ENG Electric (Available from MadgeTech). Battery Life: 30 days typical @ 1 min reading rate with continuous LCD and no backlight usage.

  • Page 6: Warranty

    In the event that a MadgeTech product is found to be defec- tive, MadgeTech will repair or replace the product at its sole discretion. Such repair or replacement shall be the sole remedy of this warranty.

  • Page 7: Section 2: Device Overview

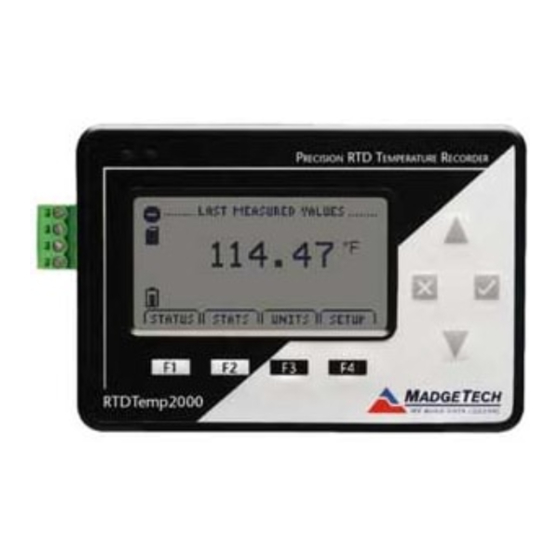

    MadgeTech RTDTemp2000 Section 2: Device Overview Power Jack Indicators Communication LCD Screen Jack Up Key Okay Key Black anodized Down Key aluminum enclosure Function Keys Cancel Key Page 6...

  • Page 8: Section 3: Status Indicator Icons

    Empty Full The memory status icons indicate the amount of memory left for data storage. If the RTDTemp2000 is in wraparound mode, the memory status icon will always indicate empty. 3.3 Running Indicator Indicates that the RTDTemp2000 is taking readings. The icons cycle periodically.

  • Page 9: Delay Start Indicator

    3.5 Wait Icon The wait icon indicates that the device is busy. 3.6 Stop Icon Indicates that the RTDTemp2000 is not currently taking readings. 3.7 External Power Icon Indicates that the RTDTemp2000 is powered by an external source.

  • Page 10: Section 4: Front Panel Overview

    Section 4: Front Panel Overview 4.1 Changing the display units The RTDTemp2000 comes with factory default display units of °C for the external probe channel. These units can be easily changed by pressing the F3 button in the main screen and then selecting F1 for external probe. After selecting F1, the available units can be scrolled through by either pressing the F1 key repeatedly or using the UP and DOWN keys.

  • Page 11: Checking The Memory Status

    Main Screen -> F4 -> F2 -> F4 -> F4 4.5 Changing the Contrast The RTDTemp2000’s LCD screen contrast values can be changed in two ways. One method is outlined in the Function Reference Guide. A faster, simpler way involves simultaneously pressing the CANCEL and UP or DOWN button repeatedly in any screen.

  • Page 12: Section 5: Rtdtemp2000 Function Reference

    Section 5: RTDTemp2000 Function Reference 5.1 Main Screen The main screen of the RTDTemp2000 features a real-time display of most recently measured external probe channel data. At the bottom of the main screen are tabs corresponding to each of the four function keys. These tabs are used to access the four main function menus of the RTDTemp2000: status, statistics, units, and setup.

  • Page 13: Statistics Menu

    5.3.ii Viewing statistics by type The RTDTemp2000’s Statistics Menu also provides the option to view statis- tics by type. This can be done by pressing F2 while in the Statistics Menu.

  • Page 14: Units

    Selecting ok (either by pressing the OK button or the F4 key) accepts and confi rms the unit selection. Pressing the CANCEL key cancels the unit chang- ing action and reverts to the previously selected units. The RTDTemp2000 offers most commonly used units.
  • Page 15 LED mode as well as the options to change their function. Display The RTDTemp2000’s LCD screen display has options to be either on continuously or turn off automatically after 5 minutes of inactivity. This option can be changed by fi rst pressing the F1 key to highlight the display parameter confi...
  • Page 16 On this screen the battery type is displayed and should be changed by the user based on whether a Lithium or Alkaline battery is used in the RTDTemp2000. This can be changed by fi rst pressing the F1 button to highlight the type parameter confi guration tab.
  • Page 17 The Minimum Device Range screen can be accessed by pressing the F1 key while viewing the Device Information screen. This display indicates the minimum values which the RTDTemp2000 is capable of detecting and logging. Values on this screen cannot be modifi ed.
  • Page 18 Data Logger Manual 5.5.iii.e Firmware Version Firmware details can be viewed by pressing the F2 key while viewing the Device Version screens. These details include the fi rmware version number, date and time of fi rmware creation, and checksum. Page 17...

  • Page 19: Section 6: Rtdtemp2000 Screen Descriptions

    MadgeTech RTDTemp2000 Section 6: RTDTemp2000 Screen Descriptions Section 6: RTDTemp2000 Screen Descriptions 6.1 Main Screen: Displays last measured values. F1 = STATUS: goes to status screens F2 = STATS: shows statistics menu F3 = UNITS: goes to unit selection screen F4 = SETUP: shows device confi...

  • Page 20: Status Screens (Memory Status)

    Data Logger Manual F4 = MORE: displays the second status screen CANCEL = returns to main screen OK = toggles to memory status screen UP = no function DOWN = no function 6.3 Status Screens (Memory Status): Displays information about the device’s memory capabilities including percent of memory available (memory left), number of readings taken so far (readings), max number of readings (max readings), and wrap.

  • Page 21: Status Screens (Time)

    MadgeTech RTDTemp2000 6.4 Status Screens (Date and Time): Displays current time and date as well as registered time and date and time zone information. For all status screens: F1 = RUN: displays run parameters screen F2 = MEM: displays memory status screen...

  • Page 22: Statistics Menu Screen

    Data Logger Manual 6.6 Statistics Menu Screen: Displays options available within the statistics menu. F1 = CHAN: goes to screen that sorts statistics by channel F2 = TYPE: goes to screen that sorts statistics by type F3 = INFO: goes to Statistics Information Screen F4 = EXIT: returns to main screen CANCEL = returns to main screen OK = returns to main screen...

  • Page 23: Type Statistics

    MadgeTech RTDTemp2000 6.8 Type Statistics: Displays statistics from the channel (External Probe) sorted by type (maximum recorded value, minimum recorded value, or average value). F1 = AVG: displays average recorded value for the channel F2 = MIN: displays minimum recorded value for the channel...

  • Page 24: Unit Selection Menu

    Data Logger Manual 6.10 Unit Selection Menu: Displays units currently being used for each channel F1 = PROBE: selects external probe channel for unit change F2 = no function F3 = no function F4 = OK: returns to Main Screen Note: unit selection can be changed by pressing the corresponding function key repeatedly or using the UP and DOWN arrows to select appropriate units.

  • Page 25: Adjust Visibility

    MadgeTech RTDTemp2000 6.12 Adjust Visibility: Displays options for changing the viewing of the channel on the main screen (either shows the channel or hides it.) F1 = PROBE: fi rst highlights and then changes the viewing options of the external probe channel...

  • Page 26: Power Modes Screen

    Data Logger Manual UP = when contrast or size parameter confi guration tab is highlighted in- creases value DOWN = when contrast or size parameter confi guration tab is highlighted increases decreases value 6.14 Power Modes Screen: Displays information regarding the devices different power modes including the display visibility, backlight options, and LED modes.

  • Page 27: Display Update Mode Screen

    MadgeTech RTDTemp2000 6.15 Display Update Mode Screen: Displays information regarding display refresh mode and refresh interval. F1 = MODE: fi rst highlights and then changes update mode (Auto: screen refreshes periodically or Reading: refreshes only after a reading is taken) F2 = TIME: highlights time parameter so that refresh interval can be changed.

  • Page 28: Device Information Screens (Minimum Device Range)

    6.17 Device Information Screens (Minimum Device Range): Displays values indicating minimum external probe data detectable by the RTDTemp2000. For all Device Information Screens: F1 = MIN: shows Device Range (Minimum) F2 = MAX: shows Device Range (Maximum) screen...

  • Page 29: Device Information Screens (Device Version)

    MadgeTech RTDTemp2000 6.19 Device Information Screens (Device Version): Displays device version information. F1 = VERS: shows Device Version screen F2 = FIRM: shows Firmware Version screen F3 = MORE: shows Device Range (Minimum) screen F4 = EXIT: Returns to Device Confi guration Menu CANCEL = Returns to Device Confi...

  • Page 30: Calibration Information Screens (Calibration Date)

    Data Logger Manual 6.21 Calibration Information Screens (Calibration Date): Displays date of last calibration and due date of next calibration. For all Device Information Screens: F1 = DATE: no function F2 = PROBE: shows external probe calibration information F3 = no function F4 = EXIT: returns to Device Range (Minimum) screen CANCEL = Returns to Device Range (Minimum) screen OK = Toggles to Probe Calibration screen...

  • Page 31: Device Reset Screen (Hardware Reset)

    MadgeTech RTDTemp2000 6.23 Device Reset Screen (Hardware Reset): Displayed as notifi cation when a hardware reset has occurred. F1 = OK: accepts notifi cation and displays main screen F2 = no function F3 = no function F4 = no function CANCEL = no function OK = accepts notifi...

  • Page 32: Device Reset Screen (Power Interruption)

    Data Logger Manual 6.24 Device Reset Screen (Power Interruption): Displayed as notifi cation when power is interrupted during device operation. F1 = OK: accepts notifi cation and displays main screen F2 = no function F3 = no function F4 = no function CANCEL = no function OK = accepts notifi...

  • Page 33: Section 7: Computer Interface

    *WARNING: Install driver before connecting a device using a USB for the fi rst time. See the MadgeTech Data Logger Software manual for further information. Note: Most MadgeTech data loggers can use both IFC110 and IFC200 interface cables.

  • Page 34: Section 8: Wall Mounting

    Data Logger Manual Section 8: Wall Mounting Section 8: Wall Mounting Power Supply Cable Slot Page 33...

  • Page 35: Section 9: Maintenance

    The battery life is affected by battery type, ambient temperature, sample rate, sensor selection, offl oads and LCD display usage. The RTDTemp2000 has a battery status indicator on the LCD display. If the battery indication is low, or if the device seems to be inoperable, it is recommended that the battery be changed.

  • Page 36: Section 10: Terms And Conditions

    Section 10: Terms and Conditions Section 10: Terms and Conditions All products furnished by MadgeTech, Inc. (“Seller”) shall be in accordance with the following terms and conditions unless otherwise stated in writing: These Terms and Conditions (“Terms and Conditions”) govern (a) all sales quotations and sales of components, equipment, parts, and other products (“Product”) from, and (b) all service...

  • Page 37: Limitation Of Liability

    MadgeTech RTDTemp2000 CLAIMS ANY AND ALL OTHER REPRESENTATIONS AND WARRANTIES OF ANY KIND WHATSOEVER, WHETHER EXPRESSED, IMPLIED OR STATUTORY, INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, NONIN- FRINGEMENT OR ACCURACY, ADEQUACY OR COMPLETENESS OF DATA MEASUREMENT, WITH RESPECT TO ANY OF THE SELLER MANUFACTURED PRODUCTS, CONSUMABLES OR SOFT- WARE, OR ANY OF THE SELLER PROVIDED SERVICES.
