MadgeTech RTDTemp2000 Quick Start Manual

Part Number
Temperature Sensor
Temperature Range
Temperature Resolution
Calibrated Accuracy
Memory
Sample Rate
Required Interface Package
Typical Battery Life 1 year at 1 minute reading rate with display off, 30 days
typical with continuous LCD display use
Baud Rate
Operating Environment -20 to +60°C 0 to 95%RH (non-condensing)
Materials
Dimensions 4.8" x 3.3" x 1.25" (122mm x 84mm x 32mm)
Approvals
Battery Warning
WARNING: FIRE, EXPLOSION, AND SEVERE BURN HAZARD. DO NOT SHORT CIRCUIT, CHARGE,
FORCE OVER DISCHARGE, DISASSEMBLE, CRUSH, PENETRATE OR INCINERATE. BATTERY MAY
LEAK OR EXPLODE IF HEATED ABOVE 60°C (140°F).
Specifications subject to change.
See MadgeTech's terms and conditions at www.madgetech.com
MadgeTech, Inc.
PO Box 50
l
Phone 603.456.2011
www.madgetech.com
RTDTemp2000
100Ω Platinum RTD
-200 to +850°C
0.01°C
+0.05°C (-200 to +260°C)
+0.3°C (+260 to +850°C)
174,762
2 seconds up to 24 hours
IFC200
115,200
Black anodized aluminum
-
Warner, NH 03278
Fax 603.456.2012
l
info@madgetech.com
l
DOC-1150035-00 REV 10 2012.02.16

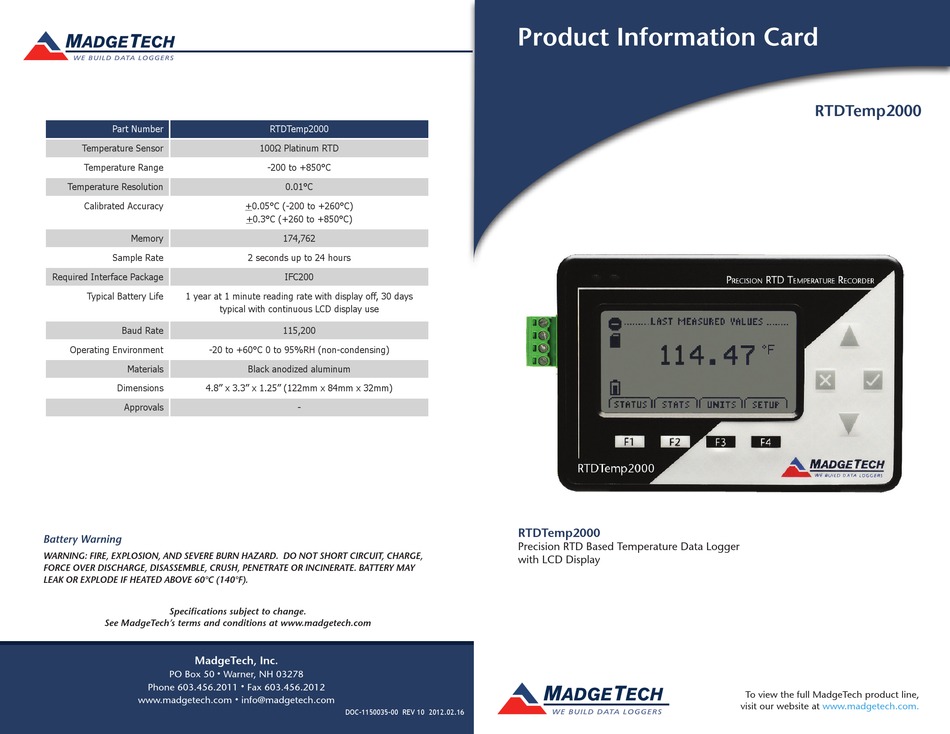

Product Information Card
RTDTemp2000
Precision RTD Based Temperature Data Logger
with LCD Display
RTDTemp2000
Red 485
Dark Blue Pantone 289
Light Blue 58% of Pantone 289
