1.3 Installation
The Pinhole Camera is designed for indoors. You can install the camera
lens behind a wall or the ceiling board. Note that the thickness of the wall

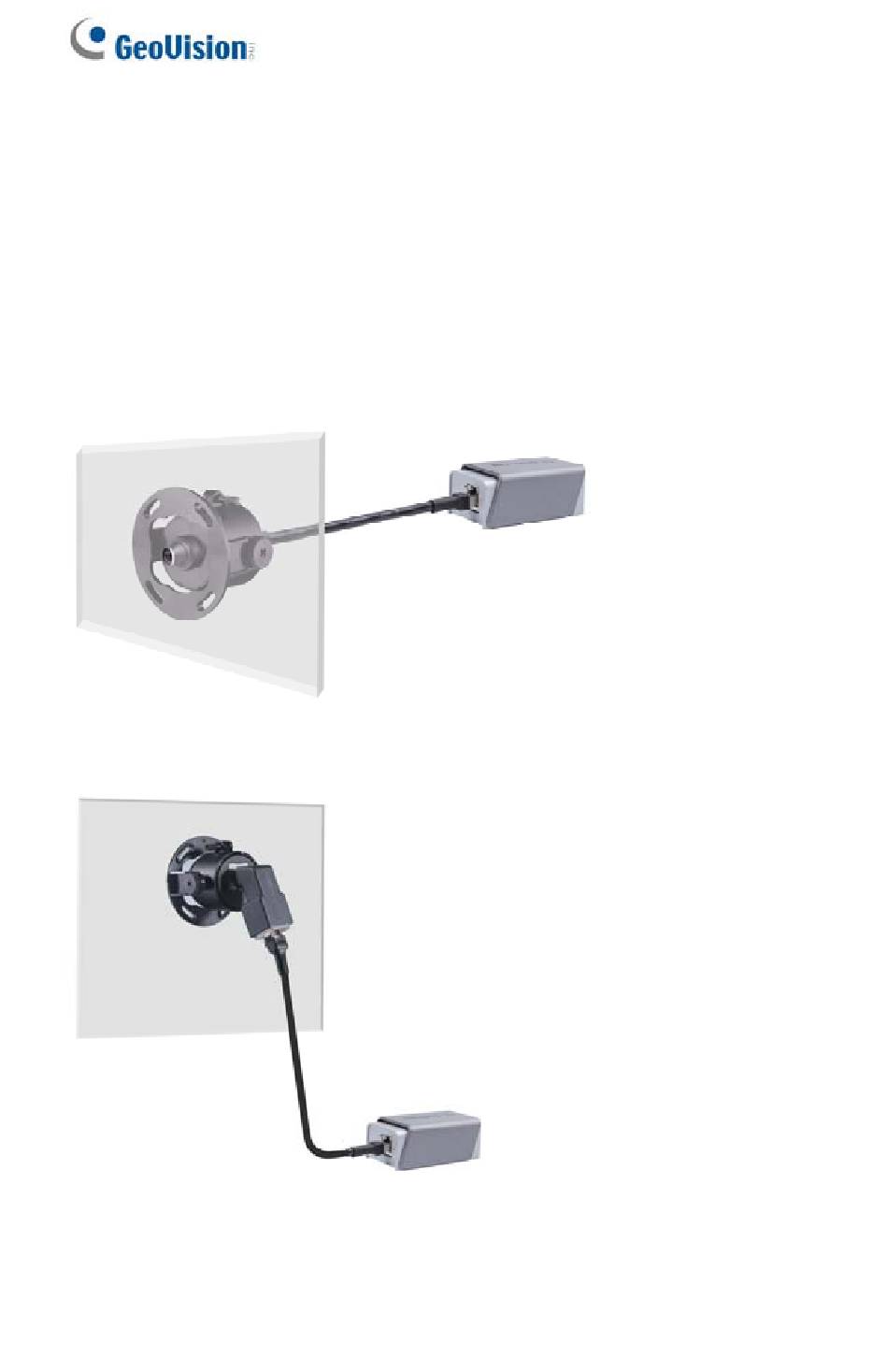

or ceiling board must be under 4 mm. There are two ways of installing the
camera as Figure 1-2 shows. With the supplied RJ12 connector, the
direction of the cable can be changed.
Figure 1-2
6
