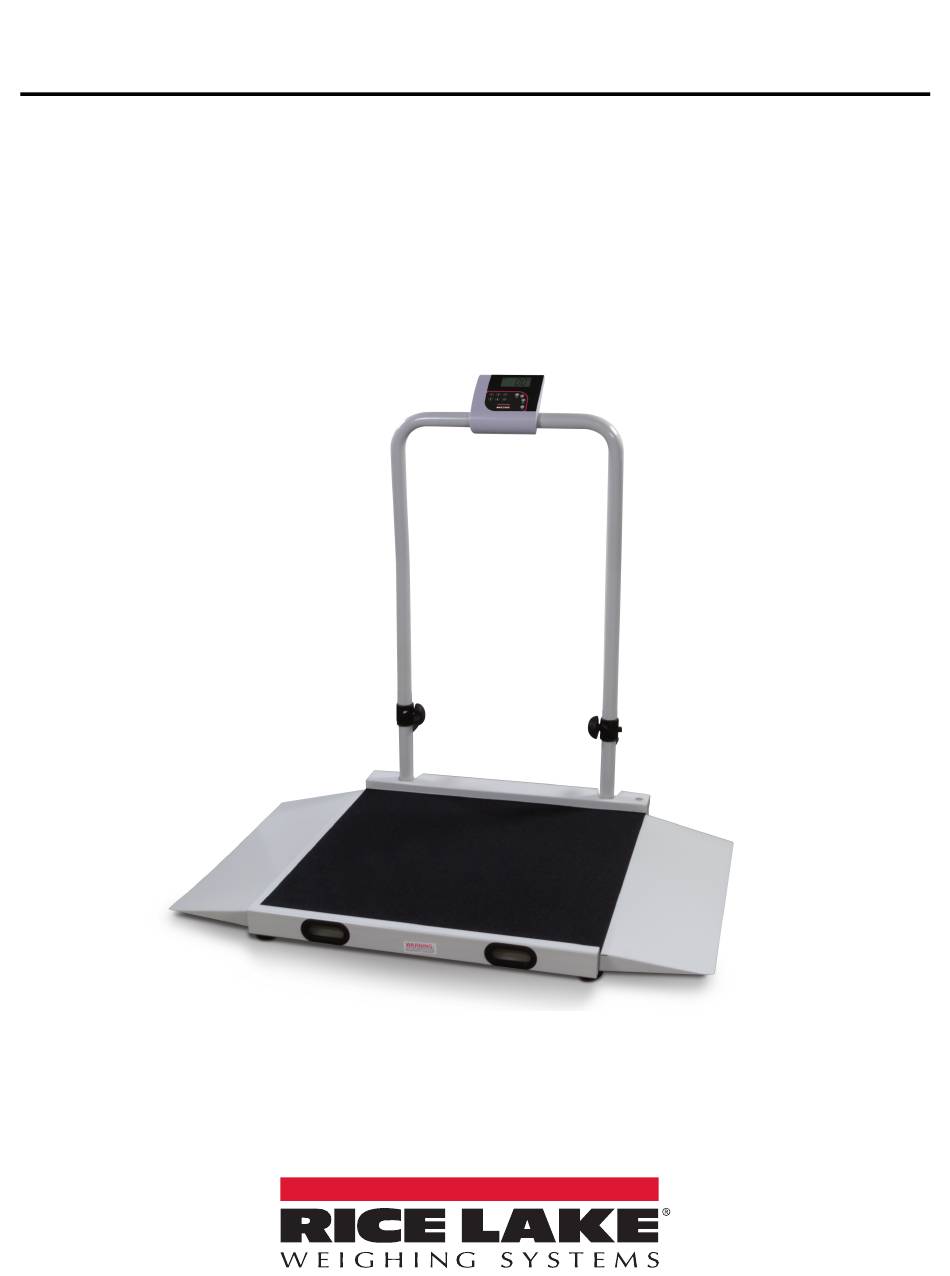

- Page 1 Digital Wheelchair Scale 350-10-3M Software Revision 11525 Operation Manual April 19, 2019 PN 194980...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
-
Page 5: Table Of Contents
6.0 Specifications ............... . . 14 Technical training seminars are available through Rice Lake Weighing Systems. - Page 6 350-10-3M Digital Wheelchair Scale Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars www.RiceLake.com Visit our website...
-
Page 7: Introduction
Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals. -
Page 8: Scale Assembly
Move the scale into the area where the weighing process will occur. Place the scale on a hard, level surface for the most accurate weighments. Placing the scale on thin carpeting is not recommended. 1. Locate the operation manual from inside the box and set aside as it will provide instructions on the proper 350-10-3M Digital Wheelchair Scale removal and set up. -
Page 9: Attaching The Feet To The Scale
Attaching the Feet to the Scale The 350-10-3M Digital Wheelchair Scale comes with four feet that must be attached to the scale base for proper operation. The four feet are located in the parts box in the original shipping box. Use the following steps to attach the feet to the scale. -
Page 10: Inserting Batteries
Use the optional 120 VAC or 230 VAC adapter (PN 133077) when power is available. The optional AC power adapter plugs into the back of the indicator. Rice Lake Weighing Systems offers optional AC adapters. Using an unauthorized adapter supplied by Rice Lake Weighing Systems voids all warranties. -
Page 11: Scale Operation
Scale Operation Scale Operation The Rice Lake Digital Wheelchair Scale display has 10 front panel keys, See Figure 2-1. Figure 2-1. Front Panel Display Keys Key Descriptions Key functions are described in Table 2-1. Name Function On/Off Powers the scale on or off... -
Page 12: Weighing
350-10-3M Digital Wheelchair Scale Weighing Use the following steps to weigh. 1. Press to turn on the scale. 0.0 prompts along with ZERO on the display. 2. When the patient steps on the scale the display shows the weight of the patient. The LOCK annunciator is on in the upper display and beeps to indicate the end of the weighing process. -
Page 13: Using The Body Mass Index (Bmi) Function
7. The BMI value and BMI annunciator is shown on the display. Press to return to the weighing mode or step off CLEAR the scale and the BMI function will be turned off. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 14: Rs-232 Communication
350-10-3M Digital Wheelchair Scale RS-232 Communication The 350-10-3M Digital Wheelchair Scale comes with an RS-232 port which enables weight data to be transmitted to other devices. The RS-232 cable with DB-9 connector (PN 100719) is available from Rice Lake Weighing Systems, See... -
Page 15: Usb Connection
RS-232 Communication USB Connection The Rice Lake Digital Wheelchair Scale has the capability of connecting to a PC using a USB connection and a USB cable (not included). That connection location is shown in Figure 3-1. USB Connection RS-232 Connection Load Cell Connection Figure 3-1. - Page 16 350-10-3M Digital Wheelchair Scale 7. Select No, not this time then select Next. Figure 3-3. No, Not This Time 8. Select Install the software automatically then select Next. Figure 3-4. Install The Software Automatically 9. Allow the driver to install.
- Page 17 Parpar and print the ticket. The following example tickets will print. Figure 3-8. Example Tickets A single print ticket has four spaces after “patient weight” and only one space between weight and lb in the examples Note shown above. © Rice Lake Weighing Systems ● All Rights Reserved...
-
Page 18: Troubleshooting And Testing
Check the load cell mechanical surroundings and ensure nothing is contacting the load cell and that the cables are properly welded Damaged load cell cable Replace load cell cable Table 4-1. Troubleshooting Table for the 350-10-3M Digital Wheelchair Scale www.RiceLake.com Visit our website... -
Page 19: Maintenance
Maintenance Maintenance The following section provides instructions for maintaining and cleaning the 350-10-3M Digital Wheelchair Scale. Basic Maintenance Before the first use of the scale and after periods of non-use, check the scale for proper operation and function. If the scale does not operate correctly, contact qualified service personnel. -
Page 20: Specifications
350-10-3M Digital Wheelchair Scale Specifications Power Input 120 VAC-9VDC-50Hz / 230 VAC-9VDC-50Hz Dimensions Platform Dimensions 48.5 in W x 29.5 in L x 3 in H Battery Type Power Consumption 6 AA size alkaline batteries Battery Use 25 hours continuous use; automatic power-off can be configured... - Page 22 Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319...
