Data Domain-Specific Installation

DD9500 and DD9800 systems

I/O module slot assignments

Data Domain DS60 Expansion Shelf Hardware Guide
84
Table 15 DD6300, DD6800 and DD9300 I/O module slot assignments (continued)
Slot Number DD6300
1 10GbE
2 Reserved
3 SAS
4 FC, Ethernet or
empty
5 FC, Ethernet or
empty
6 FC, Ethernet or
empty
7 Empty
In the rear of the system, the top section contains the 4 power supply units. In the
middle of the section, on the left, is serial number tag location. To the right of the
serial number tag location is the management module. The lower section contains the
NVRAM and the I/O modules numbered 0 through 11 from left to right.
The following figure shows the location of the NVRAM and I/O modules.

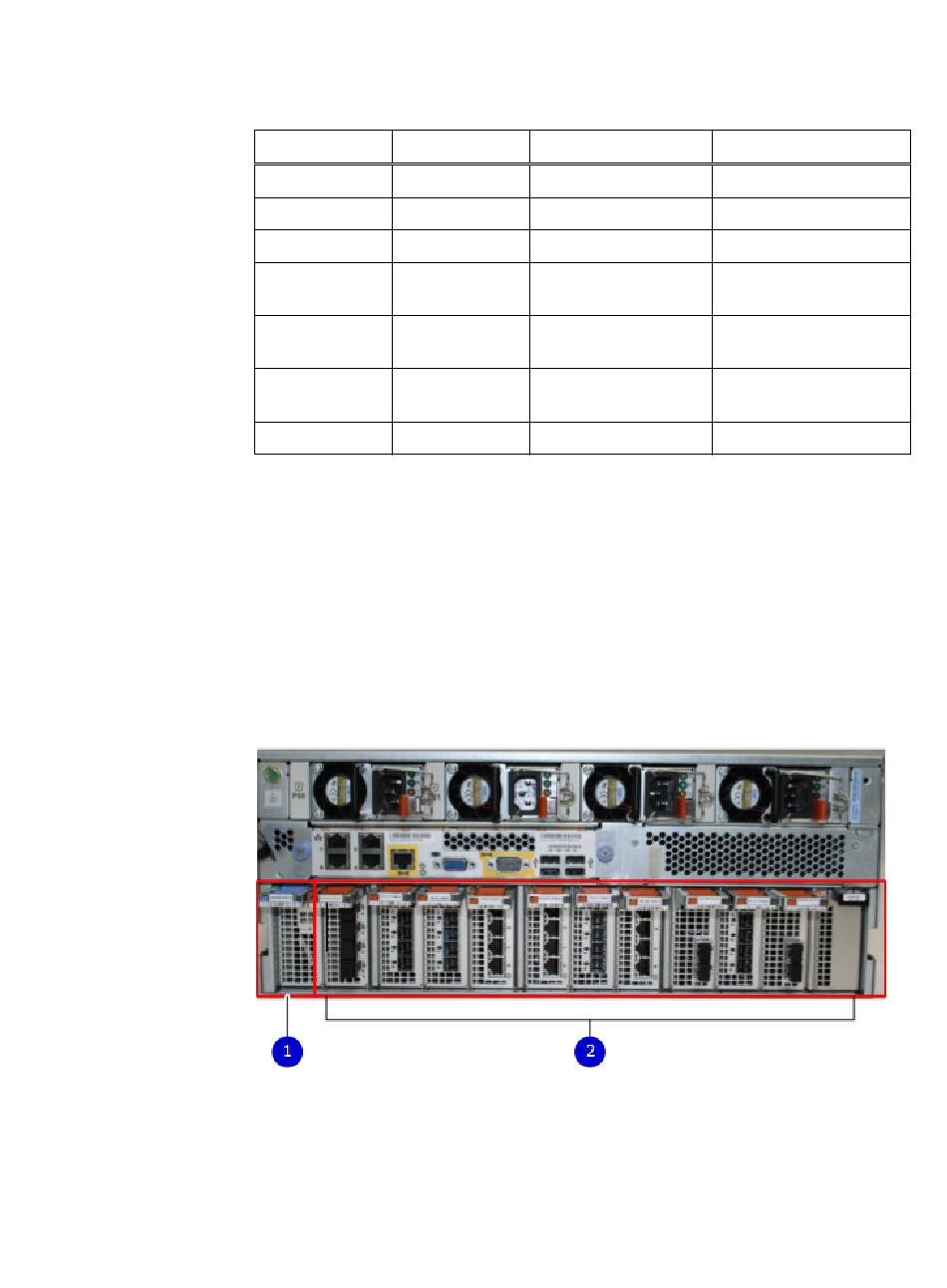

Figure 55 Location of NVRAM and I/O modules
1. NVRAM module—slot 0
2. I/O modules—slots 1 to 11 (See the I/O module slot assignments table.)
DD6800
10GbE
SAS
SAS
FC, Ethernet or empty
FC, Ethernet or empty
FC, Ethernet or empty
SAS
DD9300
10GbE
SAS
SAS
FC, Ethernet or empty
FC, Ethernet or empty
FC, Ethernet or empty
SAS
