Installing the Shelves

Expansion shelf cables

Data Domain DS60 Expansion Shelf Hardware Guide
18
Expansion shelves are connected to each other and to the Data Domain controller with
qualified cables. The expansion shelf can be connected to supported Data Domain
systems only by using SAS (serial-attached SCSI) cables. A Data Domain shelf with
qualified disks can be added as an expansion shelf if there are complete drive packs
(15 in a pack) in the correct position.
Note
Shelves for other Dell EMC product lines look identical. Check the product numbers
when unpacking.
DS60 cables
The DS60 shelves use cables with HD-mini-SAS connectors at both ends to connect
the shelves to the controllers that have SAS I/O modules, such as DD4200, DD4500,
DD6300, DD6800, DD7200, DD9300, DD9500, and DD9800 systems.
The DS60 connector is referred as the HD-mini-SAS connector and is same as the I/O
module connectors. These cables are available in 3M, 4M, and 5M lengths.
Use the appropriate length for the connection you are making. Refer to the specific
Installation and Configuration Guide of the shelves for the recommended cable
lengths:
Use the 3-meter cable in the same rack either to connect to a controller or shelf to
l
adjacent shelf.
Use a 3-meter, 4-meter, or 5-meter cable when a DS60 is in another rack.
l

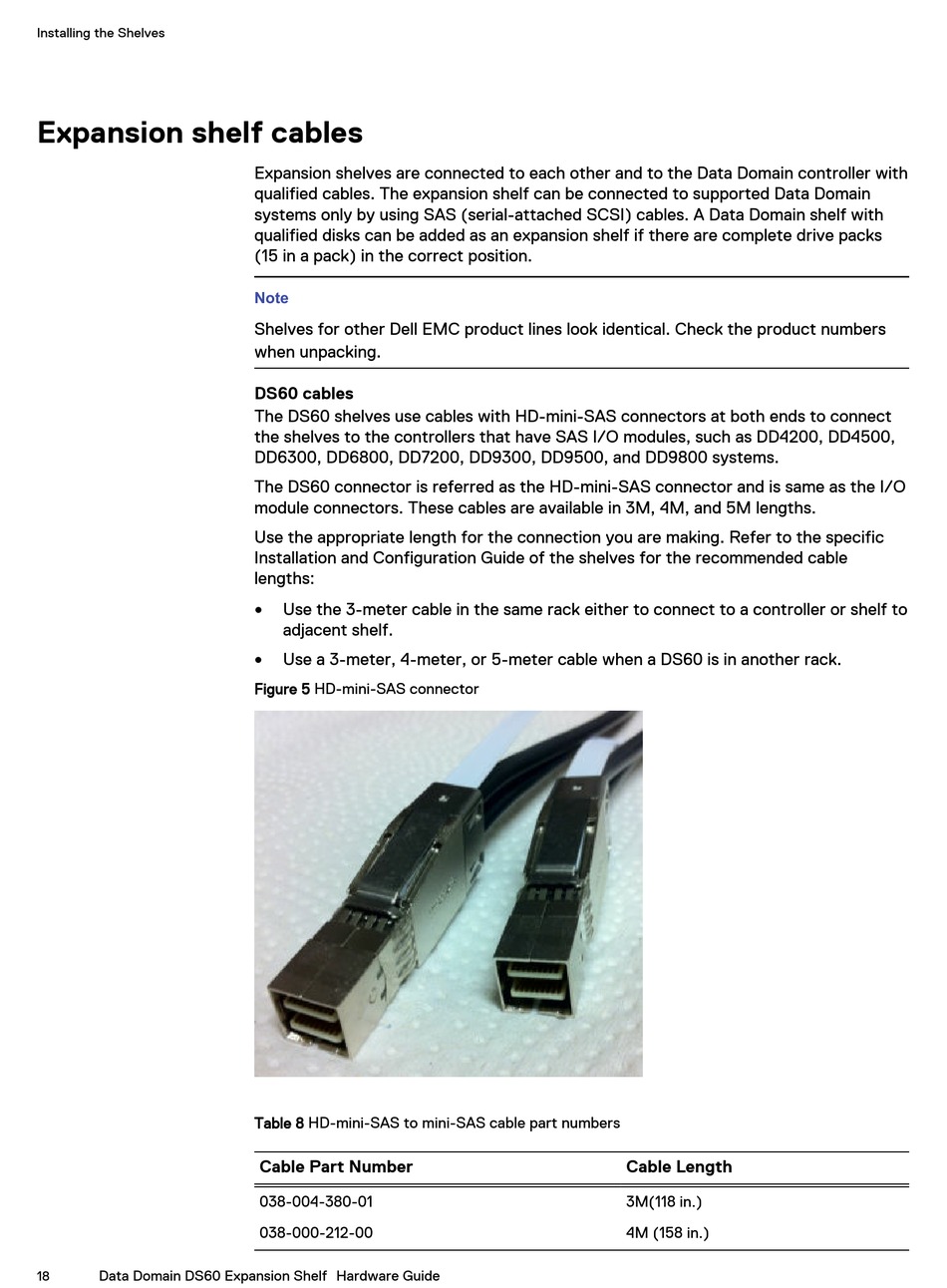

Figure 5 HD-mini-SAS connector
Table 8 HD-mini-SAS to mini-SAS cable part numbers
Cable Part Number
038-004-380-01
038-000-212-00
Cable Length
3M(118 in.)
4M (158 in.)
