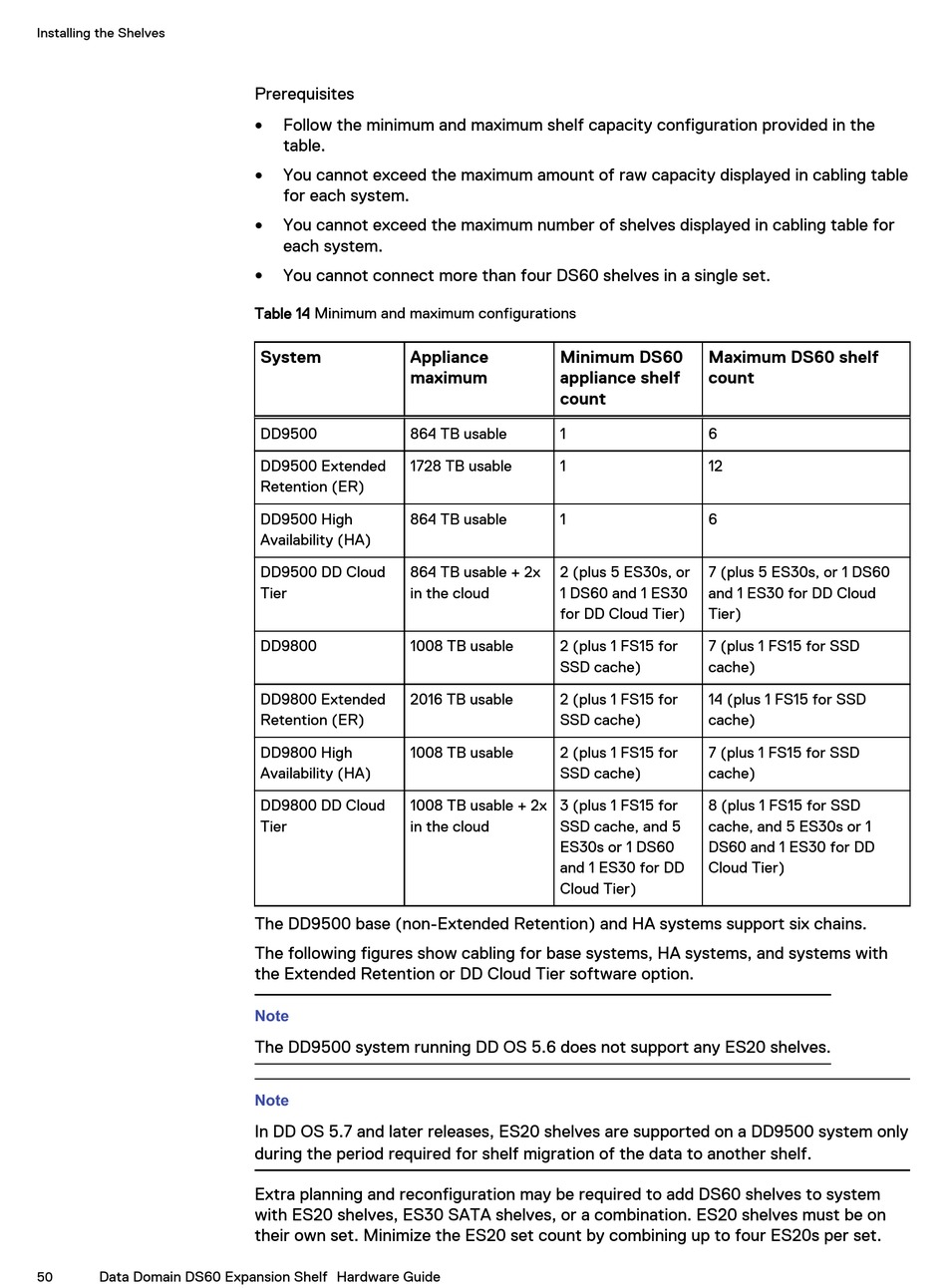

Installing the Shelves
Data Domain DS60 Expansion Shelf Hardware Guide
50
Prerequisites
Follow the minimum and maximum shelf capacity configuration provided in the
l
table.
You cannot exceed the maximum amount of raw capacity displayed in cabling table
l
for each system.
You cannot exceed the maximum number of shelves displayed in cabling table for
l
each system.
You cannot connect more than four DS60 shelves in a single set.
l
Table 14 Minimum and maximum configurations
System Appliance
maximum
DD9500 864 TB usable
DD9500 Extended 1728 TB usable
Retention (ER)
DD9500 High 864 TB usable
Availability (HA)
DD9500 DD Cloud 864 TB usable + 2x
Tier in the cloud
DD9800 1008 TB usable
DD9800 Extended 2016 TB usable
Retention (ER)
DD9800 High 1008 TB usable
Availability (HA)
DD9800 DD Cloud 1008 TB usable + 2x
Tier in the cloud
The DD9500 base (non-Extended Retention) and HA systems support six chains.
The following figures show cabling for base systems, HA systems, and systems with
the Extended Retention or DD Cloud Tier software option.
Note
The DD9500 system running DD OS 5.6 does not support any ES20 shelves.
Note
In DD OS 5.7 and later releases, ES20 shelves are supported on a DD9500 system only
during the period required for shelf migration of the data to another shelf.
Extra planning and reconfiguration may be required to add DS60 shelves to system
with ES20 shelves, ES30 SATA shelves, or a combination. ES20 shelves must be on
their own set. Minimize the ES20 set count by combining up to four ES20s per set.
Minimum DS60 Maximum DS60 shelf
appliance shelf count
count
1 6
1 12
1 6
2 (plus 5 ES30s, or 7 (plus 5 ES30s, or 1 DS60
1 DS60 and 1 ES30 and 1 ES30 for DD Cloud
for DD Cloud Tier) Tier)
2 (plus 1 FS15 for 7 (plus 1 FS15 for SSD
SSD cache) cache)
2 (plus 1 FS15 for 14 (plus 1 FS15 for SSD
SSD cache) cache)
2 (plus 1 FS15 for 7 (plus 1 FS15 for SSD
SSD cache) cache)
3 (plus 1 FS15 for 8 (plus 1 FS15 for SSD
SSD cache, and 5 cache, and 5 ES30s or 1
ES30s or 1 DS60 DS60 and 1 ES30 for DD
and 1 ES30 for DD Cloud Tier)
Cloud Tier)
