Technical Guide
Dell EMC PowerEdge MX740c
A full-featured, storage-rich, flexible 2-socket compute sled that is
ideal for many workloads including virtualization, collaborative, and
software-defined workloads. The following material introduces new
technologies and features and is an instructional aid and online
reference for the Dell EMC PowerEdge MX740c.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PowerEdge MX740c and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dell EMC PowerEdge MX740c

  • Page 1 A full-featured, storage-rich, flexible 2-socket compute sled that is ideal for many workloads including virtualization, collaborative, and software-defined workloads. The following material introduces new technologies and features and is an instructional aid and online reference for the Dell EMC PowerEdge MX740c.
  • Page 2 © 2018 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners. 2018 - 06 Rev. A00...
  • Page 3: Table Of Contents

    Contents 1 System overview ......................5 ..................................5 Introduction ................................5 New Technologies 2 System features......................7 ................................7 Product comparison ..................................8 Specifications 3 Chassis view and features....................10 ..............................10 Front view of the system ................................11 Internal system view ...........................
  • Page 4 ProSupport ............................42 ProSupport One for Data Center ............................... 42 Support Technologies ................................42 SupportAssist .................................. 43 TechDirect ............................43 Additional professional services ..............................43 Dell Education Services ......................43 Dell EMC Global Infrastructure Consulting Services ............................43 Dell EMC Managed Services...
  • Page 5: System Overview

    OpenManage Enterprise-Modular Edition. Introduction Designed for Dell EMC’s PowerEdge MX kinetic infrastructure ecosystem, the PowerEdge MX740c server, with dense compute, large memory capacity and rich set of storage subsystem options, delivers the flexibility and agility needed in today’s software- defined data centers.
  • Page 6 Technologies Description iDRAC with Lifecycle Controller Works in conjunction with OpenManage Enterprise – Modular, embedded systems management solution for Dell EMC servers features hardware and firmware inventory and alerting, faster performance and many more features.
  • Page 7: System Features

    System features Product comparison The following table shows the comparison between the PowerEdge MX740c (designed for PowerEdge MX7000 chassis) and PowerEdge M640/FC640 (designed for PowerEdge M1000e/VRTX and FX2/FX2S chassis) modular server: Table 2. Comparison table Feature PowerEdge MX740c PowerEdge M640/FC640 •...
  • Page 8: Specifications

    Feature PowerEdge MX740c PowerEdge M640/FC640 • One USB 2.0 management port to iDRAC • One USB 2.0 management port to iDRAC • One USB 3.0 + USB 2.0 port for IDSDM • One USB 3.0 + USB 2.0 port for IDSDM •...
  • Page 9 One internal and one external USB 3.0 port Trusted Platform Module TPM 1.2, TPM 2.0 • Systems management: IPMI 2.0 compliant: Systems management – Dell EMC OpenManage Enterprise-Modular – Dell EMC OpenManage Mobile • Remote management: – iDRAC9 with Lifecycle Controller –...
  • Page 10: Chassis View And Features

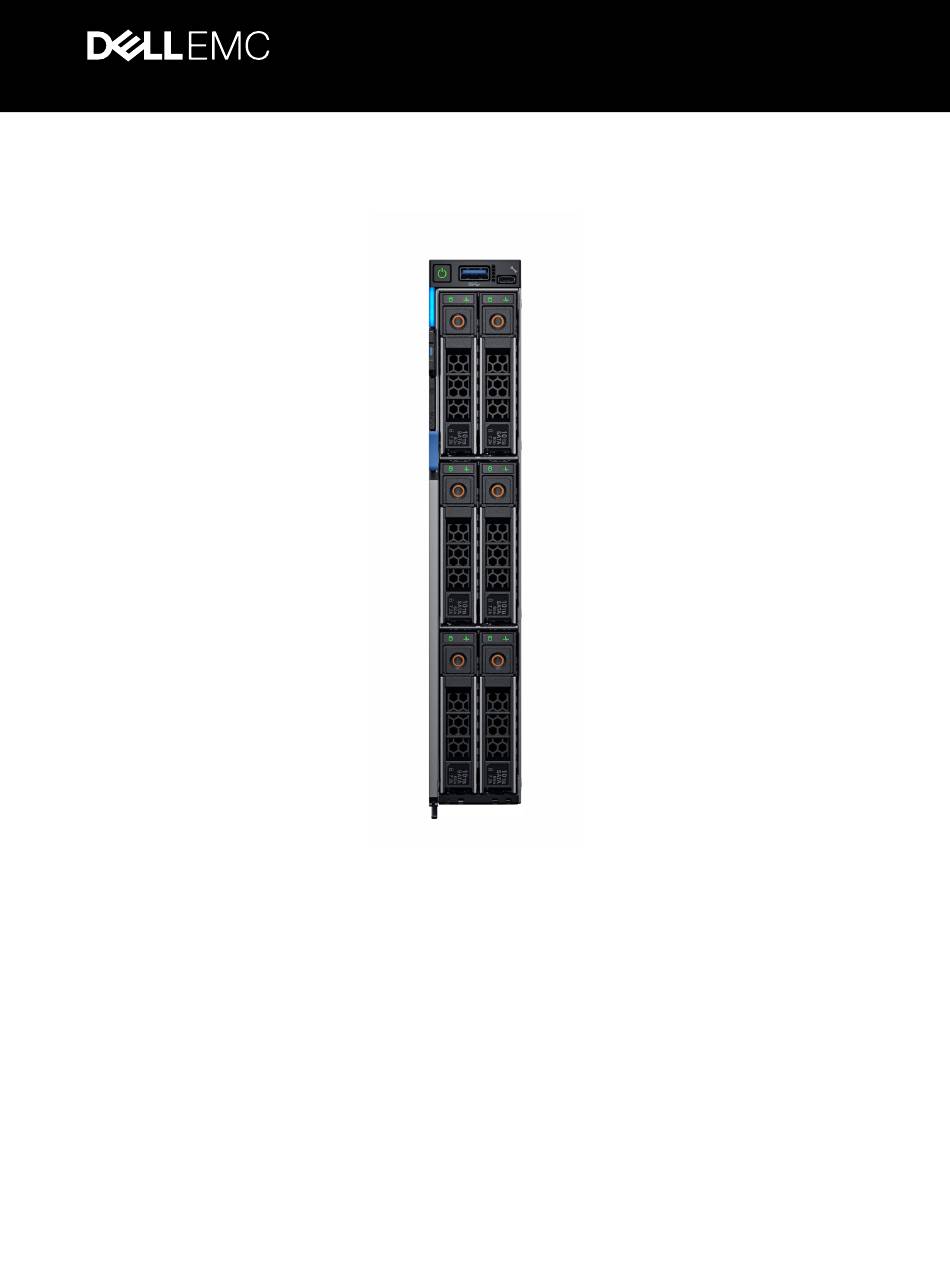

    Chassis view and features The MX740c is a full-height, two socket compute sled for the MX7000 chassis. Front view of the system Figure 1. Front view of the 6 drive configuration USB 3.0 port iDRAC direct port Drives Release handle Release handle button Information tag...
  • Page 11: Internal System View

    System health and System ID indicator Power button Internal system view Figure 2. Inside the system Backplane Backplane cable Processor 1 (heat sink) Processor 2 (heat sink) Mezzanine card A1 Power connector Mezzanine card B1 Mini Mezzanine connector iDRAC card BOSS or IDSDM module connector PERC connector Locating the Service Tag of your system...
  • Page 12 Figure 3. Locating Service Tag of your system Information tag Service tag...
  • Page 13: Processor

    Processorswhich support Advanced RAS enable a second FMA execution unit. Supported processors The PowerEdge MX740c supports up to two processors and 28 cores per processor. The following table shows the list of standard processors offered on the PowerEdge MX740c. Table 4. Standard offer processors...
  • Page 14: Chipset

    1.70 GHz 8.25 MB 9.6 GT/s 2133 MT/s 768GB Chipset The PowerEdge MX740c systems use the Intel® C628 chipset that provides extensive I/O support. Functions and capabilities include: • ACPI Power Management Logic Support, Revision 4.0a • PCI Express Base Specification Revision 3.0 •...
  • Page 15 • Supports Intel® Active Management Technology and Server Platform Services • Supports Intel® Virtualization Technology for Directed I/O • Supports Intel® Trusted Execution Technology • JTAG Boundary Scan support • Intel® QuickAssist Technology • Intel® Trace Hub for debug...
  • Page 16: Memory

    Memory The PowerEdge MX740c supports up to 24 DIMMs, with up to 3TB of memory and speeds up to 2666MT/s. The MX740c supports registered (RDIMMs) and load reduced DIMMs (LRDIMMs) which use a buffer to reduce memory loading and provide greater density, allowing for the maximum platform memory capacity.
  • Page 17: Memory Configurations

    Memory configurations The MX740c servers support flexible memory configurations ranging from capacities of 8GB (minimum) to 3TB (maximum). The MX740c supports up to 12 DIMMs per processor (up to 24 DIMMs in a dual- processor configuration). Each server has 6 memory channels per processor, with each channel supporting up to 2 DIMMs.
  • Page 18 Feature Description Memory address parity protection This feature provides the ability to detect transient errors on the address lines of the DDR channel. Memory sparing (rank) Memory sparing allocates one rank per channel as a spare. If excessive correctable errors occur in a rank or channel, they are moved to the spare area while the operating system is running to prevent the errors from causing an uncorrectable failure.
  • Page 19: Storage

    Storage With a variety of storage controllers and drive types, the PowerEdge MX740c provides expandability that allows you to tailor your storage to match your workload and operational demands. Options include boot devices, a portfolio of PERC controllers and HBAs, SAS and SATA hard drives and SSDs, and NVMe SSDs.
  • Page 20: Vflash

    The IDSDM shares the same location as the BOSS-S1 module and connects using a Dell EMC-proprietary PCIe x1 slot that uses a USB interface to the host. NOTE: The PowerEdge MX740c supports either the optional IDSDM or the BOSS S-1 module but cannot support both simultaneously.
  • Page 21: Management Applications For The Boss-S1 Controller

    System BIOS (F2). • Dell EMC OpenManage Storage Management - Enables you to perform controller and enclosure functions for all the supported the RAID controllers and enclosures from a single graphical or command-line interface. For more information, see the Dell EMC...
  • Page 22: Networking And Pcie

    12Gb Fabric C Mezz Adapter Mezzanine card slots The following list are the supported internal PCIe slots for the PowerEdge MX740c: • Two PCIe Gen3 x16 mezzanine card slots (Fabric A and Fabric B) • One PCIe Gen3 x16 mini-mezzanine card slot (Fabric C)
  • Page 23: Power, Thermal, And Acoustics

    Dell EMC Enterprise Infrastructure Planning Tool is a power planning tool that is now available as a standalone executable and will support PSU sizing in addition to workload estimates. EPIT is located at www.dell.com/calc...
  • Page 24: Acoustics

    Acoustics For detailed information about acoustics please consult the MX7000 Technical Guide.
  • Page 25: Supported Operating Systems

    Supported operating systems The Dell EMC PowerEdge MX740c sled supports the following operating systems: • Citrix XenServer • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SuSE Linux Enterprise Server • Ubuntu • VMWare ESXi For more information about the specific versions and editions, go to www.dell.com/ossupport.
  • Page 26: Openmanage Systems Management

    The integrated Dell Remote Access Controller (iDRAC) with Lifecycle Controller provides embedded management in every Dell EMC PowerEdge server. It provides functionality that helps you deploy, update, monitor and maintain Dell EMC PowerEdge servers with or without a systems management software agent, and because it is embedded, iDRAC doesn’t need an operating system or hypervisor to start working.
  • Page 27 Table 7. iDRAC feature comparison Features iDRAC8 iDRAC9 iDRAC8 iDRAC9 iDRAC8 iDRAC9 iDRAC8 iDRAC9 Basic Basic Express Express Express for Express Enterprise Enterprise Blades for Blades Interface/Standards Redfish IPMI 2.0 DCMI 1.5 Web-based GUI Racadm command line— local/remote SMASH-CLP—SSH-only Telnet Serial redirection WSMAN Network Time Protocol...
  • Page 28 Features iDRAC8 iDRAC9 iDRAC8 iDRAC9 iDRAC8 iDRAC9 iDRAC8 iDRAC9 Basic Basic Express Express Express for Express Enterprise Enterprise Blades for Blades Directory services—AD, LDAP Two-factor authentication Single sign-on PK authentication FIPS 140-2 Secure UEFI boot- certificate management Lock down mode Unique iDRAC default password Customizable Security...
  • Page 29 Features iDRAC8 iDRAC9 iDRAC8 iDRAC9 iDRAC8 iDRAC9 iDRAC8 iDRAC9 Basic Basic Express Express Express for Express Enterprise Enterprise Blades for Blades Real-time power meter Power thresholds & alerts Real-time power graphing Historical power counters Power capping Power Center integration Temperature monitoring Temperature graphing Health Monitoring Predictive failure...
  • Page 30 Features iDRAC8 iDRAC9 iDRAC8 iDRAC9 iDRAC8 iDRAC9 iDRAC8 iDRAC9 Basic Basic Express Express Express for Express Enterprise Enterprise Blades for Blades Local configuration via F10 Embedded OS deployment tools Embedded configuration tools AutoDiscovery Remote OS deployment Embedded driver pack Full configuration inventory Yes Inventory export Remote configuration Zerotouch configuration...
  • Page 31: Agent-Free Management

    RAID licensing Agent-free management As Dell EMC PowerEdge servers have embedded server lifecycle management, there is no need to install an OpenManage systems management software agent into the operating system of a PowerEdge server. This greatly simplifies and streamlines the management footprint.
  • Page 32: Openmanage Console

    The central console in a systems management solution is often referred to as the one-to-many console. The central console provides a rapid view and insight into the overall health of all systems in the IT environment. The Dell EMC systems management portfolio includes several powerful consoles, depending upon your needs, including the following: •...
  • Page 33: Openmanage Integrations

    OpenManage Ansible Modules OpenManage Connections With OpenManage Connections, you can extract rich information about the health and behavior of Dell EMC servers and storage to more effectively monitor, manage and troubleshoot Dell EMC systems in multi-vendor hardware, OS, hypervisor and Open Source environments.
  • Page 34: Appendix A. Additional Specifications

    Appendix A. Additional specifications Dimensions and weight Table 8. System dimensions of the PowerEdge MX740c Z (handle closed) Max weight 250.2 mm (9.85 inches) 42.15 mm (1.65 inches) 620.35 mm (24.42 inches) 9.5 kg (20.94 lbs) Environmental specifications NOTE: For additional information about environmental certifications, please refer to the Product Environmental Datasheet located with the Manuals &...
  • Page 35: Video Specifications

    Table 15. Video specifications Video type Matrox G200 graphics controller integrated with iDRAC Video memory 4 Gb DDR4 shared with iDRAC application memory USB ports The Dell EMC PowerEdge MX740c system supports: • One USB 3.0-compliant port on the front of the system...
  • Page 36 • One micro USB/iDRAC Direct USB 2.0-compliant port on the front of the system • One USB 3.0-compliant internal port NOTE: The micro USB 2.0-compliant port on the front of the system can only be used as an iDRAC Direct management port.
  • Page 37: Appendix B. Standards Compliance

    Appendix B. Standards compliance Table 16. Industry standard documents Standard URL for information and specifications ACPI Advance Configuration and Power Interface Specification, acpi.info v2.0c Ethernet IEEE 802.3-2005 standards.ieee.org/getieee802/802.3.html HDG Hardware Design Guide Version 3.0 for Microsoft Windows microsoft.com/whdc/system/platform/pcdesign/desguide/ Server serverdg.mspx IPMI Intelligent Platform Management Interface, v2.0 intel.com/design/servers/ipmi DDR4 Memory DDR4 SDRAM Specification...
  • Page 38: Appendix C: Additional Resources

    Dell EMC contact information. Enterprise Infrastructure The Dell EMC online EPIT enables easier and more meaningful Dell.com/calc Planning Tool (EPIT) estimates to help you determine the most efficient configuration possible. Use EPIT to calculate the power consumption of your hardware, power infrastructure, and storage.
  • Page 39: Appendix D. Support And Deployment Services

    From simple to the most complex server installations and software integration, we take the guess work and risk out of deploying your new server technology. Who's better suited to implement the latest Dell EMC servers than the Dell EMC elite deployment engineers who do it every day? Figure 4.
  • Page 40: Residency Services

    ProSupport Enterprise Suite With Dell EMC ProSupport Services, we can help you keep your operation running smoothly, so you can focus on running your business. We will help you maintain peak performance and availability of your most essential workloads. Dell EMC ProSupport is a suite of support services that enable you to build the solution that is right for your organization.
  • Page 41: Prosupport Plus

    • Access to senior ProSupport engineers for faster issue resolution • Personalized, preventive recommendations based on analysis of support trends and best practices from across the Dell EMC customer base to reduce support issues and improve performance • Predictive analysis for issue prevention and optimization enabled by SupportAssist •...
  • Page 42: Prosupport One For Data Center

    This offering is built on standard ProSupport components that leverage our global scale but are tailored to your company's needs. While not for everyone, it offers a truly unique solution for Dell EMC's largest customers with the most complex environments.
  • Page 43: Techdirect

    • Request technical support • Integrate APIs into your help desk Or, access all your Dell EMC certification and authorization needs. Train your staff on Dell EMC products as TechDirect allows you to: • Download study guides • Schedule certification and authorization exams •...
