Data Domain-Specific Installation

DD4200, DD4500, and DD7200 systems

Data Domain DS60 Expansion Shelf Hardware Guide
82
The management module is located on the far left side when facing the back of the
system, in slot Management A. The management module contains one external LAN
connection for management access to the system processor (SP) module. One micro
DB-9 connector is included to provide the console. A USB port is provided for use
during service of the system to allow booting from a USB flash device.
All systems contain 9 (0-8) available I/O module slots. Depending on the system,
there can be up to 6 Ethernet modules, 4 Fibre Channel modules, or 4 SAS modules in
a system.
For I/O modules containing multiple ports, the bottom port is numbered as zero (0)
with numbers increasing going upward.

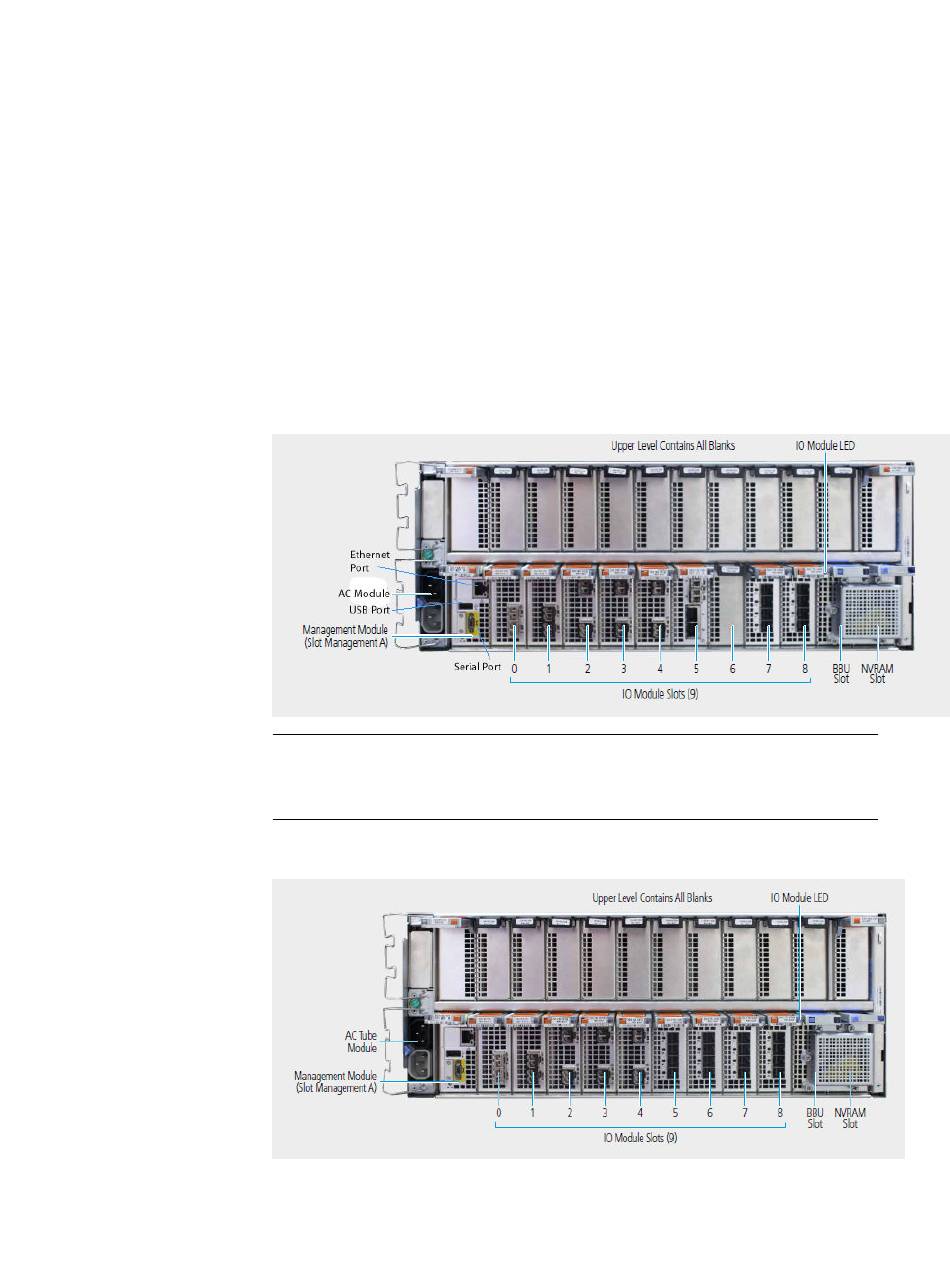

Figure 52 Rear view (systems without Extended Retention software option or DD Cloud Tier)
Note
Slots 7 and 8 are used for SAS I/O modules for systems without Extended Retention
or DD Cloud Tier.
Figure 53 Rear view (systems with Extended Retention software option or DD Cloud Tier)
