Requirements for combining DS60 and ES30 shelves

Data Domain DS60 Expansion Shelf Hardware Guide

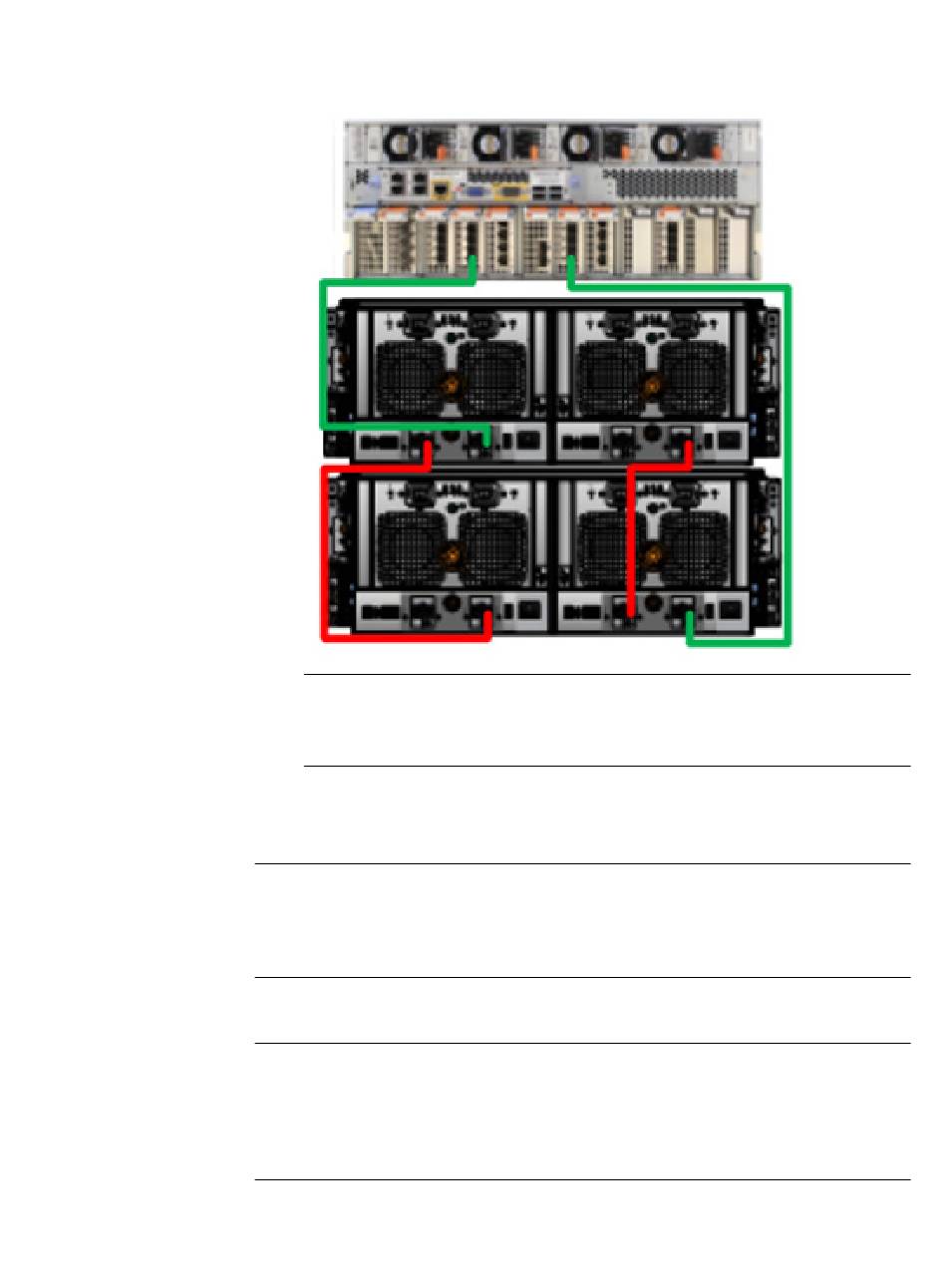

Figure 6 Shelf Cabling Connections

Note

SAS I/O cards are labeled on the back of the DD9500. The ports are labeled 0,1,

2, and 3. Cabling for each port is represented by a different color.

Note

ES20 shelves are only allowed to be connected to DD6300, DD6800 and DD9300, and

DD9500 or DD9800 systems to migrate the data using the shelf migration software

feature in DD OS 5.7 or later releases.

Some of the DS60 configurations described in the following sections also include

ES30 shelves for DD Cloud Tier metadata, or FS15 shelves for HA.

Note

For HA pairs that have one or more ES30/FS15 shelves, the primary and standby

nodes use different cables to connect to ES30/FS15 shelves. The primary node uses

ES30/FS15 HOST (circle) connections, and the standby node uses ES30/FS15

EXPANSION (diamond) connections.
