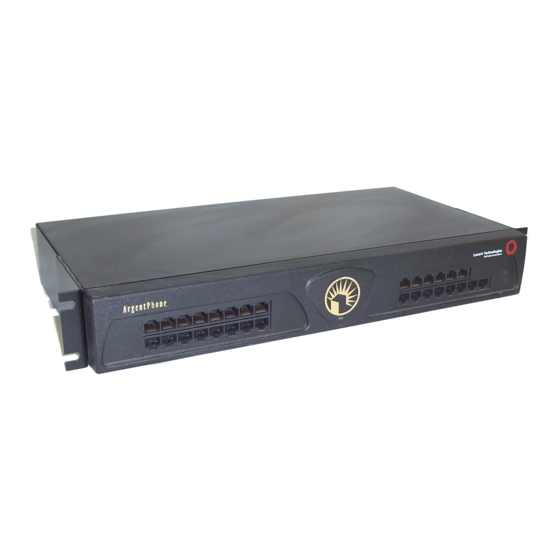

Argent Phone
Hardware Reference Manual
(Revision 6)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ArgentPhone and is the answer not in the manual?

Questions and answers

Summary of Contents for Avaya ArgentPhone

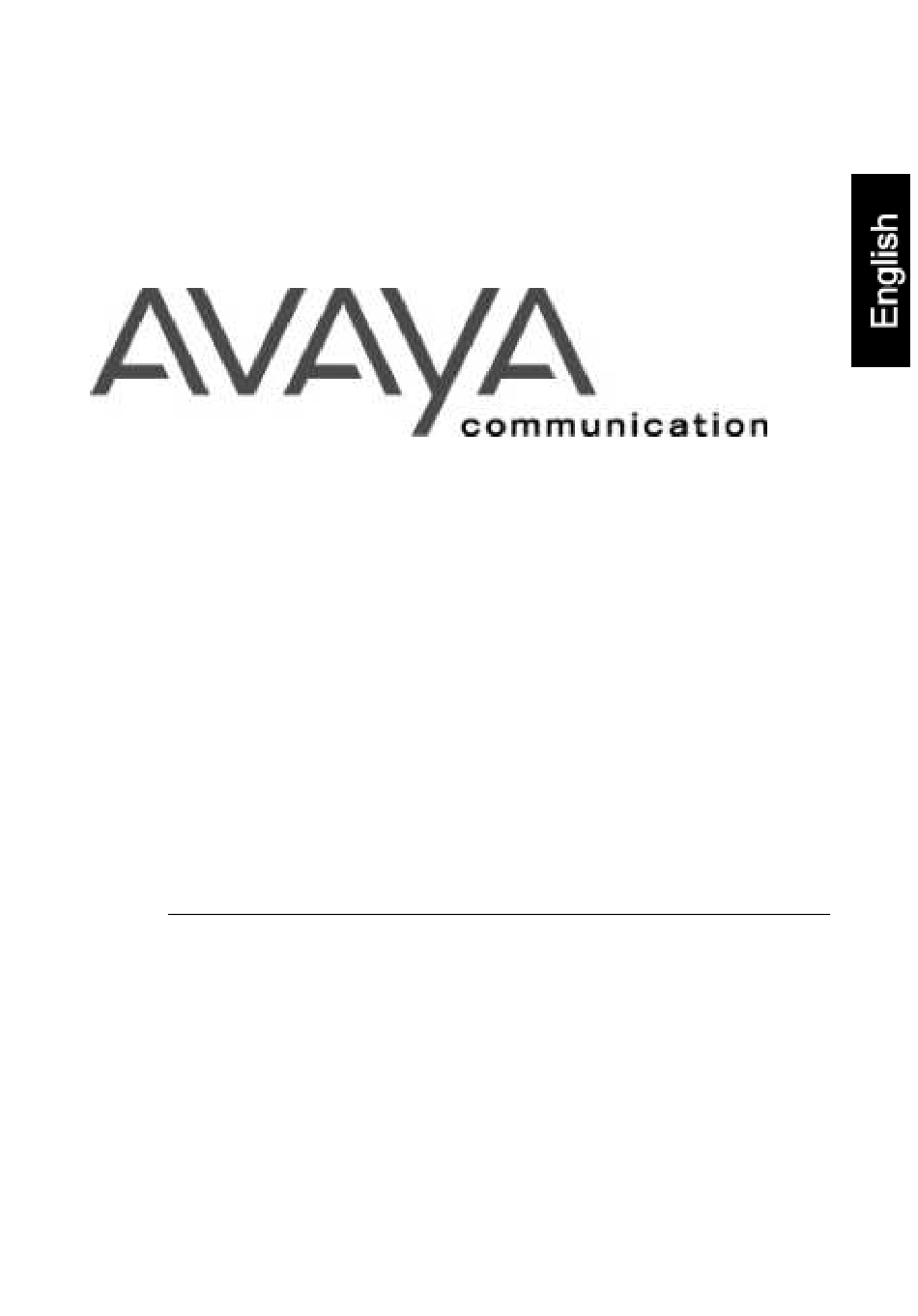

  • Page 1 Argent Phone Hardware Reference Manual (Revision 6)
  • Page 2 Copyright  2001 Avaya Inc. All rights reserved. Published by Avaya Inc., who reserve the right to make improvements to the products described in this manual and to revise this publication at any time without notice to any person of such changes.
  • Page 3: Table Of Contents

    ArgentPhone 16 ...................9 ArgentPhone 30 ...................9 Current Country Variants................10 Port Labelling........................11 ArgentPhone 8 - Front View ..............11 ArgentPhone 16 - Front View ..............11 ArgentPhone 30 - Front View ..............11 ArgentPhone 8 - Rear View ...............12 ArgentPhone 16/30 - Rear View ..............12 Port Connections ........................13...
  • Page 4 ArgentPhone Hardware Reference Manual Revision 6...
  • Page 5 Section 1: Introduction to the Argent Phone This section contains … About the ArgentPhone, page 6 Safety and Homologation Statements, page 7 Further Information and Product Updates, page 8 Product Variants, page 9 Port Labelling, page 11 Port Connections, page 13...
  • Page 6: About The Argentphone

    This Reference Manual provides technical information on the ArgentPhone 8, ArgentPhone 16 and ArgentPhone 30 products, including; Safety Declarations, Port Labelling and Pin-Out Information, Cable Specifications and Technical Specifications.
  • Page 7: Safety And Homologation Statements

    Section 1: Introduction to ArgentPhone SAFETY AND HOMOLOGATION STATEMENTS ECLARATION OF ONFORMITY Please see the associated Declaration of Conformity document, within the Approvals folder. Revision 6...
  • Page 8: Further Information And Product Updates

    ArgentPhone Hardware Reference Manual FURTHER INFORMATION AND PRODUCT UPDATES Further information, including Product and Reference Manual updates, can be obtained from Avaya Inc. Alchemy Dealers and Distributors, or from Avaya Inc. Alchemy web site: http://www.avaya.co.uk/products/#alchemy Revision 6...
  • Page 9: Product Variants

    Section 1: Introduction to ArgentPhone PRODUCT VARIANTS When used in conjunction with the main Argent system unit the ArgentPhone 8, the ArgentPhone 16 or the ArgentPhone 30 module acts as a fully featured PBX. The ArgentOffice product range consists of three models, the ArgentOffice 4, the ArgentOffice 8 and the ArgentOffice 30.
  • Page 10: Current Country Variants

    Refer to the table below. The ArgentPhone 8 is supplied with both a UK and an EU Plug Top Power supply. The UK variant uses an integral UK plug whereas the European variant uses an integral European plug.
  • Page 11: Port Labelling

    PORT LABELLING This section illustrates the ports on the ArgentPhone products. 8 - F RGENT HONE RONT The following diagram shows the port labelling on the front of the ArgentPhone 8: Phone Ports Unit Status LED 16 - F RGENT...
  • Page 12: Argentphone 8 - Rear View

    RGENT HONE The following diagram shows the port labelling on the rear of the ArgentPhone 8: 16/30 - R RGENT HONE The following diagram shows the port labelling on the rear of the ArgentPhone 16 and ArgentPhone 30: Revision 6...
  • Page 13: Port Connections

    The ArgentPhone 8 has a single bank of 8 x RJ45 sockets, the ArgentPhone 16 has two banks of 8 x RJ45 sockets and the ArgentPhone 30 has three banks of 8 x RJ45 sockets and one bank of 6 x RJ45 sockets. The phone ports are not labelled. This allows the user to pursue his own labelling scheme e.g.
  • Page 14: Dc Power Input Connector

    NPUT ONNECTOR The ArgentPhone 8 uses a 12V 1A Plug Top PSU module to provide DC power. This unregulated DC is fed into the unit via the DC Input port. The DC input connector on the ArgentPhone 8 is BLACK as is the corresponding 2.5mm Jack connector on the Plug Top PSU module.
  • Page 15 Section 2: Technical Data This section contains … Port Pinouts, page 16 Cables, page 18 Telephone Converter Cables, page 20 Port Safety Classification, page 22 Rack Mount Assembly Instructions, page 23 Technical Specifications, page 24...
  • Page 16: Port Pinouts

    ArgentPhone Hardware Reference Manual PORT PINOUTS This section provides technical specifications for the ArgentPhone ports. DTE P OCKET Pin 1 Pin 25 Pin No. Description Signal Direction Transmit Data (TxD) Receive Data (RxD) Request to Send (RTS) Clear to Send (CTS)
  • Page 17: Phone Port (Rj45 Socket)

    Section 2: Technical Data (RJ45 S HONE OCKET Pin 1 Pin 8 Pin No. Description Not used Bell Not used A leg B leg Bell Not used Not used Revision 6...
  • Page 18: Cables

    ArgentPhone Hardware Reference Manual CABLES The section provides information about the cables that are used in the ArgentPhone. DCE C ABLE Part No: CABMANSN02M0PS00 Sales Feature: ARG-TAC 25 Way D-Type Plug with UNC 4-40 locking screws. 9 Way D-Type Socket with UNC 4-40 locking screws.
  • Page 19: Expansion Interconnect Cable

    Section 2: Technical Data XPANSION NTERCONNECT ABLE Part No: CABETHNN01M0PP00 Sales Feature: ARG-HSIC Shielded RJ45 Plug. Shielded RJ45 Plug. STP (Shielded Twisted Pair) cable - BLUE. 1 metre. Pin Connections End A Name Colour Cable Notes End B Rx-A White/Orange Twisted pair Rx-B Orange/White...
  • Page 20: Telephone Converter Cables

    This has the effect of bypassing the telephone bell circuit with the result that the phone does not ring. This converter should not be used. Each phone port on the ArgentPhone unit acts as a Master socket, thus only Slave Telephone Converters are required.
  • Page 21 Section 2: Technical Data RJ45 - Compatible Converter Telephone Structured Wiring/ Converter Cable ArgentPhone RJ45 BT New Plan RJ45 Plug Socket Socket Latch Bell A (Bell return) Bell RJ45 - Incompatible Converter Telephone Structured Wiring/ Converter Cable ArgentPhone RJ45 RJ45...
  • Page 22: Port Safety Classification

    ArgentPhone Hardware Reference Manual PORT SAFETY CLASSIFICATION The ArgentPhone 8, ArgentPhone 16 and ArgentPhone 30 have the following ports in common: 1 x Expansion ports. 1 x DTE port. 1 x DC Power Input port. 8 x Telephone Extension ports.
  • Page 23: Rack Mount Assembly Instructions

    Section 2: Technical Data RACK MOUNT ASSEMBLY INSTRUCTIONS Revision 6...
  • Page 24: Technical Specifications

    ArgentPhone Hardware Reference Manual TECHNICAL SPECIFICATIONS NTERFACES Interface Information 25 way D-Type female connector, V.24/V.28. (Used for Production Test purposes only). Phone RJ45 Socket. UK - Phone ports act as Master sockets. Caller Display to BT SIN242 Issue 2. REN = 1.
  • Page 25 Section 2: Technical Data Interface Information ArgentPhone 30 2.5mm DC inlet socket - BLUE. Rating - 16Vdc, 2.1A max. The Power Adapter is CE Safety Approved. The unit’s power consumption is nominally 30 Watts. Plug Top PSU Power 230Vac, 50Hz...
  • Page 26 ArgentPhone Hardware Reference Manual Revision 6...
