Avaya X330G2 Expansion Module Installation Guide

Safety Information

Laser Classification

Catalog No. 130114 Rev. A June 2001

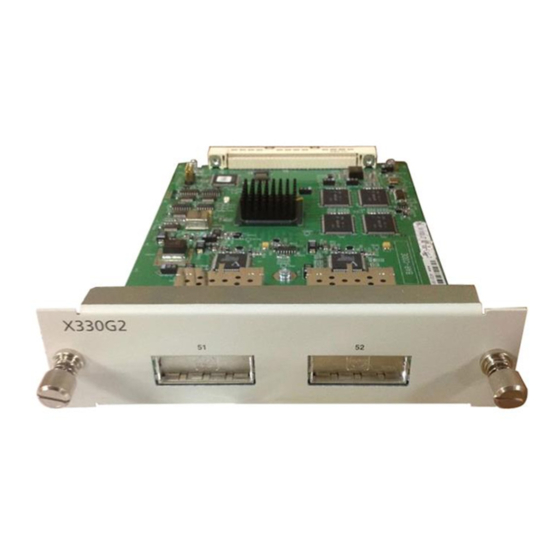

The Avaya X330G2 Expansion Sub-Module is the GBIC (1.25 Gbit/s Gigabit

Ethernet) Expansion sub-module for the Avaya P330 family of stackable switches.

Note: In order to use this module the Avaya P330 switch must must have

Embedded S/W Version 2.2 or higher. You can download this from:

http://www.avayanetwork.com

The X330G2 can be used either as a Gigabit Ethernet link or as a high Bandwidth

backplane for connecting switches. The introduction of the GBIC interface to the

Avaya P330 family presents an added value over the existing Gigabit Ethernet

expansion modules. You can insert any of the Avaya-authorized GBIC transceivers

into the X330G2 Expansion sub-module socket. This provides you with a highly

modular and customisable Gigabit Ethernet interface. The GBIC transceivers are

hot-swappable.

The multimode and single-mode GBIC transceivers are Class 1 Laser products.

They comply with EN 60825-1 and Food and Drug Administration (FDA) 21 CFR

1040.10 and 1040.11.

The GBIC transceivers must be operated under recommended operating conditions.

CLASS 1

LASER PRODUCT

Note: Class 1 lasers are inherently safe under reasonably foreseeable conditions of

operation.

Caution: The use of optical instruments with this product will increase eye hazard.

Table of Contents

Do you have a question about the X330G2 and is the answer not in the manual?

Page 1: Safety Information
Embedded S/W Version 2.2 or higher. You can download this from: http://www.avayanetwork.com The X330G2 can be used either as a Gigabit Ethernet link or as a high Bandwidth backplane for connecting switches. The introduction of the GBIC interface to the Avaya P330 family presents an added value over the existing Gigabit Ethernet expansion modules.
Page 2 Usage Restriction When a GBIC transceiver is inserted in the X330G2 Expansion sub-module but is not in use, then the Tx and Rx ports should be protected with an optical connector or a dust plug. Avaya Approved GBIC Transceivers Caution: All Avaya appoved GBICs are 5V. Do not insert a 3.3V GBIC.
Page 3 Insert another expansion module or the blanking plate. We recommended that you reset the Avaya P330. Note: You must not use the Avaya P330 switch when the expansion slot is uncovered. In case the slot is empty cover it with the supplied blanking plate.
Page 4: Specifications
Drug Administration (FDA) 21 CFR 1040.10 and 1040.11, and CE for Europe EN60950 Std. Complies with EN 60825-1. MTBF The Mean Time Between Failures (MTBF) for the X330G2 Expansion Sub-module is 594,639 hours. www.avaya.com All other trademarks, registered trademarks, service names, product and/or brand names are the sole property of their respective owners.
