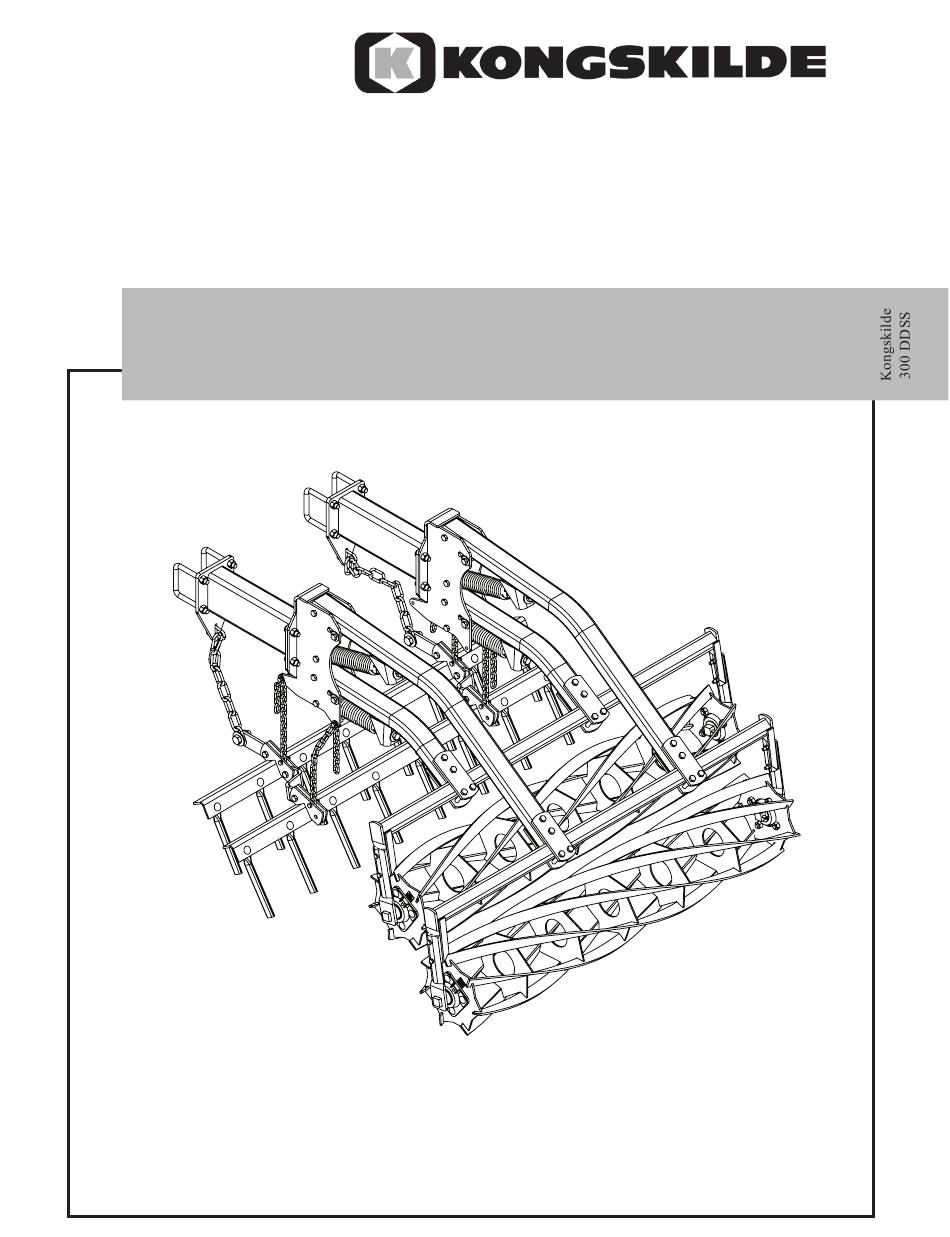

300 DDSS Harrows
Flex Drag & Spiral Rollers
Assembly Instructions
and Operating Guide
*Model may not be exactly as shown.
Kongskilde reserves the right to make changes to product designs and
specifications without notice or obligation to rework.
See your local Kongskilde representative for current product specific-
ations and options.
760000222 - Revision 2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kongskilde 300 DDSS
Summary of Contents for Kongskilde 300 DDSS
- Page 1 300 DDSS Harrows Flex Drag & Spiral Rollers *Model may not be exactly as shown. Kongskilde reserves the right to make changes to product designs and specifications without notice or obligation to rework. See your local Kongskilde representative for current product specific- ations and options.
-
Page 2: Table Of Contents
Table of Contents Introduction: ............................3 Harrow Extension Arm Assembly .......................4 Harrow Arm Assembly ........................6 Harrow Arm Part Details ........................8 2-Bar Flex Drag-Spike Assembly ......................10 2-Bar Flex Drag-Spike Part Details ....................12 Roller Assembly ..........................14 Roller Part Details ..........................16 Assembly Supplement: 2-Bar Drag ....................18 Assembly Supplement: Rollers ......................19 Assembly Completion ........................21 Field Adjustments and Settings ......................22... -
Page 3: Introduction
When properly adjusted the harrow will help to prepare a level surface for planting in various field conditions and soil types. The 300 DDSS is comprised of a 2-Bar Flex Drag-Spike harrow with Double Spiral Bar Rota Har- row to achieve maximum leveling and a superior seed bed. -
Page 4: Harrow Extension Arm Assembly
Harrow Extension Arm Assembly Instructions: NOTE: Determine whether shallow or steep angle will be used for drag-spikes before positioning extension arms. Refer to assembly supplement section for details. -Use harrow layout book to position extension arms and attach extensions to rear of cultivator frame with u-bolts. - Page 5 Parts list / 8200 Harrow Extension Arm Assembly. Date: March 2013 Fig. Part no. Description 760052000 Harrow Extension Wdmt 600373058 U-Bolt 5/8” X 4” X 5 1/2” 600366031 Stover Locknut Type C - 5/8" UNC...
-
Page 6: Harrow Arm Assembly
Harrow Arm Assembly Instructions: -Mount the pre-assembled harrow arms to the extensions using the hardware listed on the next page. - Page 7 Parts list / 8200 Harrow Arm Assembly. Date: July 2013 Fig. Part no. Description 760052000 Harrow Extension Wdmt 760053012 300 SS Harrow Arm Assembly 600356023 Bolt 5/8" x 1-3/4" Gr. 5 600366031 Stover Locknut Type C - 5/8" UNC...
-
Page 8: Harrow Arm Part Details
Harrow Arm Part Details � � � �� �� � �� � � � � � � � �... - Page 9 Parts list / 8200 Harrow Arm Part Details. Date: July 2013 Fig. Part no. Description 760052004 Harrow Roller Bracket Weldment 603150180 Wear Bushing 603150188 Intermediate Arm Weldment 603150187 Short Arm Weldment 600381050 Flat Washer 1/2" 600381020 Flat Washer 5/8" 600356030 Bolt 1/2"...
-
Page 10: 2-Bar Flex Drag-Spike Assembly
2-Bar Flex Drag-Spike Assembly Instructions: -Position drag-spike assemblies behind machine according to layout manual and attach to arms with hardware and chains provided. With cultivator tines resting on ground, chains should be positioned to allow spikes to rest on ground so that when cultivator is raised, spikes will be even with/just below tines. - Page 11 Parts list / 8200 2-Bar Flex Drag-Spike Assembly. Date: July 2013 Fig. Part no. Description 760052000 Harrow Extension Wdmt 760053000 300 SS Harrow Arm Assembly 602060140 Hanger Chain 600356115 Bolt 3/8" x 1-1/2" Gr. 5 600381006 Flat Washer 3/8" 600366028 Stover Locknut Type C - 3/8"...
-
Page 12: 2-Bar Flex Drag-Spike Part Details
2-Bar Flex Drag-Spike Part Details � � � � �... - Page 13 Parts list / 8200 2-Bar Flex Drag-Spike Part Details. Date: May 2013 Fig. Part no. Description 602060114 Straight Joiner Link 602060137 1500 Harrow Bar Assembly 8 Spike 602060134 700 Harrow Bar Assembly 4 Spike 760053001 900 Harrow Bar Assembly 5 Spike 602060135 1100 Harrow Bar Assembly 6 Spike 602060136...
-
Page 14: Roller Assembly
Roller Assembly Instructions: -Position and mount correct frames and Spiral Bar Rota-Harrow widths to harrow arms according to harrow layout manual. Bearing arms on rollers should be mounted to outside of frame ears. -Left rollers are always mounted in front of the right rollers. IMPORTANT: Rollers are bidirectional. - Page 15 Parts list / 8200 Roller Assembly. Date: March 2013 Fig. Part no. Description 603151284 Roller Assembly 63" Right - Shaftless 603151278 Roller Assembly 32" Right - Shaftless 603151280 Roller Assembly 47" Right - Shaftless 603151282 Roller Assembly 55" Right - Shaftless 603151286 Roller Assembly 71"...
-
Page 16: Roller Part Details
Roller Part Details... - Page 17 Parts list / 8200 Roller Part Details. Date: March 2013 Fig. Part no. Description 603151273 63" Right Shaftless Roller Weldment 603151253 32" Right Shaftless Roller Weldment 603151257 47" Right Shaftless Roller Weldment 603151271 55" Right Shaftless Roller Weldment 603151275 71" Right Shaftless Roller Weldment 603151274 63"...
-
Page 18: Assembly Supplement: 2-Bar Drag
Assembly Supplement: Working Angle of 2-Bar Drag Harrow As an added feature, the straight and offset joiner links of the 2 bar drag sections have one end with two different angle cuts. This gives you the opportunity to set the spikes bars to run at a shallow angle of about 30°... -
Page 19: Assembly Supplement: Rollers
Assembly Supplement: Rollers When assembling the 300 DDSS Harrows it is important to note that there are left and right hand roll- ers. These are identified by a decal on the roller assemblies. If the decal is missing the rollers can be identified by looking at them from the end. - Page 20 Start assembling the rollers with the front, middle roller in the center section and work out in both directions to the wings. Shift the center roller to the right so that it is 4" right of center and tighten to roller frame.
-
Page 21: Assembly Completion
Assembly Completion: When the assembly of the harrows has been completed check to make sure that the complete assem- bly appears evenly spaced and centred across the back of the cultivator. If the harrow assembly is not centered you will have to shift the harrow sections as required. Improper centering of the rollers may cause the cultivator to pull crooked in the field. -
Page 22: Field Adjustments And Settings
Field Adjustments and Settings: The pull chains for the drag harrows may be shortened in order to raise the front bar and there- fore increase the working angle of the spikes. This will make the harrow more aggressive but may reduce the ability of the harrow to clear residue in some conditions. - Page 23 NOTE: There are many factors that can affect the ability of the harrows to level or even out the soil surface behind the cultivator; Cultivator tine spacing, type of shares (sweeps), cultivating depth, ground speed, direction of travel across the field (angle), soil type, and soil conditions like moisture content and crop residue levels, all have an affect on the quality and levelness of the seed bed.
-
Page 24: Maintenance
Maintenance: Periodically check all nuts and bolts and secure if loose. Lubricate the roller bearings after every 12 hours of operation. DO NOT OVER GREASE THE ROLLER BEARING: Over greasing may cause damage to the bearing seals. Periodically check and remove any foreign material that may become tangled in the harrow sections or wound around the rollers or bearings. - Page 26 760000222 July 2013...
