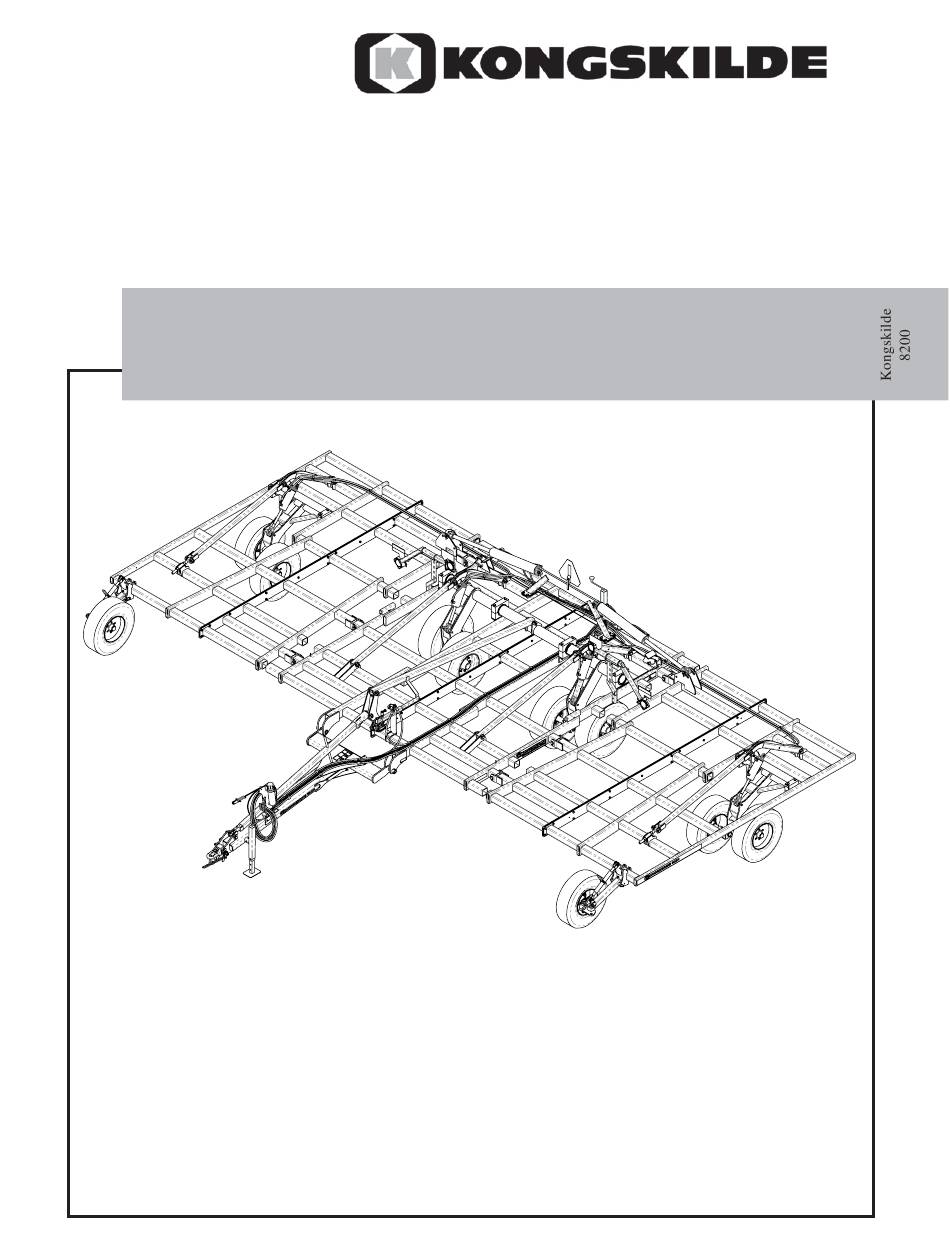

KONGSKILDE 8200
Field Cultivator - Assembly/Parts
Models
768226901 8226 Field Cultivator (26.5')
768228901 8228 Field Cultivator (28.5')
768230901 8230 Field Cultivator (30.5')
768232901 8232 Field Cultivator (32.5')
768232902 8236 Field Cultivator (36.5')
*Model may not be exactly as shown.
Kongskilde reserves the right to make changes to product designs and
specifications without notice or obligation to rework.
See your local Kongskilde representative for current product specific-
ations and options.
760000216 - Revision 11
Serial No. 520431 - current

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8200 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Kongskilde 8200 Series

Summary of Contents for Kongskilde 8200 Series

  • Page 1 Field Cultivator - Assembly/Parts Models *Model may not be exactly as shown. Kongskilde reserves the right to make changes to product designs and 768226901 8226 Field Cultivator (26.5') specifications without notice or obligation to rework. See your local Kongskilde representative for current product specific- 768228901 8228 Field Cultivator (28.5')

  • Page 2: Table Of Contents

    Table of Contents Introduction: ............................3 Center Frame Assembly ........................4 Center Rockshaft Assembly .........................6 Center Rockshaft Parts .........................8 Dual Fold Cylinder Mount Assembly (8236 Only) ................10 Center Lift Cylinders & Linkages Assembly ..................12 Fold Cylinder Mount Assembly ......................14 Single Point Assembly ........................16 Light Stands &...

  • Page 3: Introduction

    Introduction: Please take the time to carefully read all the instruction booklets provided with your new Kongskilde product. Once you are finished reading do not throw these guides out. Keep them for later review. These instruction booklets have been developed to assist you in assembling, adjusting and maintain- ing your new Kongskilde Product.

  • Page 4: Center Frame Assembly

    Center Frame Assembly Instructions: -Hardware included in bag 760033012 -Connect center frames as shown, using parts listed on next page. -Place center frames on steel shop stands during assembly until lift hydraulics are installed and working.
  • Page 5 Parts list / 8200 Center Frame Assembly. Date: Nov 2015 Fig. Part no. Description 760033084 Asy, Center Mainframe, LH 760033085 Asy, Center Mainframe, RH 760032063 Leveling Pivot Linkage Mount 600356107 Bolt, 5/8" X 3" GR. 5 600356023 Bolt, 5/8" X 1 3/4" GR. 5 600366031 Nut, Toplock 5/8"...

  • Page 6: Center Rockshaft Assembly

    Center Rockshaft Assembly Instructions: -Hardware included in bag 760033012 -Insert wear sleeves into rockshaft blocks before assembling rockshaft. -Assemble rockshaft, spindles and wheels to center frame as shown, using parts listed on next page. -Spindles and wheels can be installed to rockshaft assembly before or after rockshaft is attached to the frame -IMPORTANT: Install wheels to the spindles so the wheel rims are offset toward the wheel arms.
  • Page 7 Parts list / 8200 Center Rockshaft Assembly. Date: Aug 2014 Fig. Part no. Description 760033003 Center Rockshaft Assembly 760031189 Center Rockshaft Block 760031129 Center Rockshaft Block (Old version used w/o wear sleeve) 7600355102 Bolt, 3/4" X 9-1/2" GR. 8 600366024 Nut, Toplock 3/4"...

  • Page 8: Center Rockshaft Parts

    Center Rockshaft Parts 18 14 16 17 7 14...
  • Page 9 Parts list / 8200 Center Rockshaft Parts. Date: Feb 2016 Fig. Part no. Description 760032008 Center Rockshaft Wdmt 760032010 Center Tandem Wdmt 7600473116 6000# Spindle (2-3/4" x 18") w/Hole 7600473117 2-3/4" x 18" Spindle Assembly (Includes Items 3, 10, 11, 22) 763011289 8-Bolt Hub 60-8 (Includes Items 4, 7, 8, 13, 14) 763012379...

  • Page 10: Dual Fold Cylinder Mount Assembly (8236 Only)

    Dual Fold Cylinder Mount Assembly (8236 SF ONLY) Instructions: -Hardware included in bag 760033028 -On 8236 Single fold maching only, attach fold cylinder mounts and cross brace as shown (using hardware on next page) before installing center lift linkages and cylinders.
  • Page 11 Parts list / 8236 Dual Fold Cylinder Mount Assembly. Date: Nov 2015 Fig. Part no. Description 760033078 Asy, Rear Fold Cylinder Mount 760032051 Center Frame Cross Brace Wdmt 760033081 Asy, Front Front Fold Cylinder Mount 600355028 Bolt, 5/8" X 2" GR. 8 600381052 Flat Washer, 5/8"...

  • Page 12: Center Lift Cylinders & Linkages Assembly

    Center Lift Cylinders & Linkages Assembly Instructions: -Hardware included in bag 760033014 -Attach lift cylinders and linkages as shown, using parts listed on next page. -On base end of cylinders, use pins which come with cylinders - pins shown are for repair only -Install leveling linkage as shown in image "A".
  • Page 13 Parts list / 8200 Center Lift Cylinders & Linkages Assembly. Date: Nov 2015 Fig. Part no. Description 7600474664 Cylinder 3 3/4” X 8” Welded Rephase - Monarch 760032057 Cylinder Linkage Wdmt 760032056 Leveling Linkage Tube Wdmt 600356101 Bolt, 1" X 5" GR. 5 600366032 Nut, Toplock 1"...

  • Page 14: Fold Cylinder Mount Assembly

    Fold Cylinder Mount Assembly Instructions: -Hardware included in bag 760033028 -Attach fold cylinder mount as shown, using hardware on next page.
  • Page 15 Parts list / 8200 Fold Cylinder Mount Assembly. Date: Nov 2015 Fig. Part no. Description 760033078 Asy, Fold Cylinder Mount 600355028 Bolt, 5/8" X 2" GR. 8 600381052 Flat Washer 5/8" - SAE 600366031 Nut, Toplock 5/8"...

  • Page 16: Single Point Assembly

    Single Point Assembly Instructions: -Hardware included in bag 760033016 -Assemble upright bracket and valve to frame as shown, using hardware listed on next page. Bracket should be placed 8" from center frame rail. -Assemble striker bolt and spring to outer tube wdmt. Insert inner tube through outer tube and connect together with crank.
  • Page 17 Parts list / 8200 Single Point Assembly. Date: Nov 2015 Fig. Part no. Description 760032021 Single Point Upright Wdmt 76101322 U-Bolt, 3/8”-16 X 4” X 5” 600382051 Lockwasher 3/8" 600365008 Nut, 3/8" 7600470491 Single Point Valve 600356148 Bolt, 5/16" X 2-1/2" GR. 5 600382050 Lockwasher, 5/16"...

  • Page 18: Light Stands & Safety Locks Assembly

    Light Stands & Safety Locks Assembly Instructions: -Hardware included in bags 760033014 & 760033015 -For ease of installation attach light stands and safety locks to center frame before attaching wing frames. -IMPORTANT: Light tubes should be mounted on stands as far inwards as possible to avoid inter- ference with some wing sizes.
  • Page 19 Parts list / 8200 Light Stands & Safety Locks Assembly. Date: Nov 2015 Fig. Part no. Description 760032024 Light Stand Wdmt 7600356163 Bolt, 3/8" X 2-3/4" GR. 5 600366028 Nut, Toplock 3/8" 760033116 Asy, Light Bar, LH 760033117 Asy, Light Bar, RH (not shown) 7600373128 U-Bolt, 3/8"...

  • Page 20: Hitch & Turnbuckle Assembly

    Hitch & Turnbuckle Assembly Instructions: -Hardware included in bags 760033012, 760033014, 760033015 & 760033016 (The hitch and components can be installed before or after the wing frames have been assembled to the center frame.) -Attach hitch, turnbuckle and components to center frame as shown, using hardware listed on next page.
  • Page 21 Parts list / 8200 Hitch & Turnbuckle Assembly. Date: Nov 2015 Fig. Part no. Description 760033082 Asy, Hitch 760031082 Hitch Pivot Pin 7600356163 Bolt, 3/8" X 2-3/4" GR. 5 600366028 Nut, Toplock 3/8" 760033027 Turnbuckle Assembly (Includes Items 22-25) 7600355110 Bolt, 1"...

  • Page 22: Wing Frame Assembly

    Wing Frame Assembly Instructions: -Hardware included in bags 760033013 & 760033020 -Bolt together wing frames as shown, using hardware listed on next page, and then attach to center frame. Use steel shop stands to support the wings until lift and fold hydraulics are installed and working.
  • Page 23 Parts list / 8200 Wing Frame Assembly. Date: Nov 2015 Fig. Part no. Description 760033088 Asy, Wing Frame, 5.5' Outer, LH (Models 8228, 8230, 8232, 8236) 760033086 Asy, Wing Frame, 7' Single, LH (Model 8226) 760033089 Asy, Wing Frame, 5.5' Outer, RH (Models 8228, 8230, 8232, 8236) (not shown) 760033087 Asy, Wing Frame, 7' Single, RH (Model 8226) (not shown) 760033102...

  • Page 24: Fold Cylinder Assembly

    Fold Cylinder Assembly Instructions: -Hardware included in bag 760033014 -Attach fold cylinders to center and wing frames as shown, using parts listed on next page. -Install cylinders with ports facing the rear. -On base end of cylinders, use pins which comes with cylinders - pins shown are for repair only. -8236 machine includes dual fold cylinders.
  • Page 25 Parts list / 8200 Fold Cylinder Assembly. Date: Nov 2015 Fig. Part no. Description 7600474667 Cylinder 4 1/2” X 30” Welded - Monarch (Model 8232) 7600474666 2(4) Cylinder 4" X 30" Welded - Monarch (Models 8236, 8230, 8228, 8226) 600383136 2(4) Pin 1"...

  • Page 26: Wing Rockshaft Assembly

    Wing Rockshaft Assembly Instructions: -Hardware included in bag 760033013 -Assemble rockshaft, spindles and wheels to wing frame as shown, using parts listed on next page. -Spindles and wheels can be installed to rockshaft assembly before or after rockshaft is attached to the frame -IMPORTANT: Install wheels to the spindles so the wheel rims are offset toward the wheel arms (Narrow setting).
  • Page 27 Parts list / 8200 Wing Rockshaft Assembly. Date: Nov 2015 Fig. Part no. Description 760033075 Asy, Wing Rockshaft, LH 760033076 Asy, Wing Rockshaft, RH (not shown) 760035257 Block, Wing Rockshaft 600355067 Bolt, 3/4" X 7-1/2" GR. 8 600366024 Nut, Toplock 3/4" 763011121 6 X 6 Hub (G35-6) &...

  • Page 28: Wing Rockshaft Parts

    Wing Rockshaft Parts...
  • Page 29 Parts list / 8200 Wing Rockshaft Parts. Date: Feb 2016 Fig. Part no. Description 760036102 Wing Rockshaft, Narrow 760032011 Wing Tandem 763012199 Spindle 2" O.D. x 15" w/Hole 763012198 Spindle 2" O.D. x 15" w/Hole Complete (Includes Items 3, 10, 11, 22) 763011269 6 Bolt Hub - 6"...

  • Page 30: Wing Lift Cylinder & Linkage Assembly

    Wing Lift Cylinder & Linkage Assembly Instructions: -Hardware included in bags 760033013 & 760033014 -Attach lift cylinder and linkage as shown, using parts listed on next page. -On base end of cylinders, use pins which comes with cylinders - pins shown are for repair only. -Adjust eyebolt to initial setting of about 4 3/8"...
  • Page 31 Parts list / 8200 Wing Lift Cylinder & Linkage Assembly. Date: Nov 2015 Fig. Part no. Description 7600474665 Cylinder 3 1/2” X 8” Welded Rephase - Monarch 760033074 Asy, Cylinder Linkage 760032059 Leveling Linkage Tube Wdmt 600356101 Bolt, 1" X 5" GR. 5 600366032 Nut, Toplock 1"...

  • Page 32: Vibro Tine Assembly Option

    Vibro Tine Assembly (Option) Instructions: -Install tine/coil assemblies onto cultivator. -Use tine layouts in Tine & Harrow Layout Manual 760000218 for proper placement. 1. Place coil clamp and bolt onto frame 2. Insert tine/coil assembly through clamp and bolt to frame. -Tighten bolt so that front of clamp bends down about 10°.
  • Page 33 Parts list / 8200 Tine Assembly. Date: Now 2015 Fig. Part no. Description 101003154 16.3mm Coil 101003159 13.3mm Coil 101000837 Stem 50mm x 10mm 760031123 16.3mm Coil Clamp 760031122 13.3mm Coil Clamp 6100323128 M12 x 48mm Share Bolt with Hex Nut 600355030 Bolt, 5/8"...

  • Page 34: C-Shank Assembly Option

    C-Shank Assembly (Option) Instructions: -Use 6" tine layouts in Tine & Harrow Layout Manual 760000218 for proper placement of shanks. 1. Attach quick change bracket to c-shank assembly. 2. Detach spring from top bolt and install c-shank assembly on implement with u-bolt. 3.
  • Page 35 Parts list / 8200 C-Shank Assembly. Date: Nov 2015 Fig. Part no. Description 7601000556 Pivot Bracket Wdmt 7601000557 Tower Wdmt 7601000550 Inner Pivot Bushing 7600383218 2-7/8" Connex Bushing Items 1-21 & 24 included in 601000501 C-Shank Stem 760034005 C-Shank Assembly 601000511 Spring Insert - Top 601000512...

  • Page 36: Gauge Wheel Assembly

    Swivel Gauge Wheel Assembly Instructions: -Mounting hardware included in bag 760033065 -After tines have been installed, assemble gauge wheel to outer front corner of wing frame as shown, using the parts listed on next page. -Location will vary depending on tine spacing (gauge wheel not to extend beyond frame edge). -RH gauge wheels will be installed on left side of machine;...

  • Page 37: Gauge Wheel Parts

    Parts list / 8200 Gauge Wheel Assembly. Date: Feb 2016 Fig. Part no. Description 760033063 Swivel Gauge Wheel Assembly, RH 760033064 Swivel Gauge Wheel Assembly, LH (not shown) 760035229 Plate, Mounting 600356123 Hex Bolt, 5/8" X 6" GR. 5 600366031 Nut, Toplock 5/8"...

  • Page 38: Rear Jack Assembly

    Rear Jack Assembly Instructions: -Install rear jack bracket onto rear bar of center mainframe with hardware provided. It is recom- mended to located bracket as near to the center of the cultivator as possible for better stability.
  • Page 39 Parts list / 8200 Rear Jack Assembly. Date: March 2014 Fig. Part no. Description 760032058 Rear Jack Bracket 600356134 Bolt, 1/2" X 5-1/2" GR.5 600382053 Lockwahser, 1/2" 600365009 Nut, 1/2" 601231223 Jack TWL 190 DL-B...

  • Page 40: Hydraulic Tree Assembly

    Hydraulic Tree Assembly Instructions: -Hardware included in bag 760033015. Fittings included in hydraulic kits. -Attach hydraulic hose tree to fold cylinder base weldment using hardware listed on next page. -Locate tree directly above the inner frame rail on the left mainframe. -It is recommended to install bulkhead fittings (included in hydraulic kit) one at a time from top down while routing hydraulic hoses.
  • Page 41 Parts list / 8200 Hydraulic Tree Assembly. Date: August 2014 Fig. Part no. Description 760032020 Fold Cylinder Base Mount Wdmt 760031115 Hyd Hose Tree 7600373129 U-Bolt, 3/8" x 3" x 2-3/4" 600382051 Lock Washer, 3/8" 600365008 Standard Nut, 3/8" 7600470474 #6 MJIC Bulkhead Tee 7600470475 #8 MJIC Bulkhead Tee...

  • Page 42: Lift Hydraulics 26.5

    Lift Hydraulics 26.5' Instructions: -Hardware included in bag 760033015 & 760033016 -Connect hydraulic fittings and hoses as shown in this schematic. Refer to Appendix A for de- tailed routing information. -Secure hoses with hold downs provided.
  • Page 43 Parts list / 8226 Lift Hydraulics 26.5'. Date: Nov 2015 Fig. Part no. Description 7600470478 Hyd Hose - 3/8" x 1/2" MPT x #8 FJIC - 204" 76202277 3/8" x 336" x 1/2" MPT x #8 FJIC Hose 7600470479 Hyd Hose - 3/8" x #8 FJIC x #8 FJIC - 170" 7600470480 Hyd Hose - 3/8"...

  • Page 44: Lift Hydraulics 28.5

    Lift Hydraulics 28.5' Instructions: -Hardware included in bag 760033015 & 760033016 -Connect hydraulic fittings and hoses as shown in this schematic. Refer to Appendix A for de- tailed routing information. -Secure hoses with hold downs provided.
  • Page 45 Parts list / 8228 Lift Hydraulics 28.5'. Date: Nov 2015 Fig. Part no. Description 7600470478 Hyd Hose - 3/8" x 1/2" MPT x #8 FJIC - 204" 76202277 3/8" x 336" x 1/2" MPT x #8 FJIC Hose 7600470479 Hyd Hose - 3/8" x #8 FJIC x #8 FJIC - 170" 7600470480 Hyd Hose - 3/8"...

  • Page 46: Lift Hydraulics 30.5

    Lift Hydraulics 30.5' Instructions: -Hardware included in bag 760033015 & 760033016 -Connect hydraulic fittings and hoses as shown in this schematic. Refer to Appendix A for de- tailed routing information. -Secure hoses with hold downs provided.
  • Page 47 Parts list / 8230 Lift Hydraulics 30.5'. Date: Nov 2015 Fig. Part no. Description 7600470478 Hyd Hose - 3/8" x 1/2" MPT x #8 FJIC - 204" 76202277 3/8" x 336" x 1/2" MPT x #8 FJIC Hose 7600470479 Hyd Hose - 3/8" x #8 FJIC x #8 FJIC - 170" 7600470480 Hyd Hose - 3/8"...

  • Page 48: Lift Hydraulics 32.5

    Lift Hydraulics 32.5' Instructions: -Hardware included in bag 760033015 & 760033016 -Connect hydraulic fittings and hoses as shown in this schematic. Refer to Appendix A for de- tailed routing information. -Secure hoses with hold downs provided.
  • Page 49 Parts list / 8232 Lift Hydraulics 32.5'. Date: Nov 2015 Fig. Part no. Description 7600470478 Hyd Hose - 3/8" x 1/2" MPT x #8 FJIC - 204" 76202277 3/8" x 336" x 1/2" MPT x #8 FJIC Hose 7600470479 Hyd Hose - 3/8" x #8 FJIC x #8 FJIC - 170" 7600470480 Hyd Hose - 3/8"...

  • Page 50: Lift Hydraulics 36.5

    Lift Hydraulics 36.5' Instructions: -Hardware included in bag 760033015 & 760033016 -Connect hydraulic fittings and hoses as shown in this schematic. Refer to Appendix A for de- tailed routing information. -Secure hoses with hold downs provided.
  • Page 51 Parts list / 8236 Lift Hydraulics 36.5'. Date: Nov 2015 Fig. Part no. Description 7600470478 Hyd Hose - 3/8" x 1/2" MPT x #8 FJIC - 204" 76202277 3/8" x 336" x 1/2" MPT x #8 FJIC Hose 7600470479 Hyd Hose - 3/8" x #8 FJIC x #8 FJIC - 170" 7600470480 Hyd Hose - 3/8"...

  • Page 52: Fold Hydraulics

    Fold Hydraulics Instructions: -Hardware included in bag 760033015 & 760033016 -Connect hydraulic fittings and hoses as shown in this schematic. Refer to Appendix A for de- tailed routing information. -Secure hoses with hold downs provided. DETAIL A SCALE 1 : 6 Dual Fold Cylinders (8236 Only) DETAIL A SCALE 1 : 6...
  • Page 53 Parts list / 8200 Fold Hydraulics. Date: Nov 2015 Fig. Part no. Description 7600470488 Hyd Hose - 1/4" x 1/2" MPT x #6 FJIC - 336" 76202213 1/4" x 24" x 6 FJIC x 6 FJIC Hose 76202257 1/4" x 64" x 6 FJIC x 6 FJIC Hose 7600470489 Hyd Hose - 1/4"...

  • Page 54: Cylinder Parts

    Cylinder Parts Lift Cylinder Fold Cylinder...
  • Page 55 Parts list / 8200 Cylinder Parts. Date: March 2014 Fig. Part no. Description 7600474664 Cylinder 3 3/4" X 8" Welded Rephase - Monarch 7600474669 Clevis 7600474670 Seal Repair Kit 7600474665 Cylinder 3 1/2" X 8" Welded Rephase - Monarch 7600474669 Clevis 7600474671 Seal Repair Kit...

  • Page 56: Light Kit Assembly

    Light Kit Assembly Instructions: -Connect electrical wiring from light kit as shown in the schematic below. Refer to Appendix A for detailed routing information. -Secure wiring with cable ties. 2-Pin Connector 3-Pin Connector 4-Pin Connector 4-Pin Connector 3-Pin Connector 2-Pin Connector...
  • Page 57 Parts list / 8200 Light Kit Assembly. Date: May 2015 Fig. Part no. Description 760033006 8200 Series Light Kit 760031240 Harness, 30' Lead w/7-Pole Ag Plug 760031241 Harness, 11' - Y, LH 760031242 Harness, 15' - Y, RH 760031243 Tail Light, Red...

  • Page 58: Rear Hitch (Optional)

    Rear Hitch Assembly (Optional) Instructions: -Hardware included in bag 760033026 -Remove the two rear bolts connecting the center frame halves. -Attach the rear hitch weldment to the cultivator center frame using u-bolts provided. -Loosely attach the support arm and spacers to cultivator where the two bolts were removed. Use the u-bolts provided to attach the support arm to the rear hitch and tighten up all hardware.
  • Page 59 Parts list / 8200 Rear Hitch Assembly. Date: Nov 2015 Fig. Part no. Description 760032053 Rear Hitch Weldment 760032054 Support Arm Weldment 760031153 Telescoping Drawbar 1" 760031162 Support Arm Spacer 600373058 U-bolt, 5/8" X 4 X 5-1/2" 600373056 U-bolt, 5/8" X 3 X 5-1/2" 600356116 Bolt, 5/8"...

  • Page 60: Rear Hitch Hydraulic Kit (Optional)

    Rear Hitch Hydraulic Kit Assembly (Optional) INSTALLING REAR HITCH HYDRAULIC KIT- 760034003U -Requires Optional Rear Hitch 760034002U -Harware included in bag 760033032 1. Attach coupler mount bracket (1) to rear hitch using 1/2” x 1-1/4" cap screws (7) and 1/2” lock nuts (8) 2.
  • Page 61 Parts list / 8200 Rear Hitch Hydraulic Kit. Date: Feb 2016 Fig. Part no. Description 760035192 Bracket, Coupler Mount 7600470510 Hose 3/8"-8MP-8MP-432" LG 7600470496 Coupler, 1/2" Female-8FP Push/Pull 600470110 Coupler, 1/2" Male-8FP 7600407054 Ring, Ext. Retaining-1.50" x .05" 7600470498 Clamp, Hose Holder 600356103 Bolt, 1/2"-13 x 1.25"...

  • Page 62: Rear Hitch Light Extension Kit (Optional)

    Rear Hitch Light Kit Extension (Optional) INSTALLING REAR HITCH LIGHT KIT EXTENSION - 760034006U -Requires Optional Rear Hitch 760034002U 1. Attach coupler mount bracket using 3/8” x 1” bolts (3) and toplock nuts (4). 2. Run extension wiring harness (2) through cut out in left arm of rear hitch and down inside arm. Note: If installing optional hydraulic kit, run hoses and harness at same time.
  • Page 63 Parts list / 8200 Rear Hitch Light Kit Extension. Date: Feb 2016 Fig. Part no. Description 760031213 Bracket, 7 Pole Socket Mount 760031214 Harness, 8' Extension w/ 7 Pole Socket 600356020 Bolt, 3/8" x 1" GR. 5 600366028 Nut, Toplock, 3/8" 600356106 Bolt, 5/16"...

  • Page 64: Decal List

    Decal List...
  • Page 65 Parts list / 8200 Decal List. Date: Nov 2015 Fig. Part no. Description 7600475294 Decal, Kongskilde 7600475306 Decal, 8200 7600475304 Decal, Kongskilde 8200, LH 7600475305 Decal, Kongskilde 8200, RH 7600475296 Decal, Kongskilde M/A, Gradient 7600475295 Decal, Kongskilde M/A 7600475258 Decal, 8200 Depth Gauge...

  • Page 66: Assembly Completion

    Assembly Completion After assembly is complete, charge the wheel lift cylinders with a tractor or hydraulic unit, fully extending and retracting the cylinders several times. Hold the hydraulic lever open at the end of the stroke to purge the air from the system. Fully extend the lift cylinders and install the transport safety locks onto the center lift cylinders.

  • Page 67: Appendix A - Hydraulic Hose Routings

    Appendix A Hydraulic Hose Routing Details Route hoses along hitch Route hoses to single point From Tractor To Hydraulic Tree 3/8" Hoses on outside Route hoses along mainframe to hydraulic tree. Locate cross fittings behind front fold cylinder cross brace. Model 8236 Only 3/8"...
  • Page 68 Appendix A Route hoses to fold cylinders Safety Lighting Wire Routing Details Route light wiring from hitch to rear of machine following the hydraulic hoses. Route around fold cylinder mount and between rear fold stop plates Route wiriing up light stands to lights as shown Rear View Left Side...

  • Page 69: Appendix B Torque Chart

    Appendix B Torque Chart...

  • Page 70: Appendix C - Decal Locations

    Appendix C Decal Locations...
  • Page 71 Appendix C...
  • Page 72 Notes:________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________...
  • Page 74 760000216 February 2016...
