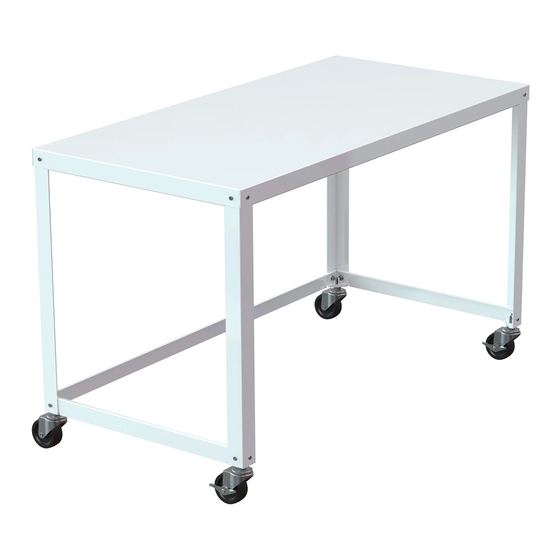

- Page 1 ASSEMBLY INSTRUCTIONS LOFT WRITING DESK WITH STEEL FRAME, WOOD SURFACE...
- Page 2 Desktop maximum weight capacity = 150 lbs...
-
Page 3: Replacement Parts
PARTS AND HARDWARE LIST EXTRA HARDWARE INCLUDED FOR YOUR CONVENIENCE. ITEMS ARE NOT SHOWN TO SCALE. PART DESCRIPTION STOCK NO Desktop Frame Desktop Back Support Bar Side Support Bar Caster HARDWARE KIT STOCK # - READ THE INSTRUCTION MANUAL BEFORE ASSEMBLING. DESCRIPTION PART - REMOVE ALL PIECES BEFORE BEGINNING INSTALLATION. - Page 4 ASSEMBLY INSTRUCTIONS NOTE: Some of the screws are of similar length. Observe carefully which screw is needed before beginning each step. STEP 1 Attach the legs (2) to the desktop frame (1) using eight screws (A). A x 8 STEP 2 (i) Align the side support bars (5) with the legs (2).
- Page 5 ASSEMBLY INSTRUCTIONS STEP 3 Screw a caster (6) into the bottom of each leg. STEP 4 Attach the assembled frame to the desktop (3) with four screws (D) using the brackets on the desktop frame (1). D x 4...
-
Page 6: Safety And Maintenance
SAFETY AND MAINTENANCE • DO NOT stand on the desk. Do not use the desk as a stepladder. • • Every 6 months, check all bolts and screws to ensure they are tight.
