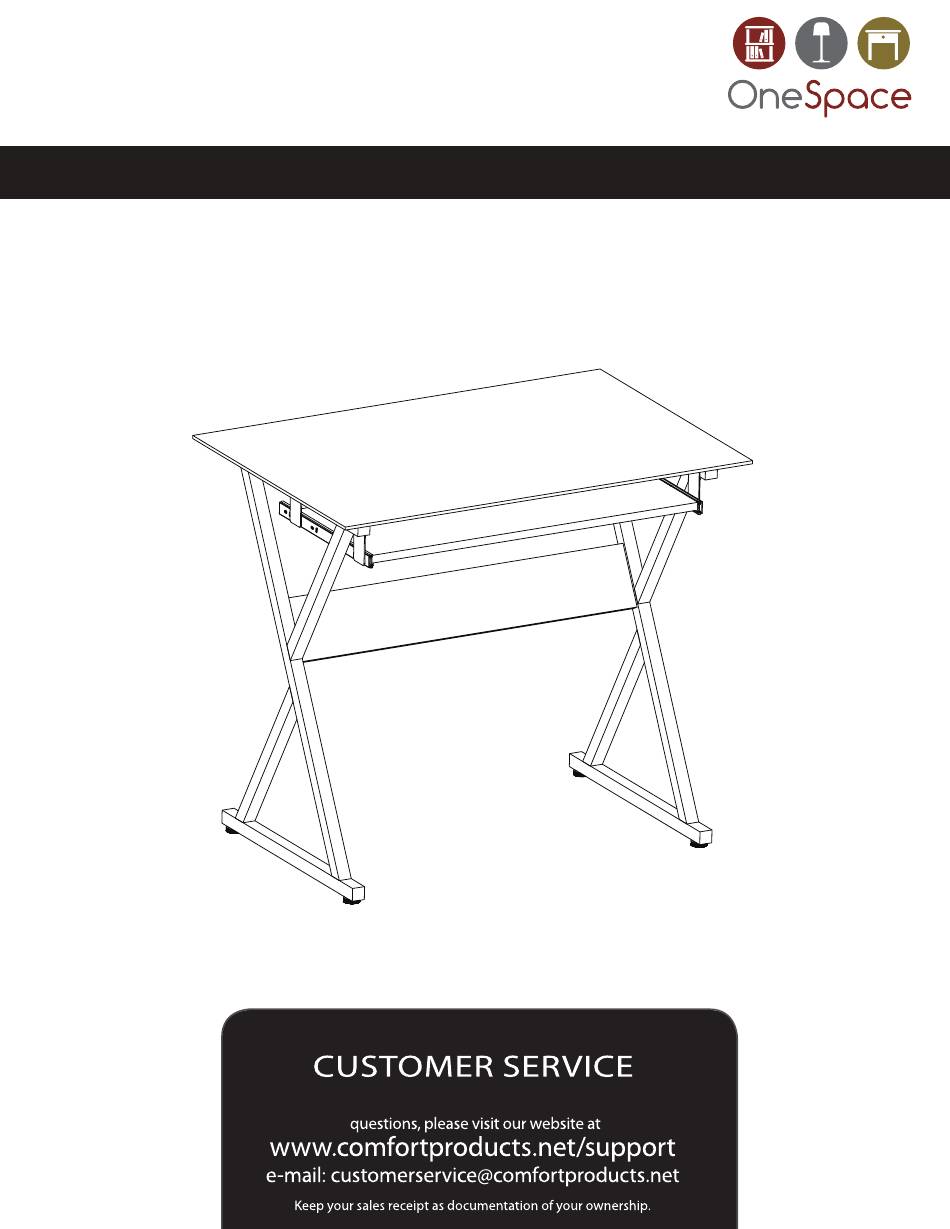

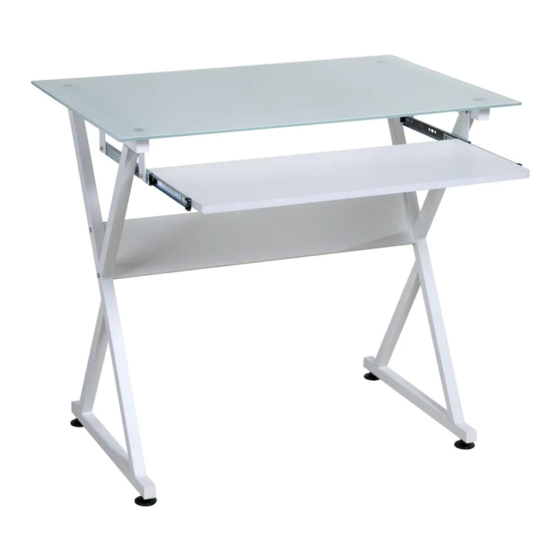

- Page 1 ™ OneSpace is a Trademark of Comfort Products, Inc. ASSEMBLY INSTRUCTIONS MODEL # 50-JN1201 SUPPLIER CODE: JNFF ULTRAMODERN GLASS COMPUTER DESK For fastest service on claims, requests for replacement parts, or...
- Page 2 weight capacity = 165lbs weight capacity = 33lbs 2 OF 7...
-
Page 3: Cleaning And Care
PARTS AND HARDWARE LIST (50-JN1201) EXTRA HARDWARE INCLUDED FOR YOUR CONVENIENCE. ITEMS ARE NOT SHOWN TO SCALE. PART DESCRIPTION STOCK NO Hardware Kit STOCK#50-JN1201HA PART DESCRIPTION QTY. 51-JN1201DT Desktop M6X30MM M5.5X55MM Keyboard Tray M6X12MM 51-JN1201KT M4X14MM M4X6MM Back Board 51-JN1201BB... -
Page 4: Assembly Instruction
ASSEMBLY INSTRUCTION (50-JN1201) DO NOT TIGHTEN SCREWS UNTIL COMPLETELY ASSEMBLED STEP 1 Attach Steel Plates (H) to Tray Slide (F) using four screws (5) and four nuts (6). 4Pcs Here the back of the slide is shown. In each slide, place screws in the holes indicated above. - Page 5 ASSEMBLY INSTRUCTION (50-JN1201) DO NOT TIGHTEN SCREWS UNTIL COMPLETELY ASSEMBLED STEP 3 Attach back board (C) to left stand (D) and right stand (E) using four screws (2). 4Pcs STEP 4 Attach the keyboard shelf (B) to drawer slide (F) using four screws (4).
- Page 6 ASSEMBLY INSTRUCTION (50-JN1201) DO NOT TIGHTEN SCREWS UNTIL COMPLETELY ASSEMBLED STEP 5 Attach Desktop (A) to Left Stand (D) and Right Stand (E) using four screws (1). 4Pcs 6 OF 7...
- Page 7 The weight capacity of the tabletop is 165 pounds and the capacity of the keyboard is 33 pounds. For claims or questions concerning this warranty, please visit www.comfortproducts.net or email us at customerservice@comfortproducts.net. MODEL#: 50-JN1201 Comfort Products, Inc. P.O. Box 999 Memphis, TN 38101 www.comfortproducts.net customerservice@comfortproducts.net ™ OneSpace is a Trademark of Comfort Products, Inc. 7 OF 7...
