Cell Meter Test Program - RC-Plus C-BOX 200 DUO Instruction Manual

BALANCE CHARGE - STATUS
Program Operation Time Program Operation Time
Current Current
Selected Program Selected Program
Input Voltage/Power Input Voltage/Power
Output Voltage/Power Output Voltage/Power
Temperature Temperature

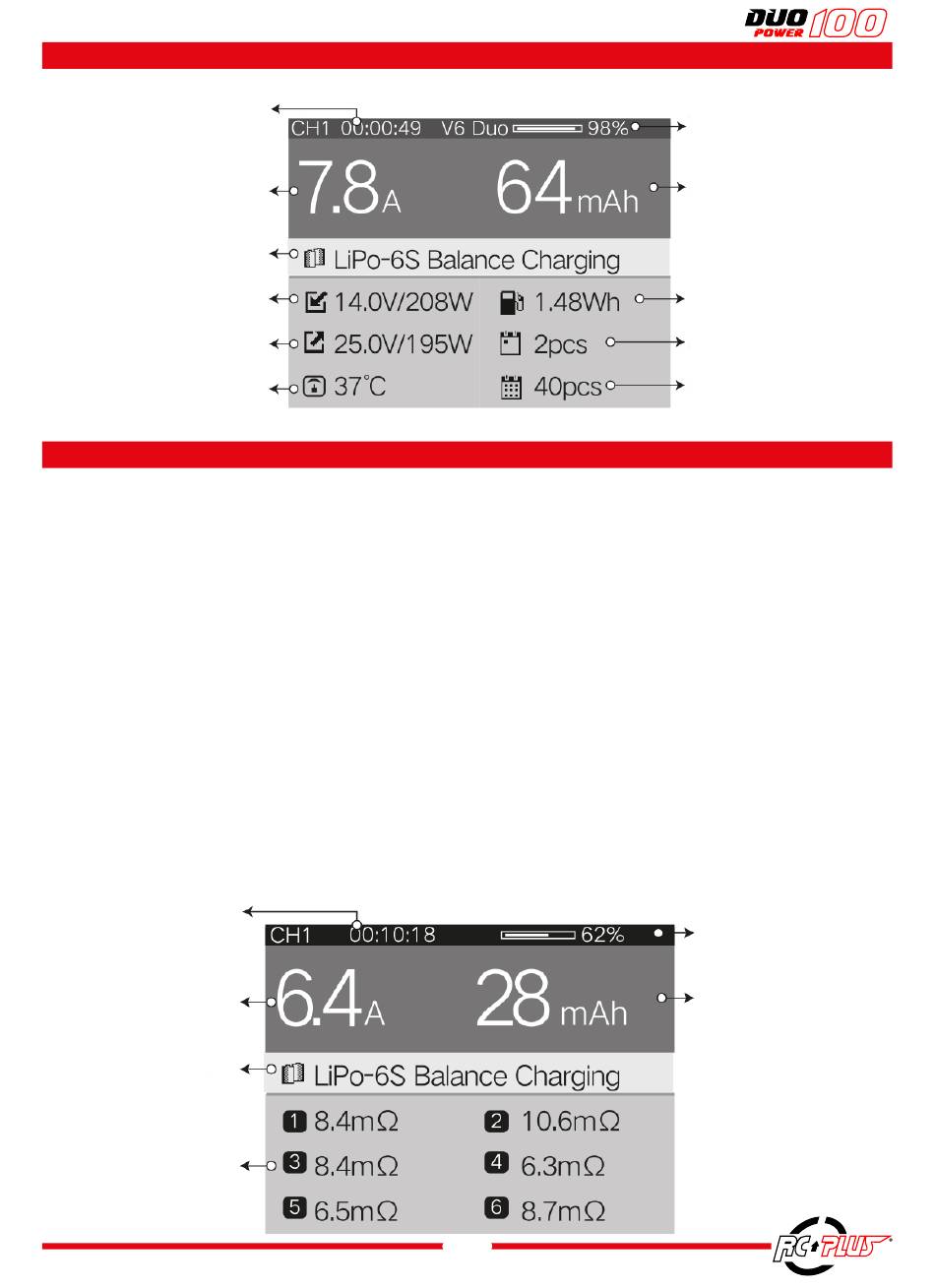

CELL METER TEST PROGRAM

This charger is equipped with a built-in high-speed microprocessor, it can be
used as a cell tester and indicates the resistance of each cell.
This evaluation does not give an absolute value as a professional internal resist-
ance tester would because of the difference in the test method, so that here the
internal resistance value is only suitable for a comparison between the cells of
the battery.
For example, to confirm the consistency of a battery's performance or to refer to
the performance of different batteries, a high or low charging current will affect
the accuracy of the internal resistance value tests. A higher charging current is
required for large capacity batteries with low internal resistance so the internal
resistance value will be more accurate.
Program Operation
Time
Current
Selected Program
Cell IR value
11
Battery capacity %
(calculated)
Capacity charged Capacity charged
Total Output Power Total Output Power
Completed Charges Completed Charges
Total of Completed Total of Completed
Charges Charges
Battery capacity %
(calculated)
Capacity charged
