CELL METER TEST PROGRAM

DATA STORAGE

This charger is equipped with a built-in high-speed micro-
processor, it can be used as a cell tester and indicates the
voltage of each cell, the total voltage of the battery pack and
the highest / lowest voltage.

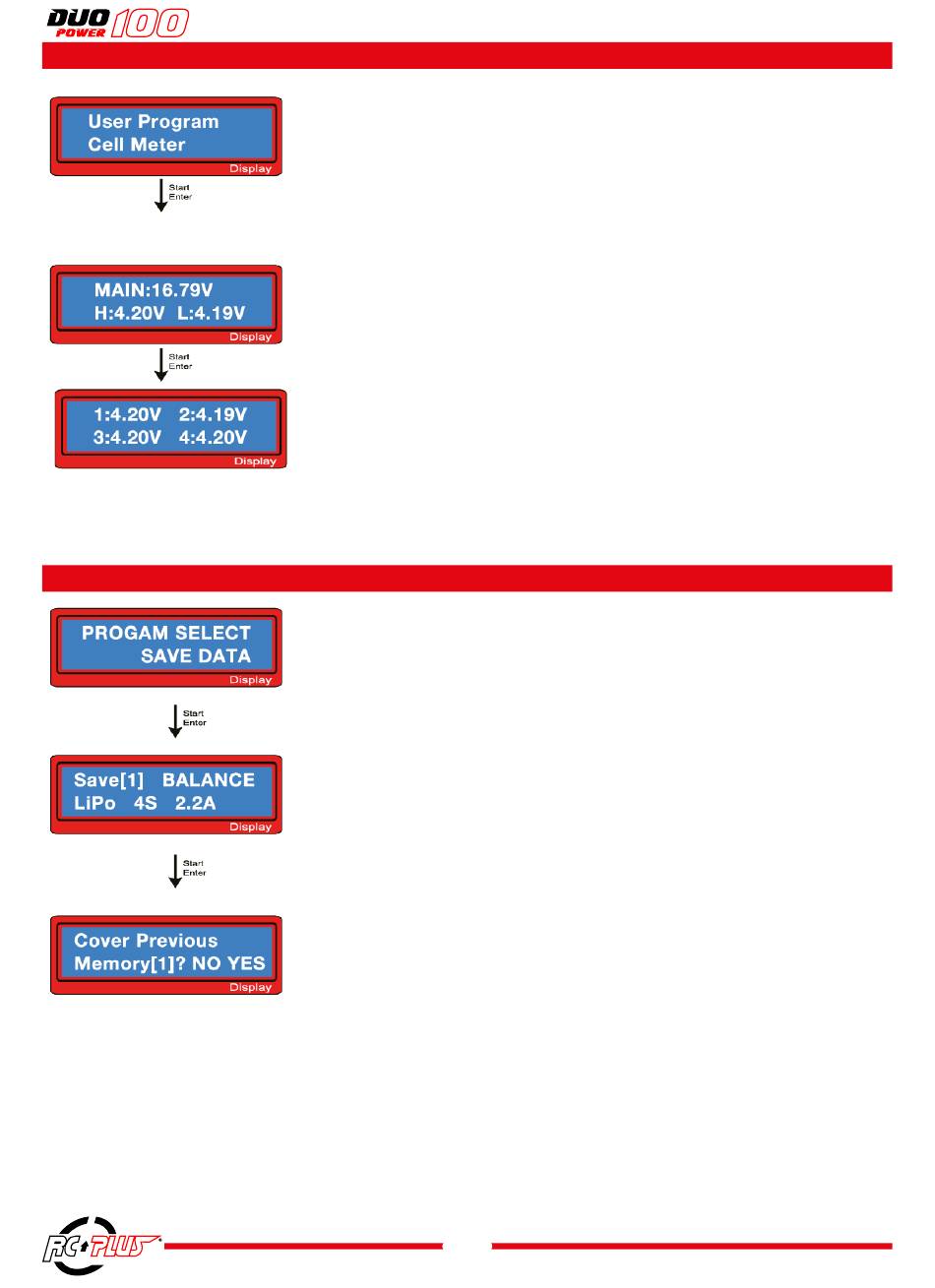

Select the CELL METER program and press START
Press the START button to display the highest / lowest voltage
of each cell and the total battery voltage.
Press START to display the voltage from 1 to 4 cells. Press the
STOP button to return to the main menu.
The charger includes a data storage and charging program
for 10 batteries. Each number represents the individual data
of one battery. They can be recalled for the charge/discharge
process without having to set up the program again.
Define the parameters of the battery you want to save. The
example here shows a LiPo battery. Choose the LiPo charging
program, then set the parameters of the LiPo battery, once
the setup is complete, exit this program and select the data
backup program. Select the number you wish to assign to the
battery for the next use. Press the ENTER key to enter the
data backup interface.
Press ENTER to save the data.
