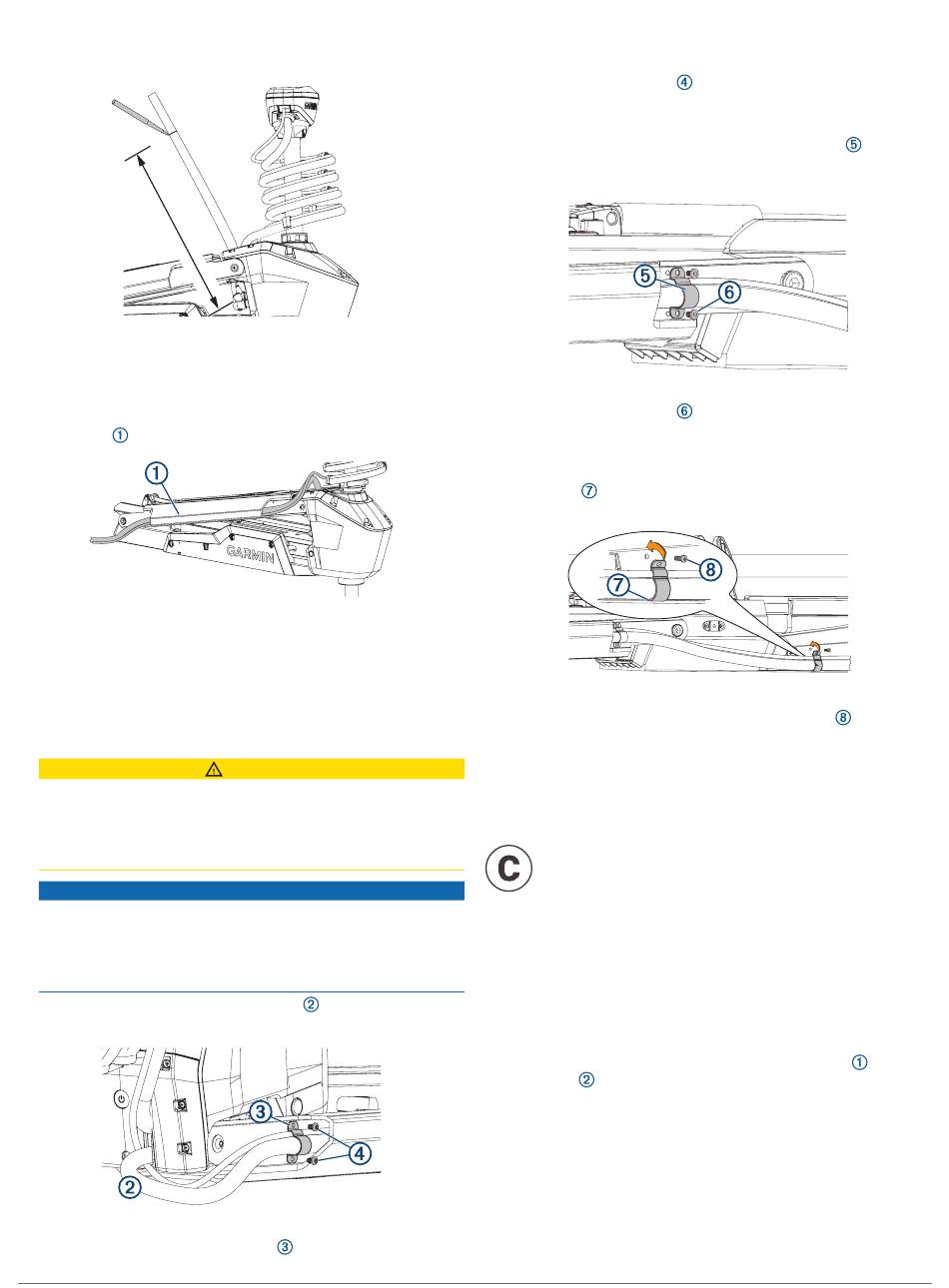

1
Measure approximately 40 cm (16 in.) on the power cable
from where it connects to the steering servo housing, and
look for the mark on the cable applied at the factory.
2
If you do not see a mark on the cable, or if the mark is not
approximately 40 cm (16 in.) from the connection, make a
mark with a marker or tape.
3
With the motor in the deployed position, route the transducer
cable through the channel along the right (starboard) side of
the mount
.
TIP: To determine the right (starboard) side of the mount,
stand in a location where you can read the information on the
display panel.
4
Route the power cable through the channel above the
transducer cable.
5
Using the pull cable, carefully lift the motor from the deployed
position to the stowed position.
Because only one of the lift-assist gas springs is secured at
this point in the installation, you must use caution when lifting
the motor to the stowed position. The weight of the motor
may cause the mount to move quickly and pinch or crush
hands or fingers.
You must secure the cables to the mount with the motor in
the stowed position. If you complete this procedure with the
motor in the deployed position, the cables are not at their fully
extended length, and the added stress may damage the
cables during use.
6
Leaving a rounded bend in the cables
the side of the mount where they enter the channel.
7
At the marked location on the power cable, place one of the
brackets that has two screw holes
CAUTION
NOTICE
, hold them against
over the cables and
against the mount, aligning the holes on the bracket with the
holes on the mount.
8
Using a 3 mm hex bit or wrench, secure the bracket to the
mount using two screws
9
Hold the cables against the bottom of the mount where they
exit the channel.
10
Place the other bracket that has two screw holes
cables and against the mount, aligning the holes on the
bracket with the holes on the mount.
11
Using a 3 mm hex bit or wrench, secure the bracket to the
mount using two screws
12
Hold the cables against the plastic portion of the mount base,
close to the boat deck.
13
Insert the lower tab on the remaining bracket into a slot below
the cables
, and rotate the bracket toward the mount base
to hold the cables.
14
Using a #1 Phillips screwdriver, secure the upper tab of the
bracket to the mount base using a single screw
15
Install additional plastic cable clips to secure the transducer
cable to the power cable where needed (optional).
Two plastic cable clips are included in the parts bag.
Securing the Lower Gas Spring
Label identifying the parts bag required for this procedure:
NOTE: This procedure uses the rest of the hardware in the parts
bag that you used when installing the upper gas spring.
1
If necessary, transition the trolling motor from the deployed to
the stowed position.
If the gas spring is positioned on the other side of the mount
after you stowed the motor, you may need to lift up the mount
and flip over the gas spring so you can secure it to the
mount.
2
Align the hole on the base of the lower gas spring
safety rod
, and press down.
.
over the
.
.
with the
5
