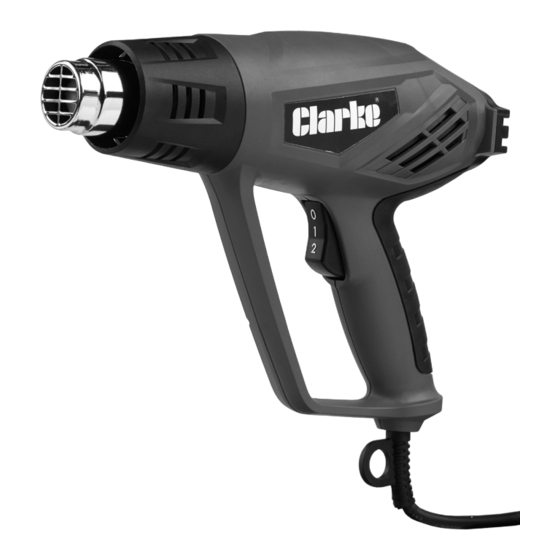

- Page 1 HOT AIR GUN MODEL NO: CHG2000C PART NO: 3400764 USER INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0618 ISS 2...
-
Page 2: Specification
INTRODUCTION Thank you for purchasing this CLARKE Hot Air Gun. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: General Safety Rules
IMPORTANT Please read all of the safety and operating instructions carefully before using this product. The following safety symbols may be found on the product. Read this instruction Wear protective gloves booklet carefully before use. Wear eye protection Wear dust mask. GENERAL SAFETY RULES WARNING: WHEN USING ELECTRIC TOOLS, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC... -
Page 4: Care Of Power Tools
CARE OF POWER TOOLS 1. Read this manual carefully. Learn the tool’s applications and limitations, as well as the specific potential hazards peculiar to it. 2. Always disconnect the power tool from the power supply before carrying out any repairs or changing of accessories. 3. -
Page 5: Environmental Recycling Policy
7. Be aware that heat generated by the hot air gun could cause nearby materials to ignite - particularly in confined spaces. Take all necessary precautions - have a fire extinguisher or means to extinguish a fire to hand. 8. Be aware that fumes given off by paint could be toxic. Take all necessary precautions - consult paint manufacturer etc where necessary. -
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. -
Page 7: Product Overview
PRODUCT OVERVIEW NO DESCRIPTION DESCRIPTION Handle for Triangular Shave Hook Concentrator Nozzle Moulded Plastic Carry Case Glass Protection Nozzle Hot Air Gun Reflector Nozzle Triangular Shavehook (scraper) Diffuser Nozzle INVENTORY CHECK Before starting work, please check contents against the list above and advise your dealer immediately if any parts are missing. -
Page 8: Operation
OPERATION Before starting work it is recommended that you heat a test piece to ensure you have the correct heat setting. In addition you should always take steps to protect sensitive or delicate areas where the effect of heat could cause damage (i.e. -
Page 9: Removing Paint From Window Frames
• Normally only one pass is required to remove both thick and thin layers of paint. REMOVING PAINT FROM WINDOW FRAMES DO NOT point the gun directly at glass and always ensure it is adequately protected. A glass protection nozzle is provided for use when stripping window frames etc. -
Page 10: Thawing Water Pipes
THAWING WATER PIPES Fit the reflector nozzle to the front of the hot air gun. 1. Always heat frozen areas inwards from the edge to the centre. 2. Take special care when defrosting plastic pipes. 3. Provide protection against heat damage to nearby paint and wall coverings where necessary. -
Page 11: Component Parts And Maintenance
COMPONENT PARTS AND MAINTENANCE Power Cable Insulator Cable Sleeve Heating Element Assembly Connecting Wire Mica Sleeve Terminal Capacitor Tube Capacitor 0.47uF Front Cover Switch Handle Grip Diode Screw ST3x14 Rear Enclosure Cable Clamp Rectifier Housing - Lefthand Motor Screw ST3x16 Screw M2.5x4 Housing - Righthand Screw st3x13...
