Summary of Contents for DMP Electronics 780

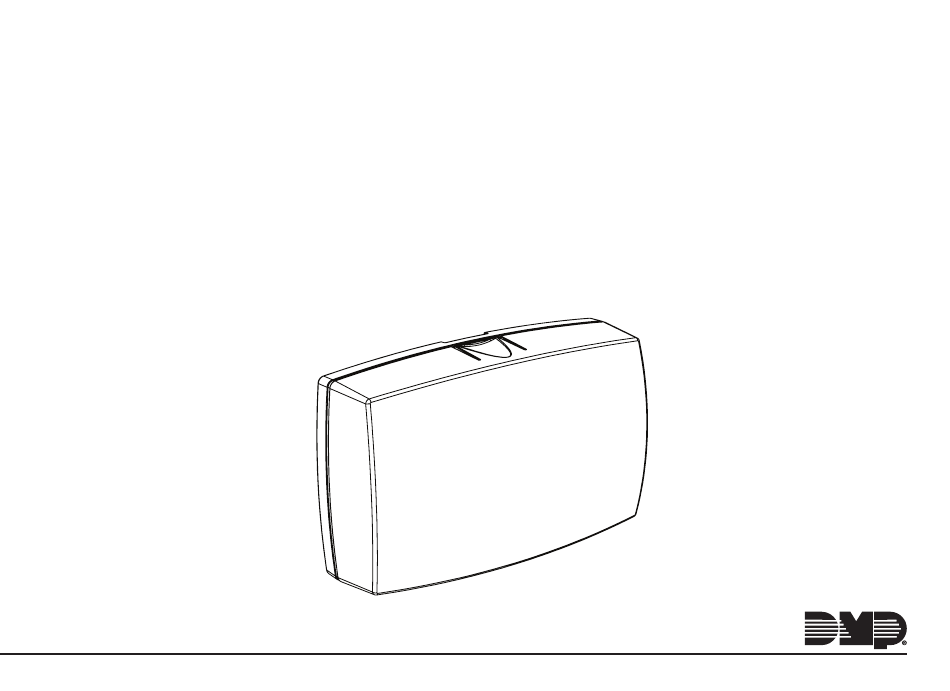

- Page 1 780 Keypad Demonstrator Module INSTALLATION AND PROGRAMMING GUIDE...
-
Page 3: Table Of Contents
TABLE OF CONTENTS About the 780 ..........1 Program Keypads for Fire Panic Demonstrations ........10 Compatibility ............1 Icon Series Keypad ..........10 Included Items ............1 Fire Key (F 1) ............10 780 Features ..........2 Thinline Keypad ............ 11 7800 Keypad ............11 Install the 780 ..........3... - Page 4 780 Demonstration ........16 Keypad Operation ..........16 User Menu Options ..........17 Keypad Shortcut Key Options .......19 7800 Keypads Carousel Menu Options ............20 Arm an Area System ......... 21 Arm an All/Perim and H S A Systems ..........22 Disarm an Area System ........23 Disarm an All/Perim and H S A Systems ..........24...
-
Page 5: About The 780
ABOUT THE 780 The DMP 780 Keypad Demonstrator Module is a portable module that connects to any DMP Thinline, Icon Series, or 7800 Series Graphic Touchscreen keypad to demonstrate keypad operation for sales and training presentations. The module can demonstrate the Area, All/Perimeter, or Home/Sleep/Away systems and can simulate arming and disarming. -
Page 6: 780 Features
780 FEATURES Thinline Keypad 4-Wire Harness from Keypad to 780 Module J2 or J8 Connector 780 Demo Module DC Power Supply Connection 699 DMP Desk Stand Figure 1: Product Features 780 Installation and Programming Guide Digital Monitoring Products, Inc. -
Page 7: Install The 780
INSTALL THE 780 Mount the Demo Module The 780 can be permanently mounted to the lower section of any Model 699 DMP Keypad Desk Stand. Use the included adhesive foam or screws to attach the demo module to the desk stand base. -
Page 8: Power Up To Demo Module
Battery Operation for Thinline or Icon Series Use the following steps to install and activate 9 VDC Battery operation. Squeeze the top and bottom of the 780 module case to remove the cover. Install the 9 VDC battery in the battery compartment. Observe polarity when installing the battery. - Page 9 To Keypad To Keypad Battery Power Compartment MODEL Supply BATTERY ON/OFF DC Power Supply Plug Figure 2: 780 PCB Layout and Power Options Digital Monitoring Products, Inc. 780 Installation and Programming Guide...
-
Page 10: Connect The Keypad
Connect the opposite end of the 4-wire harness to the 4-wire header in the top of the 780 housing. When using a second keypad, connect the second 4-wire harness to the 4-wire header. Note: It is not necessary to remove the 780 module cover to complete the keypad connection. 780 Installation and Programming Guide... - Page 11 Plug the terminal end onto the right edge of the 12-pin header in the back of the keypad. Snap the keypad cover onto the base. Connect the opposite end of the 4-wire harness to the 4-wire header in the top of the 780 housing. Digital Monitoring Products, Inc. 780 Installation and Programming Guide...
-
Page 12: Program Keypads For Demonstrations
(INST) and press CMD. Select KPD OPT. Press the CMD key to scroll through the menu and press any Select key when the desired option displays. Set the following options as described to enable 780 operation. Keypad Address CURRENT KEYPAD Set the keypad address to 01. -
Page 13: 7800 Keypad
Options screen. Select STOP to exit the Installer Options function. See the Icon Series Keypad Installation Guide (LT-0953), Thinline Keypad Installation Guide (LT-0883), or 7800 Series Keypad Install Guide (LT-1162) for the complete keypad programming menu. Digital Monitoring Products, Inc. 780 Installation and Programming Guide... -
Page 14: Program Keypads For Fire Panic Demonstrations
To enable the fire key operation press the number one key. This toggles between one (1) and zero (0) on the display. Zero (0) disables this option. 780 Installation and Programming Guide Digital Monitoring Products, Inc. -
Page 15: Thinline Keypad
Panic Icon is enabled, an asterisk displays next to the description and press CMD. The Panic Icon displays for the user. See the 7800 Series Keypad Install Guide (LT-1162) for the complete keypad programming menu. Digital Monitoring Products, Inc. 780 Installation and Programming Guide... -
Page 16: Program The Graphic Keypad For Z-Wave Demonstrations
Carousel Menu on the main screen. Press the item to select and a check-mark displays. Press again Doors Favorites to de-select. Items for the Carousel include Lights, Locks, Thermostats, and Favorites. 780 Installation and Programming Guide Digital Monitoring Products, Inc. -
Page 17: Program An Arming System For The 780
Home/Sleep/Away arming system. Note: If an arming system is not selected within the first 20 seconds or the CMD key is pressed, the 780 reverts to the last arming system programmed for demonstration. If the last arming system programmed was an Area system, the Icon Series keypad displays bSY. -
Page 18: Thinline Keypad
To change the current system, press ARMING SYSTEM to AREA A/P H/A display the options. Press the desired option to use, Area, A/P, or H/A. Press CMD and press STOP to end programming. 780 Installation and Programming Guide Digital Monitoring Products, Inc. -
Page 19: 7800 Keypad
Home/Sleep/Away (H S A) 1. Northwest Office (includes the Front Door) Perimeter (includes the Front Door) 2. Manufacturing Interior 3. South Warehouse Bedrooms (H S A) 4. West Power Plant Digital Monitoring Products, Inc. 780 Installation and Programming Guide... -
Page 20: 780 Demonstration
780 DEMONSTRATION Keypad Operation The 780 Demo module simulates the keypad User Menu available to customers in actual installations. Use the following sections to demonstrate keypad setup and operation. Prior to demonstrating operation, make sure your demo keypad is set as follows: •... -
Page 21: User Menu Options
After specifying the user level, you can use the keypad screen to demonstrate entering a custom user name into the system. Note: The keypad time is not adjustable and starts at 10:00AM and returns to 10:00AM after 59 minutes elapse. Digital Monitoring Products, Inc. 780 Installation and Programming Guide... - Page 22 After specifying the user level, you can use the keypad screen to demonstrate entering a custom user name into the system. Note: The keypad time is not adjustable and starts at 10:00AM and returns to 10:00AM after 59 minutes elapse. 780 Installation and Programming Guide Digital Monitoring Products, Inc.
-
Page 23: Keypad Shortcut Key Options
Monitor (Chime) on all systems Arm Perimeter for All/Perimeter Press Key 6 systems Press Key 7 Arm Sleep for Home/Sleep/Away systems Press INST Key Instantly arms system without the countdown (Icon only) Digital Monitoring Products, Inc. 780 Installation and Programming Guide... -
Page 24: 7800 Keypads Carousel Menu Options
7800 Keypads Carousel Menu Options The 780 Demo module simulates the Carousel Menu available to customers in actual installations. The module also has an Interactive Shield that provides arming and disarming from the Main screen. Your 7800 Series keypad provides access options through icons on the menu. -
Page 25: Arm An Area System
Arm an Area System Icon Series Keypads In an Area system, the Icon Series keypad displays bSY. Use a Thinline LCD keypad to change the arming system or power down and power up the 780 to select All/Perimeter or Home/Sleep/Away. Thinline Keypads Press the CMD key at the status list to display ARM DISARM and select ARM. -
Page 26: Arm An All/Perim And H S A Systems
Press the Interactive Shield on the main screen. Select from either PERIM ALL or HOME SLEEP AWAY by pressing the option. During the exit delay in All/Perimeter and Home/Sleep/Away systems, press ARM INSTANT to instantly arm the areas. 780 Installation and Programming Guide Digital Monitoring Products, Inc. -
Page 27: Disarm An Area System
Select NO to disarm selected areas. The keypad displays the name and number of each area and a NO YES option. Select NO to leave the area armed and display the next area. The keypad displays ALL SYSTEM OFF. Digital Monitoring Products, Inc. 780 Installation and Programming Guide... -
Page 28: Disarm An All/Perim And H S A Systems
Enter any 4-digit code. The keypad displays ALL SYSTEM OFF. 7800 Keypad Press the Interactive Shield on the main screen. Enter any 4-digit code. The keypad displays DISARMED below the Interactive Shield on the main screen. 780 Installation and Programming Guide Digital Monitoring Products, Inc. -
Page 29: Front Door Zone Alarm For An Area System
10 seconds, the keypad displays FRONT ENTRY DOOR alarm. Entering any 4-digit user code silences the alarm while leaving the areas armed. To turn off the Red backlighting, disarm the system. Digital Monitoring Products, Inc. 780 Installation and Programming Guide... -
Page 30: Front Door Zone Alarm For An All/Perim And H S A Systems
10 seconds, the keypad displays FRONT ENTRY DOOR alarm. Entering any 4-digit code displays IS THIS A FALSE ALARM? NO YES. Press YES to silence the alarm. ALARM CANCELED displays. Press NO to silence the alarm only. ALARM VERIFIED displays. 780 Installation and Programming Guide Digital Monitoring Products, Inc. -
Page 31: Fire Alarm For Icon Or Thinline Keypads
4-digit code. Panic Key Fire Alarm To demonstrate the panic fire alarm capability, the 780 provides an audible and visual alarm representation of a user-activated fire alarm. Initiate the alarm by pressing and holding the two top right Select keys. -
Page 32: Fire Alarm For 7800 Keypad
To silence the alarm, enter any 4-digit code. Panic Key Fire Alarm To demonstrate the panic fire alarm capability, the 780 provides an audible and visual alarm representation of a user-activated fire alarm. Initiate the alarm by pressing Panic on the Carousel menu and holding the Fire Icon. -
Page 33: Weather Demonstration For Thinline And 7800 Series Keypads
Weather Demonstration for Thinline and 7800 Series Keypads TUE 5:35 PM The 780 Demonstrator Module rotates through pairs of simulated weather Panic conditions from Monday through Sunday. CURRENT Weather conditions are displayed for NOW Chime and the following day on the main screen... -
Page 34: Z-Wave Demonstration For 7800 Series Keypads
Z-Wave Fluorescent Light and Appliance Lamp Module. Only four Z-Wave Lights will display per screen. Tap the arrows to page Main Bedroom to the next set of lights. Figure 9: Z-Wave Lights Screen 780 Installation and Programming Guide Digital Monitoring Products, Inc. - Page 35 Press THERMOSTATS until it glows. This displays the Z-Wave Thermostats screen allowing you to select ON or OFF, HEAT, COOL or FAN, and adjust the temperature for the MAIN and DOWNSTAIRS Z-Wave Thermostats. Only one Z-Wave Thermostat will display at one time. Digital Monitoring Products, Inc. 780 Installation and Programming Guide...
-
Page 36: Accessories
ACCESSORIES Keypad Desk Stand Plug-In DC Power Supply 780 Installation and Programming Guide Digital Monitoring Products, Inc. - Page 37 Digital Monitoring Products, Inc. 780 Installation and Programming Guide...
- Page 38 780 Installation and Programming Guide Digital Monitoring Products, Inc.
- Page 39 Digital Monitoring Products, Inc. 780 Installation and Programming Guide...
- Page 40 LT-0884 20172 © 2020 Digital Monitoring Products, Inc.
