DMP Electronics myQ 736Q Installation Sheet

736Q myQ® INTERFACE
MODULE
Installation Sheet

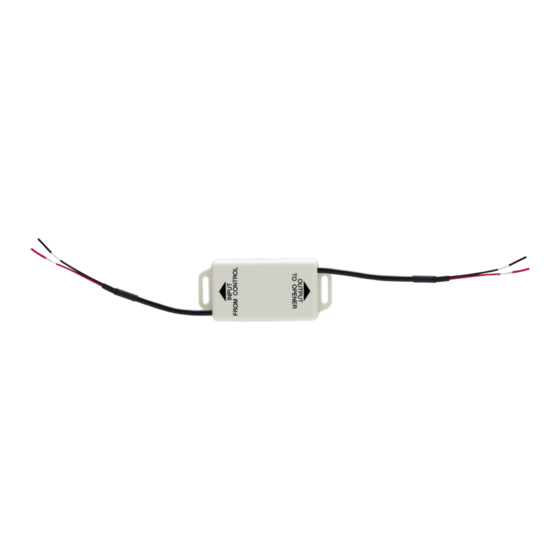

Figure 1: 736Q myQ Interface Module
DESCRIPTION
The 736Q myQ Module interfaces
myQ and Security+ 2.0 garage door
openers with Z-Wave garage door
controllers. For instance, connect
the 736Q to a Z-GD00Z Z-Wave
Garage Door Controller to allow the
garage door to be controlled with
Virtual Keypad™.
Compatibility
• Z-GD00Z Z-Wave Garage Door
Controller
• myQ Garage Door Openers
• Security+ 2.0 Garage Door
Openers
What is Included?
• One 736Q myQ Interface Module
1
SELECT A LOCATION
The 736Q connects to the garage door opener as a wall controller.
If a wall controller is already installed, connect the module wires
to the same terminals as the existing controller. Terminals for
wall controllers are typically the leftmost red and white terminals
located on the back of the opener housing. For more information,
refer to Figure 2.
Before wiring the module, select a location away from large metal
objects or sources of electrical interference. Interference may cause
the module to not work properly and can cause the garage door to
open unexpectedly.
2
WIRE THE 736Q
Caution: Disconnect all power from the garage door opener
and controls before wiring the 736Q. Failure to do so may
result in equipment damage or personal injury.
Observe polarity when wiring the module.
1. Connect the red wire from OUTPUT TO OPENER to the red
garage door opener terminal.
2. Connect the black wire from OUTPUT TO OPENER to the
white garage door opener terminal.
3. Connect the red and black wires from INPUT FROM
CONTROL to the appropriate control terminals.
4. Restore power to the garage door opener and control.
Garage Door
Opener
RED BLACK

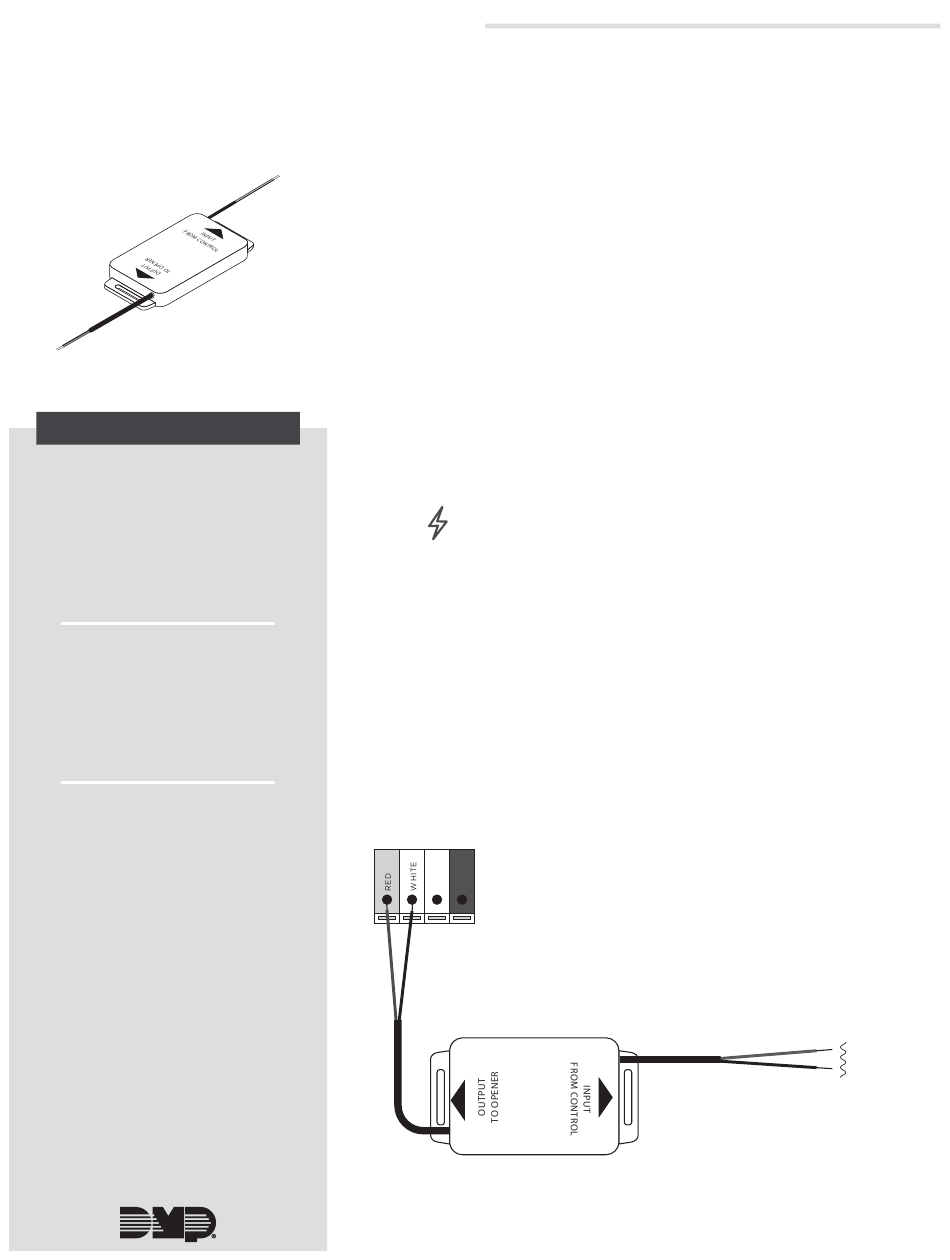

Figure 2: 736Q Wiring
RED From
Z-Wave
Device
BLACK
