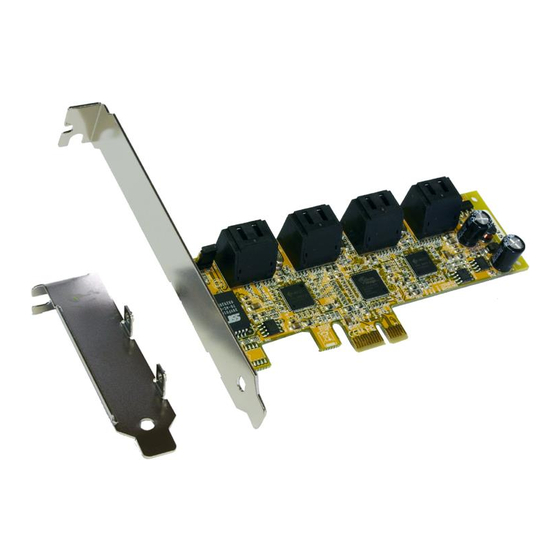

8-Port SATA II PCI-Express Controller (Non-RAID)
1. Introduction
Thank you for purchasing this 8-Port SATA2 PCI PCIe Card (non-RAID). It is
designed to support up to 8 SATA2 ports with 2 built-in SATA2 Port Multipliers
(PMs). It supports 8 SATA2 devices over one single PCI Express Slot. It is an
ideal solution to add more SATA drives for your system.
Features:
√
Supports 1-lane 2.5Gb/s PCI Express Data Transfer Rate
√
Built-in 2 SATA2 Port Multipliers (PM)
√
Provides 8 Ports (with 4 Double-deck Connectors) for 8 Internal SATA2
Devices
√
Non-RAID Support, Only Boot from Port 1 and Port 4
√
Supports SATA2 transfer rate of 3.0Gb/s (300Mbytes/sec)
√
Supports Native Command Queuing (NCQ)
√
Supports Windows 2000, XP, Vista and Win 7
2. Layout
JP1 BIOS Enable/
Disable Jumper
EX-3508
J4:
J5:
Up: Port 5
Up: Port 7
Down: Port 6
Down: Port 8
1
J2:
J3:
Up: Port 1
Up: Port 3
Down: Port 2
Down: Port 4
Extra secure
mounting holes
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Exsys EX-3508
Summary of Contents for Exsys EX-3508
- Page 1 EX-3508 8-Port SATA II PCI-Express Controller (Non-RAID) 1. Introduction Thank you for purchasing this 8-Port SATA2 PCI PCIe Card (non-RAID). It is designed to support up to 8 SATA2 ports with 2 built-in SATA2 Port Multipliers (PMs). It supports 8 SATA2 devices over one single PCI Express Slot. It is an ideal solution to add more SATA drives for your system.
- Page 2 8-Port SATA II PCI-Express Controller 3. Jumper Settings JP1: BIOS Enable/Disable Jumper BIOS Enabled: Jumper Installed at “ENA” (Default) BIOS Disabled: Jumper Installed at “DIS” 4. Driver Location on the CD Note: Due to the limitation of the Port Multipliers, only Port 1 and Port 4 can be the System Boot Drives.
- Page 3 8-Port SATA II PCI-Express Controller Note: Since all the SATA drives are connected via Port Multipli- ers, only the first (Port 1) and the fourth (Port 4) drives are shown by the BIOS, however, after installing the Windows drivers, all drives will be detected by Windows and works properly.
- Page 4 8-Port SATA II PCI-Express Controller...
