Translation of the original manual
Assembly- and Operating Manual
SKE
Swivel Unit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SKE Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SCHUNK SKE Series

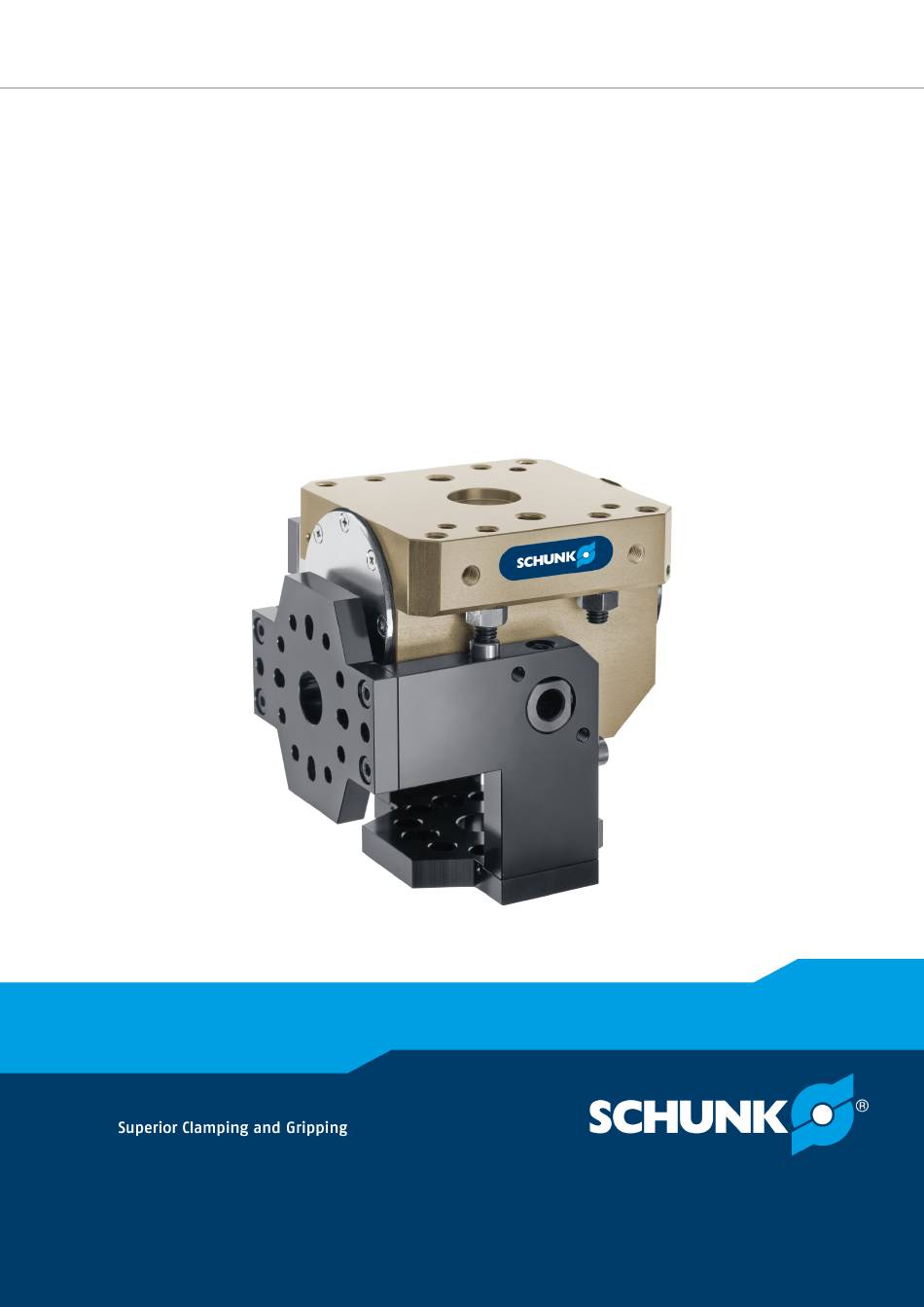

  • Page 1 Translation of the original manual Assembly- and Operating Manual Swivel Unit...
  • Page 2 Imprint Copyright: This manual is protected by copyright. The author is SCHUNK GmbH & Co. KG. All rights reserved. Any reproduction, processing, distribution (making available to third parties), translation or other usage - even excerpts - of the manual is especially prohibited and requires our written approval.
  • Page 3: Table Of Contents

    Table of Contents Table of Contents General........................ 4 About this manual .................... 4 1.1.1 Presentation of Warning Labels ............... 4 1.1.2 Applicable documents ................ 5 Warranty ...................... 5 Scope of delivery .................... 5 Accessories ...................... 5 1.4.1 Sensors ..................... 5 Basic safety notes .................... 6 Intended use......................
  • Page 4: General

    General 1 General 1.1 About this manual This manual contains important information for a safe and appropriate use of the product. This manual is an integral part of the product and must be kept accessible for the personnel at all times. Before starting work, the personnel must have read and understood this operating manual.
  • Page 5: Applicable Documents

    Type Inductive proximity switches • Exact type designation of the compatible sensors see catalog. • Information on handling sensors is available at schunk.com or from SCHUNK contact persons. 04.00 | SKE | Assembly- and Operating Manual | en | 389407...
  • Page 6: Basic Safety Notes

    Use of unauthorized spare parts Using unauthorized spare parts can endanger personnel and damage the product or cause it to malfunction. • Use only original spare parts or spares authorized by SCHUNK. 04.00 | SKE | Assembly- and Operating Manual | en | 389407...
  • Page 7: Ambient Conditions And Operating Conditions

    Basic safety notes 2.5 Ambient conditions and operating conditions Required ambient conditions and operating conditions Incorrect ambient and operating conditions can make the product unsafe, leading to the risk of serious injuries, considerable material damage and/or a significant reduction to the product's life span. •...
  • Page 8: Personal Protective Equipment

    Basic safety notes 2.7 Personal protective equipment Use of personal protective equipment Personal protective equipment serves to protect staff against danger which may interfere with their health or safety at work. • When working on and with the product, observe the occupational health and safety regulations and wear the required personal protective equipment.
  • Page 9: Malfunctions

    Basic safety notes 2.10 Malfunctions Behavior in case of malfunctions • Immediately remove the product from operation and report the malfunction to the responsible departments/persons. • Order appropriately trained personnel to rectify the malfunction. • Do not recommission the product until the malfunction has been rectified.
  • Page 10: Protection During Handling And Assembly

    Basic safety notes 2.12.1 Protection during handling and assembly Incorrect handling and assembly Incorrect handling and assembly may impair the product's safety and cause serious injuries and considerable material damage. • Have all work carried out by appropriately qualified personnel. •...
  • Page 11: Protection Against Dangerous Movements

    Basic safety notes 2.12.3 Protection against dangerous movements Unexpected movements Residual energy in the system may cause serious injuries while working with the product. • Switch off the energy supply, ensure that no residual energy remains and secure against inadvertent reactivation. •...
  • Page 12: Notes On Particular Risks

    Basic safety notes 2.13 Notes on particular risks  DANGER Risk of fatal injury from suspended loads! Falling loads can cause serious injuries and even death. Stand clear of suspended loads and do not step within their • swiveling range. Never move loads without supervision. •...
  • Page 13: Technical Data

    Technical Data 3 Technical Data SKE 18 SKE 22 SKE 40 SKE 55 Torque [Nm] 0.75 Angle of rotation [°] 90.0 End position adjustability[°] IP rating Weight [kg] 0.13 0.92 1.95 Cycle time (1 x nominal angle of rotation) without attached load [s] Air consumption per cycle 10.0 20.0...
  • Page 14: Assembly

    Assembly 4 Assembly 4.1 Connections 4.1.1 Mechanical connection Fasten the product with the aid of the threads (3) on the Connections on the Ø bottom. housing Center the product on the central fitting bore (2). Ø Use off-center fitting bore (1) for positioning. Ø...
  • Page 15: Pneumatic Connection

    Assembly 4.1.2 Pneumatic connection  WARNING Risk of injury due to moving parts! Rotating components and/or components moving linearly may cause severe injuries. Do not interfere with moving parts during operation. • Wear protective equipment. • NOTE • Observe the requirements for the compressed air supply, Technical Data  13].
  • Page 16 Assembly Pneumatic connections Throttle A Throttle B • Open only the air connections that are needed. • Close unused main air connections using the screw plugs from the enclosed pack. • For a hose-free direction connection, use the O-rings from the enclosed pack.
  • Page 17: Gripper Assembly

    Assembly 4.2 Gripper assembly One or two grippers can be mounted on the swivel unit. The adapter plates can be removed to facilitate assembly. CAUTION Make sure that the screw heads do not protrude. Grippers and size of fixing screws (DIN EN ISO 4762) for use with standard adapter plates: Type Gripper type/fixing screw dimension SKE 18...
  • Page 18 Assembly Type 3 F7 5 F7 5 F7 5 F7 04.00 | SKE | Assembly- and Operating Manual | en | 389407...
  • Page 19: Mounting The Sensor

    • Information on handling sensors is available at schunk.com or from SCHUNK contact persons. 04.00 | SKE | Assembly- and Operating Manual | en | 389407...
  • Page 20: Inductive Proximity Switch In 40

    Assembly 4.4.1 Inductive proximity switch IN 40 brown closer load black blue Types that can be ordered (☞ catalog): The inductive proximity switches used are equipped with reverse polarity protection and are short-circuit-proof. Make sure that you handle the proximity switches properly: •...
  • Page 21 Assembly Proximity switch for SKE 18 Proximity switch for SKE 18 Bracket Attachment screw (DIN 912 M2.5 x 6) Contact plate Proximity switch 2 Proximity switch 1 Connection A Connection B 04.00 | SKE | Assembly- and Operating Manual | en | 389407...
  • Page 22: Inductive Proximity Switch In 80

    Assembly 4.4.2 Inductive proximity switch IN 80 Connection example for IN 80 brown black blue The inductive proximity switches used are equipped with reverse polarity protection and are short-circuit-proof. Make sure that you handle the proximity switches properly: • Do not pull on the cable. •...
  • Page 23 Assembly Proximity switch for SKE 22 Proximity switch for SKE 22 Bracket Attachment screw (DIN 912 M3 x 8) Control cam Proximity switch 2 Proximity switch 1 Connection A Connection B Proximity switch for SKE 40 Proximity switch for SKE 40 04.00 | SKE | Assembly- and Operating Manual | en | 389407...
  • Page 24 Assembly Bracket Attachment screw (DIN 912 M3 x 8) Contace plate Proximity switch 2 Proximity switch 1 Connection A Connection B Proximity switch for SKE 55 Proximity switch for SKE 55 Bracket Attachment screw (DIN 912 M3 x 8) Adapter plate Proximity switch 2 Proximity switch 1 Connection A...
  • Page 25: Maintenance And Care

    Maintenance and care 5 Maintenance and care The swivel unit is maintenance-free. If the product gets dirty, wipe it carefully with a soft cloth. Do not use solvents. 04.00 | SKE | Assembly- and Operating Manual | en | 389407...
  • Page 26: Translation Of Original Declaration Of Incorporation

    6 Translation of original declaration of incorporation in terms of the Directive 2006/42/EG, Annex II, Part 1.B of the European Parliament and of the Council on machinery. Manufacturer/ SCHUNK GmbH & Co. KG Spann- und Greiftechnik Distributor Bahnhofstr. 106 – 134 D-74348 Lauffen/Neckar...
  • Page 27: Annex To Declaration Of Incorporation

    Translation of original declaration of incorporation 6.1 Annex to Declaration of Incorporation according 2006/42/EG, Annex II, No. 1 B 1.Description of the essential health and safety requirements pursuant to 2006/42/EC, Annex I that are applicable and that have been fulfilled with: Product designation Swivel Unit Type designation ID number...
  • Page 28 Translation of original declaration of incorporation Protection against mechanical hazards 1.3.7 Risks related to moving parts 1.3.8 Choice of protection against risks arising from moving parts 1.3.8.1 Moving transmission parts 1.3.8.2 Moving parts involved in the process 1.3.9 Risks of uncontrolled movements Required characteristics of guards and protective devices 1.4.1 General requirements...
  • Page 29 Translation of original declaration of incorporation Information 1.7.1 Information and warnings on the machinery 1.7.1.1 Information and information devices 1.7.1.2 Warning devices 1.7.2 Warning of residual risks 1.7.3 Marking of machinery 1.7.4 Instructions 1.7.4.1 General principles for the drafting of instructions 1.7.4.2 Contents of the instructions 1.7.4.3...
