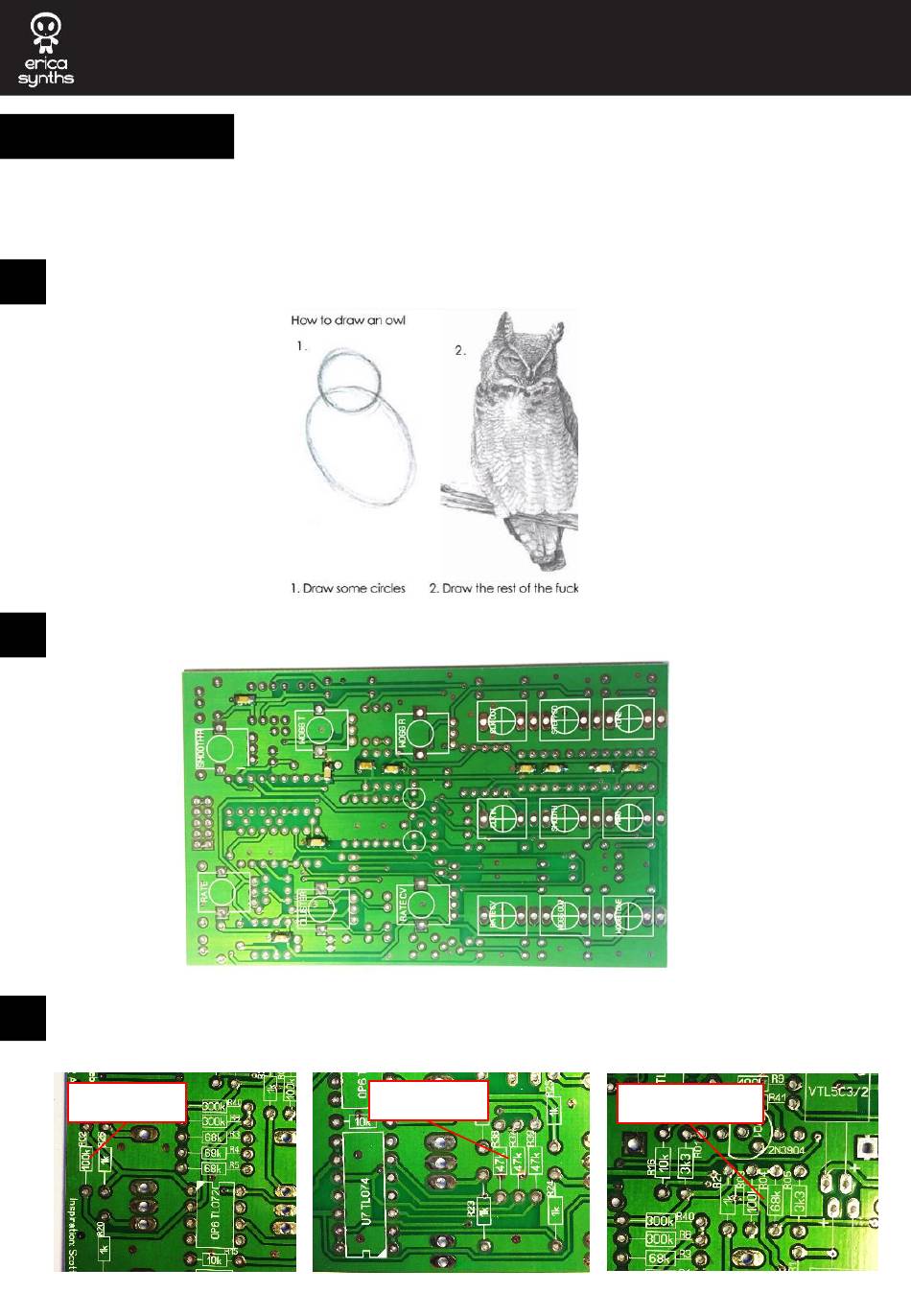

Erica Synths WOGGLEBUG Manual To Assembly page 3

GUIDE TO ASSEMBLY OF ERICA SYNTHS WOGGLEBUG
ASSEMBLY
Take precautions with regard to electrostatic discharge (ESD) safety. Handling components should be done
in electrostatically safe environment. Use personal and workplace grounding. Any discharge (even a minor
one) from body to a component may permanently damage it. Then follow the instructions below!
Let's start with drawing an owl!
1
First solder SMD decoupling capacitors!
2
Erica Synths Wogglebug PCB V2 has some errors on silkscreen – resistor values have to be changed according
3
to the BOM! Start populating the PCB with these resistors!
Use 150k
resistor here!
4
R38-R39
should be 33k
Swap these!
R03=68k, R04=100k
