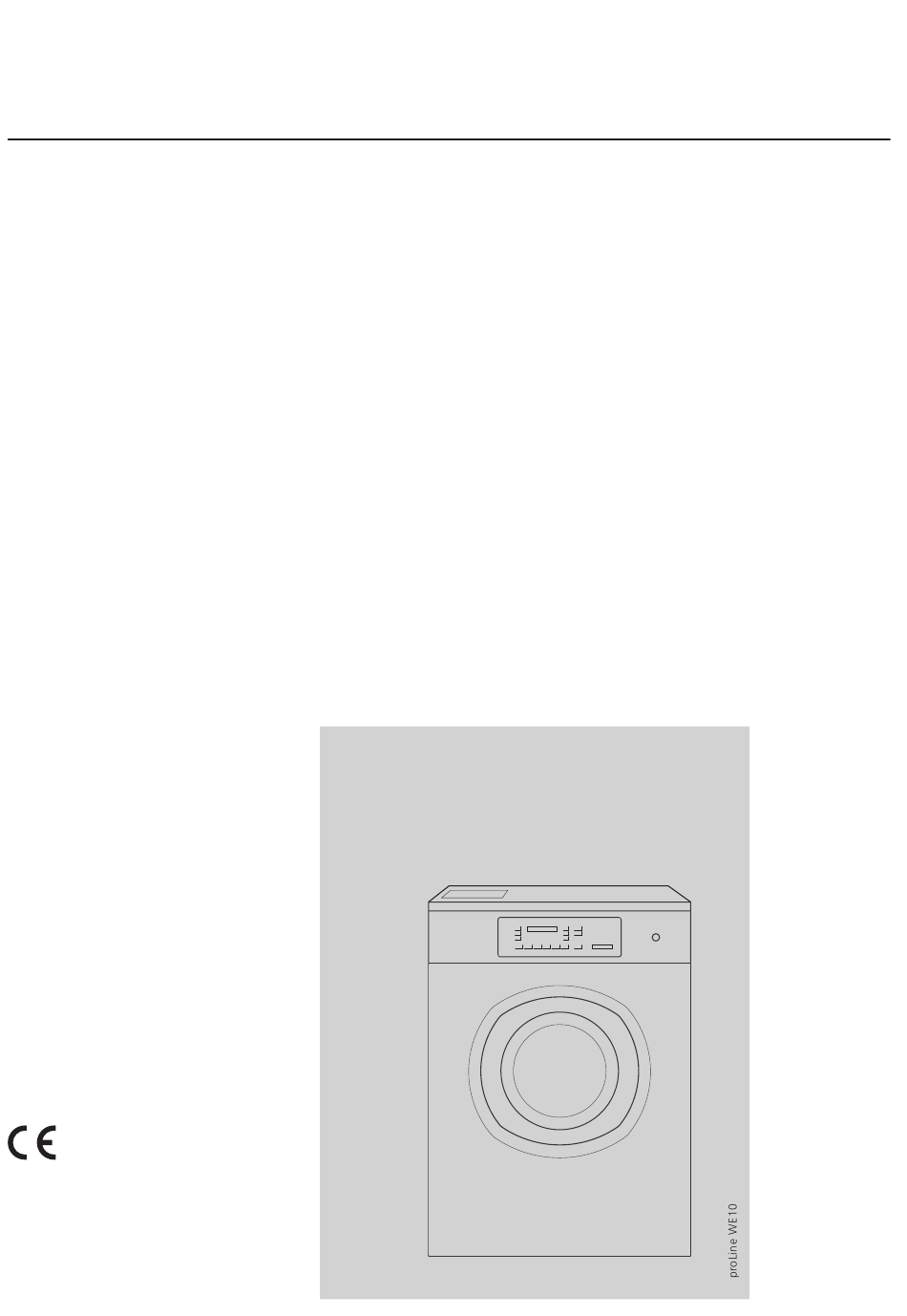

- Page 1 Installation instruction for professional washing machines Instruction No. 760 672.AA...
-
Page 3: Safety Information
Safety Information CAUTION Risk of suffocation! Packing material is not a plaything When transporting your machine for children. X Dispose of the packing material cor- CAUTION rectly and do not keep it. Playing children Risk of injury! might get hold of it and be exposed to The machine is very heavy danger (e.g. - Page 4 Removing the transport securing device Before putting the appli ance into service for the first time, the transport securing device on the rear of the appliance must be removed. Keep the transport securing device in a safe place for possible future use (move). Transport the appliance only with the transport securing device fitted.
-
Page 5: Installing The Appliance
Installing the appliance X If necessary, correct the height of the appliance feet. Loosen the counternuts. Correct the height of the feet. Each appliance is carefully checked under operating Tighten the counternuts firmly again so that the foot con ditions before leaving our factory. Any moisture or heights set will be maintained. -
Page 6: Water Outlet
Water connection Water outlet Connection of the appliance to the water supply must Drain pump be carried out by an expert. A normal water supply pressure of at least 0,1 MPa (1 bar) is required for the During installation, do not bend the outlet hose or pull water connection (with the water tap open, at least 8 on the hose! litres of water must flow in one minute). -
Page 7: Electrical Connection
Electrical connection 8 kg /10 kg / 12 kg washing machine 400V 3N ~ 400V 2 N ~ Reduced mains power Reduced mains power Connection of the appliance to the power supply must «OFF» «ON» be carried out by a specialised electrician. Prepare the electrical connection (in the building) flexibly in accordance with the connection diagram and the regulations of the regional power supply company. - Page 8 13 kg washing machine 16 kg washing machine 400V 3 N ~ 400V 2 N ~ 400V 3 N ~ 400V 2N ~ Reduced mains power Reduced mains power Reduced mains power Reduced mains power «OFF» «ON» «OFF» «ON» Heating 14,5 kW Heating 9,6 kW...
- Page 11 Description to accompany the installation plan Electrical connection Flexible as per the connection diagramm Mains locking option. Hot water or cold, hard water Connection: ¾"- DN20, 1000 ÷ 10’000 hPa (1÷10 bar), max. 60 °C, 15 l / min. An IRN R160-compliant double check valve must be installed at the connection point between the water supply and the machine.
- Page 12 12.18 d /f / i/e Printed in Switzerland Subject to change without notice...
