Summary of Contents for Acromag XMC-6260-CC
- Page 1 Artisan Technology Group is your source for quality new and certified-used/pre-owned equipment SERVICE CENTER REPAIRS WE BUY USED EQUIPMENT • FAST SHIPPING AND DELIVERY Experienced engineers and technicians on staff Sell your excess, underutilized, and idle used equipment at our full-service, in-house repair center We also offer credit for buy-backs and trade-ins •...
- Page 2 Terminator 4 ASIC Based XMC Module USER’S MANUAL ACROMAG INCORPORATED 30765 South Wixom Road Wixom, MI 48393-2417 U.S.A. Tel: (248) 624-1541 Fax: (248) 624-9234 Copyright 2015, Acromag, Inc., Printed in the USA. Data and specifications are subject to change without notice. 8501-002B...
-
Page 3: Table Of Contents
Software/Driver Download for Windows Operating Systems ..........11 4.0 THEORY OF OPERATION ................... 13 PCIE INTERFACE LOGIC ....................... 14 Dual XAUI Interface ......................14 DDR3 ..........................14 Clock Generation ....................... 14 Serial EEPROM ........................14 Acromag, Inc. Tel: 248-295-0310 - 1 - - 1 - www.acromag.com http://www.acromag.com... - Page 4 DDR3 Memory ............................20 256Kb EEPROM ............................20 32Mb Flash ..............................20 Temperature Sensor ..........................20 PCIe Bus Interface ............................20 XMC-6260-CC Block Diagram ....................21 Certificate of Volatility ....................... 22 Revision History ......................... 23 Acromag, Inc. Tel: 248-295-0310 - 2 - - 2 - www.acromag.com...
- Page 5 It is important that you perform satisfactory overall system design and it is agreed between you and Acromag, that this is your responsibility. The information of this manual may change without notice. Acromag makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
-
Page 6: General Information

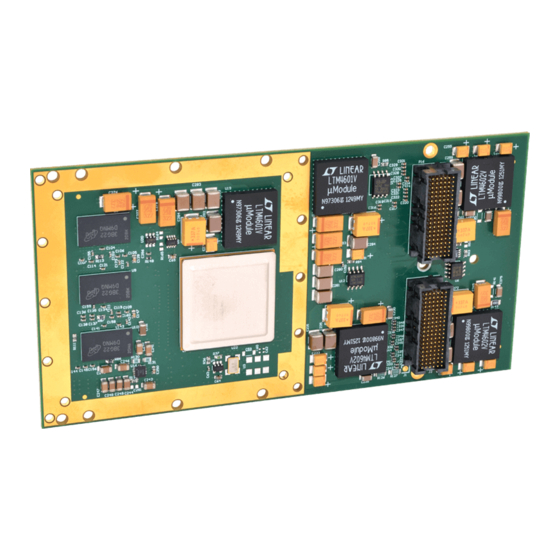

XMC module. This conduction cooled module is optimized for cloud computing, HPC, virtualization, storage and other data center applications. The heart of the XMC-6260-CC is Chelsio’s Terminator 4 (T4) ASIC. The T4 ASIC provides the highest 10GbE performance available and dramatically... -
Page 7: Ordering Information
XMC-6260-CC USER’S MANUAL Ordering Information The following table lists the orderable model and its description. XMC-6260-CC-LF is conduction-cooled with an operating temperature of - 40C to +85C. MODEL Description Table 1.1: The XMC-6260-CC board is only available in a XMC-6260-CC-LF Lead Free, RoHS compliant lead free version. -
Page 8: Hardware Requirements
Deploy Ethernet-only networking for cluster fabric, LAN and SAN Hardware Requirements The XMC-6260-CC supports architectures with PCIE (x4, x8, x16) gen 2 slots. Note that running a 10Gb adapter on a PCI x4 slot is not recommended as performance will be significantly reduced by the limitations of PCI. PCIe Gen 2 is also backwards compatible with Gen 1;... -
Page 9: Preparation For Use
For repairs to a product damaged in shipment, refer to the Acromag Service Policy to obtain return instructions. It is suggested that salvageable shipping... -
Page 10: P16 Secondary Xmc Connector
I/O grounds. As such, the field I/O connections are not isolated from the system. Care should be taken in designing installations without isolation to avoid noise pickup and ground loops caused by multiple ground connections. Acromag, Inc. Tel: 248-295-0310 - 8 - - 8 - www.acromag.com... -
Page 11: Software/Driver Information
3.0 SOFTWARE/DRIVER INFORMATION Software/Driver Download from Linux Source Tarball 1. Go to service.chelsio.com and search the downloads as shown below. 2. In the SEARCH RESULTS choose the source tarball. Acromag, Inc. Tel: 248-295-0310 - 9 - - 9 - www.acromag.com... - Page 12 4. Also download the Chelsio support documentation including the README, Release Notes and User Guide. Refer to the User Guide for information on how to properly install and use the Chelsio drivers. Acromag, Inc. Tel: 248-295-0310 - 10 - - 10 - www.acromag.com...
-
Page 13: Software/Driver Download For Windows Operating Systems
2. In the SEARCH RESULTS select the desired release based on operating system and functionality. For example, this release is for Windows Server 2012 and supports NIC, NDK and ND functionalities. Click on Older Releases to view older releases. Click Download to download the driver. Acromag, Inc. Tel: 248-295-0310 - 11 - - 11 - www.acromag.com... - Page 14 4. Download the Chelsio support documentation including the README, Release Notes and User Guide. Refer to the User Guide for information on how to properly install and use the Chelsio drivers. Acromag, Inc. Tel: 248-295-0310 - 12 - - 12 - www.acromag.com...
-
Page 15: Theory Of Operation
This section contains information regarding the design of the board. A description of the basic functionality of the circuitry used on the board is also provided. Refer to the XMC-6260-CC Block Diagram, shown below, as you review this material. Figure 4.1: XMC-6260-CC Block... -
Page 16: Pcie Interface Logic
USER’S MANUAL PCIE INTERFACE LOGIC The XMC-6260-CC host interface is through PCI Express 2.0 which provides a 5Gbps interface to the carrier/CPU board. The PCIe interface supports 8 physical functions (PF). SR-IOV is supported on 4 PF with 128 virtual functions (VF). -
Page 17: Serial Flash
Power System Devices The power to the XMC-6260-CC is taken from the XMC P15 connector VPWR_5/12 pins. The VPWR_5/12 power is the V in voltage to the three LTM4602 devices U16, U17 and U18 and also to the LTM4601 devices U19 and U21. - Page 18 P2_5V 6.0A Ethernet LTM4602 ASIC, DDR3, P1_5V 6.0A PCIe, Ethernet TPS51200 DDR3 DDR3_VTT +/-2A Termination LTM4602 ASIC, Ethernet P1_2V 6.0A LTM4601 ASIC, PCIe, P1_0V LTM4601 ASIC, PCIe P1_0V Acromag, Inc. Tel: 248-295-0310 - 16 - - 16 - www.acromag.com http://www.acromag.com...
-
Page 19: Service And Repair
Surface-Mounted Technology (SMT) boards are generally difficult to repair. It is highly recommended that a non-functioning board be returned to Acromag for repair. The board can be easily damaged unless special SMT repair and service tools are used. Further, Acromag has automated test equipment that thoroughly checks the performance of each board. -
Page 20: Specifications
(available for the T4 ASIC) 12A typical 1.0V (5%) 24A maximum ENVIRONMENTAL Operating Temperature Operating Temperature Model C to 85 XMC-6260-CC-LF Relative Humidity: 5-95% Non-Condensing. Storage Temperature: -55C to 100C. Acromag, Inc. Tel: 248-295-0310 - 18 - - 18 - www.acromag.com http://www.acromag.com... -
Page 21: Terminator 4 Asic (U1)
System Management (XMC provides hardware definition information read by the external controller using IPMI commands and I2C serial bus transactions.) 3.3V power (4 pins at 1A/pin) Variable power (5V or 12V) (8 pins at 1A/pin) Acromag, Inc. Tel: 248-295-0310 - 19 - - 19 - www.acromag.com http://www.acromag.com... -
Page 22: P16 Xmc Connector
XMC Compatibility: Conforms to PCI Express Base Specification v2.0, and XMC Specification, P1386.1 ANSI/VITA 42.0: Complies with XMC module mechanicals and connectors ANSI/VITA 42.3: XMC module with PCI Express Interface Acromag, Inc. Tel: 248-295-0310 - 20 - - 20 - www.acromag.com... -
Page 23: Xmc-6260-Cc Block Diagram
XMC-6260-CC USER’S MANUAL XMC-6260-CC Block Diagram BACKPLANE Dual XAUI Dual XAUI SERIAL EEPROM SERIAL FLASH DDR III RESET 512 Mb 5 x DDRIII -1600 50 MHZ XTAL TEMP DC/DC @ SENSOR 1.0v,1.2v,1.5v, 2.5v & 3.3v PCIE 2.0 x8 Acromag, Inc. Tel: 248-295-0310... -
Page 24: Certificate Of Volatility
□ No configuration data the EERPOM Acromag Representative Name: Title: Email: Office Phone: Office Fax: Joseph Primeau Dir. of Sales jprimeau@acromag.com 248-295-0823 248-624-9234 Marketing Acromag, Inc. Tel: 248-295-0310 - 22 - - 22 - www.acromag.com http://www.acromag.com... -
Page 25: Revision History
XMC-6260-CC USER’S MANUAL Revision History Release Date Version EGR/DOC Description of Revision 1-MAY-14 EZ/EZ Initial Acromag release. 2 Oct 15 CAB/MJO Remove Leaded Option for RoHS Compliance. Acromag, Inc. Tel: 248-295-0310 - 23 - - 23 - www.acromag.com http://www.acromag.com... - Page 26 Artisan Technology Group is your source for quality new and certified-used/pre-owned equipment SERVICE CENTER REPAIRS WE BUY USED EQUIPMENT • FAST SHIPPING AND DELIVERY Experienced engineers and technicians on staff Sell your excess, underutilized, and idle used equipment at our full-service, in-house repair center We also offer credit for buy-backs and trade-ins •...
