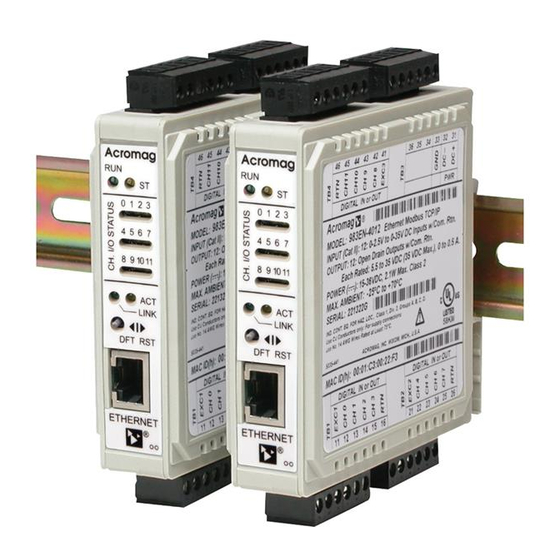

Acromag BusWorks 900EN Series User Manual
Modbus tcp/ip 10/100mb industrial ethernet i/o modules. 12 active-low digital inputs / 12 sinking digital outputs / 12 tandem digital input/output
Hide thumbs
Also See for BusWorks 900EN Series:
- User manual (60 pages) ,
- User manual (57 pages) ,
- User manual (44 pages)
Related Manuals for Acromag BusWorks 900EN Series
Summary of Contents for Acromag BusWorks 900EN Series
- Page 1 (217) 352-9330 | Click HERE Find the Acromag BusWorks 981EN-4012 at our website:...
- Page 2 Model 983EN-4012 12 Tandem Digital Input/Output USER’S MANUAL ACROMAG INCORPORATED Tel: (248) 295-0880 30765 South Wixom Road Fax: (248) 624-9234 Wixom, MI 48393-2417 U.S.A. Copyright 2003-2014, Acromag, Inc., Printed in the USA. 8500717M Data and specifications are subject to change without notice.
-
Page 3: Table Of Contents
This is very important where property loss or human life is Symbols on equipment: involved. It is important that you perform satisfactory overall system design and it is agreed between you and Acromag, that this is your responsibility. GETTING STARTED MOUNTING AND DIMENSIONS………………………... -
Page 4: Mounting And Dimensions
The I/O circuit, network, and 5V/3V TRANSFORMER power circuit are isolated from 981/982/983EN each other for safety and noise ISOLATION DIAGRAM immunity. DIGITAL IN or OUT DIGITAL IN or OUT 25 26 DIGITAL I/O DIGITAL I/O Acromag, Inc. Tel:248-295-0880 Fax:248-624-9234 Email:sales@acromag.com ttp://www.acromag.com... -
Page 5: I/O Pullup Resistor Installation
PRY WITH SCREWDRIVER (do not twist the screwdriver to avoid INSERTED IN SLOT HERE (DO NOT TWIST TO AVOID damaging plastic). DAMAGING PLASTIC TAB) PUSH SCREWDRIVER AS SHOWN TO TILT AND LIFT MODULE OFF RAIL Acromag, Inc. Tel:248-295-0880 Fax:248-624-9234 Email:sales@acromag.com ttp://www.acromag.com... -
Page 6: Network
A CT LINK CAT-5 UTP CABLE MDI/MDI-X crossover HOST PC UP TO 100 METERS and is wired MDI. (Use Crossover Cable) E THE RNE T Order Acromag Cable Model 5035-360 Acromag, Inc. Tel:248-295-0880 Fax:248-624-9234 Email:sales@acromag.com ttp://www.acromag.com... -
Page 7: Power
ET HERNET SWIT CHES AND HUBS ARE WIRED M DI-X. Order Acrom ag Cable Model 5035-355 THE ACROMAG ET HERNET SWIT CH IS AUT OMATIC MDI/MDI-X AND ELIM INATES THE NEED F OR MAKING A DISTINCTION BETWEEN CAT -5 UT P CABLE... -
Page 8: Digital Inputs
OR CHANGE SIP RESISTOR 5.6K VALUE. OTHER THREE CHAN OF PORT 100K CH LED IS ON FOR 983PB ACTIVE-LOW INPUT ONLY ON 983EN UNITS, MAKE SURE OUTPUT IS OFF (0) FOR INPUT ONLY APPLICATIONS. Acromag, Inc. Tel:248-295-0880 Fax:248-624-9234 Email:sales@acromag.com ttp://www.acromag.com... -
Page 9: Digital Outputs
SIP RESISTOR INSTALLED IN SOCKET (N.O.) TO OTHER 3 Examples: CHAN OF PORT 100K - Solid-State Relay (SSR) or LED Driver 982EN/983EN LOAD/LINE - Relay Coil or Solenoid Driver (Note Protection). - Lamp Driver. Acromag, Inc. Tel:248-295-0880 Fax:248-624-9234 Email:sales@acromag.com ttp://www.acromag.com... -
Page 10: Earth Ground
Failure to use good The plastic module housing does not require earth ground. wiring and grounding practices may be unsafe and hurt performance. Acromag, Inc. Tel:248-295-0880 Fax:248-624-9234 Email:sales@acromag.com ttp://www.acromag.com... -
Page 11: Web Browser
Password Configuration Page and change the username and password as required. Acromag, Inc. Tel:248-295-0880 Fax:248-624-9234 Email:sales@acromag.com ttp://www.acromag.com... -
Page 12: Password Configuration Page
A Static IP Address is as the name implies—static, and represents a unique fixed IP Address that is generally assigned by your service provider or system administrator. The Default Mode static IP address assigned to this module is 128.1.1.100 (refer to product side label). Acromag, Inc. Tel:248-295-0880 Fax:248-624-9234 Email:sales@acromag.com ttp://www.acromag.com... - Page 13 DHCP server is present. This module can be placed NOTE: In order to network your PC with an Acromag module, you may have into a default communication to consult with your network administrator and either temporarily change...
- Page 14 Click the Wink On/Off button to toggle the module in/out of “wink” ID mode. In this mode, the module’s green RUN LED will blink to confirm identification. Refer to the Technical Reference section of this manual to learn more about IP Addressing terms and concepts. Acromag, Inc. Tel:248-295-0880 Fax:248-624-9234 Email:sales@acromag.com ttp://www.acromag.com...
-
Page 15: I/O Mapping Page (Optional I2O Function)
This module includes special remote messaging functionality (i2o, input-to- WEB BROWSER output communication) that allows it to send its digital input information (983EN only) to an output channel on another Acromag 982EN-4012 or I/O Mapping Page 983EN-4012 digital output module. The I/O Mapping page shown below is... -
Page 16: Test Page
Each input port of this device may be mapped to the same port of another WEB BROWSER Acromag 982/983EN-4012 digital I/O module (different IP address). Subsequent messages will be sent at a periodic rate specified via the update I/O Mapping Page time. - Page 17 For example, Enter a state value of “0000” to turn OFF (open) all port outputs (failsafe state) upon watchdog timeout. You would enter “000F” to turn all port outputs ON upon watchdog timeout. Acromag, Inc. Tel:248-295-0880 Fax:248-624-9234 Email:sales@acromag.com ttp://www.acromag.com...
-
Page 18: Troubleshooting
Missing earth ground Connect earth ground to fault diagnosis method is to connection. TB3-33 GND terminal exchange the module with a adjacent to power terminal. known good unit. Acromag’s Outputs Not Missing excitation Connect an excitation Application Engineers can Working. connection? -
Page 19: Trouble Browsing Your Module
(located on the CDROM shipped SHOOTING with your module or via download from our web site at www.acromag.com). This document gives details for changing your PC’s TCP/IP configuration in order to communicate with your module (see TCP/IP Properties of Network Configuration in Windows). -
Page 20: Technical Reference
502 (Modbus TCP/IP Default). • I/O Mapping (i2o) Feature – Allows the inputs of a 983EN device to control the outputs of an Acromag 982EN or 983EN output module. • Flexible IP Addressing – Supports static, DHCP, or BOOTP. -
Page 21: How It Works
D E FA R S T (981EN) 982EN/983EN (982EN) (983EN) ISOLATED INPUT POWER OUTPUT BLOCK SIMPLIFIED SCHEMATIC 15-36VDC I/O STATUS LED (1 CHANNEL OF 12) TOGGLE POWER ISOLATED SWITCH FLYBACK SWITCHER I/O LOGIC 3.3V +3.3V POWER Acromag, Inc. Tel:248-295-0880 Fax:248-624-9234 Email:sales@acromag.com ttp://www.acromag.com... -
Page 22: About Modbus Tcp/Ip
Acromag’s 901/902/903MB ModBus modules. The operation over Ethernet is essentially transparent to the Modbus register/command structure. If you are already familiar with Modbus or with Acromag Series 900MB modules, then you are already familiar with the operation of the 981/982/983EN modules. - Page 23 The subnetwork address of 128.1.1.0 has 254 possible unique node addresses (we are using node 100 of 254 possible). Nodes 0, 10, and 255 are typically reserved for servers and may yield poor results if used. Acromag, Inc. Tel:248-295-0880 Fax:248-624-9234 Email:sales@acromag.com ttp://www.acromag.com...
-
Page 24: Dynamic Host Configuration Protocol
For example, the DNS allows us to use “Acromag.com” as an IP address rather than a complicated number string. Modbus registers are organized into reference types identified by the leading... -
Page 25: Register Mirroring
983EN slave ID is “0E” and firmware number is 9300-132. For detailed information on Modbus, feel free to download our technical reference 8500-648, “Introduction To Modbus”, at www.acromag.com. You can also find more information specific to Modbus TCP/IP by down-loading whitepaper 8500-765, “Introduction To Modbus TCP/IP”. -
Page 26: Data Types
FF00H will turn the coil ON. Writing to multiple coils is not supported via register mirroring, you must use the “Write Multple Coils” function for that. Note that with respect to the Acromag 9xxMB Modbus RTU modules, only the 3xxxx Input Registers are mirrored into 4xxxx space, not Coil or Input Status registers as noted here for 9xxEN models. -
Page 27: Register Map
The Modbus functions operate on these registers using the data types noted above (except for the Reset Slave and Report Slave ID functions). Note that this register map is very similar to the register map of Acromag 901/902/903MB ModBus modules, except that registers for slave address, baud rate, parity, turnaround delay, and reset have been removed. - Page 28 4, bit 1 to 983EN Only) channel 5, bit 2 to channel 6, and bit 3 to channel 7. Write 65535 (FFFFH) to Default= this register to leave the outputs 65535, unchanged following a timeout (this is Acromag, Inc. Tel:248-295-0880 Fax:248-624-9234 Email:sales@acromag.com ttp://www.acromag.com...
-
Page 29: Specifications
(983EN only). I/O channels share common. Pull-up resistors to the port EXC supply (every four channels) are installed in sockets on the board. Non-volatile reprogrammable memory in the module stores configuration information. Acromag, Inc. Tel:248-295-0880 Fax:248-624-9234 Email:sales@acromag.com ttp://www.acromag.com... -
Page 30: Model Numbers
ON Resistance: 0.13 typical, 0.28 Maximum. Output Response Time: 220us typical measured from output trigger at the controller to corresponding input transition at the controller. Actual switch time will vary with output load and interrupts. Acromag, Inc. Tel:248-295-0880 Fax:248-624-9234 Email:sales@acromag.com ttp://www.acromag.com... -
Page 31: General Specifications
RTN terminals of the port. The recommended SIP resistor is a four lead connection. isolated resistor type (8 pins) and may be obtained from Acromag or another vendor. These SIP resistors typically come rated for 0.2W, 0.3W, 0.4W, or 0.5W per element. For example, refer to Bourns 4308R-102, 4308M-102, or 4308H-102 parts. -
Page 32: Agency Approvals
CAUTION: Risk of Electric Shock – More than one disconnect switch may External Fuse: Select a high surge tolerant fuse rated for be required to de-energize equipment before servicing. 1A or less to protect unit. Acromag, Inc. Tel:248-295-0880 Fax:248-624-9234 Email:sales@acromag.com ttp://www.acromag.com... - Page 33 WARNING – EXPLOSION HAZARD – Substitution of any components may impair suitability for Class I, Division 2. WARNING – EXPLOSION HAZARD – Do not disconnect equipment unless power has been switched off or the area is known to be non-hazardous. Acromag, Inc. Tel:248-295-0880 Fax:248-624-9234 Email:sales@acromag.com ttp://www.acromag.com...
-
Page 34: Ethernet Interface
LED indicates activity (ethernet connection is busy/traffic is present). Address: The module IP address can be preset by the user (static) and Refer to Acromag Application loaded from internal non-volatile memory, or it can be automatically Note 8500-734 for instructions... -
Page 35: Accessory Cables
TIA/EIA 568A standard. Category 5 cable includes four twisted wire pairs at eight twists per foot. This device is designed for use in harsh industrial environments. Acromag recommends the use of shielded cable when wiring to this device. Select STP (Shielded Twisted Pair) cable rather than UTP (Unshielded Twisted Pair). - Page 36 Note that you do not need to use a crossover cable to connect your PC to this module if the Acromag 900EN-S005 switch is used between the PC and module, as the switch is auto-crossing. However, you must use a crossover cable when directly connecting your PC to a Series 9xxEN I/O Module without the use of an auto-crossing switch or hub.
-
Page 37: Revision History
Added ATEX and updated CE specifications (ECN 12L019). 21 APR 14 CAP/SRW Update ATEX per latest standards (ECO 14D012). Update “WARNING - EXPLOSION HAZARD - Substitution 09 JAN 2019 CAP/ARP of any components...” per uL. Acromag, Inc. Tel:248-295-0880 Fax:248-624-9234 Email:sales@acromag.com ttp://www.acromag.com...
