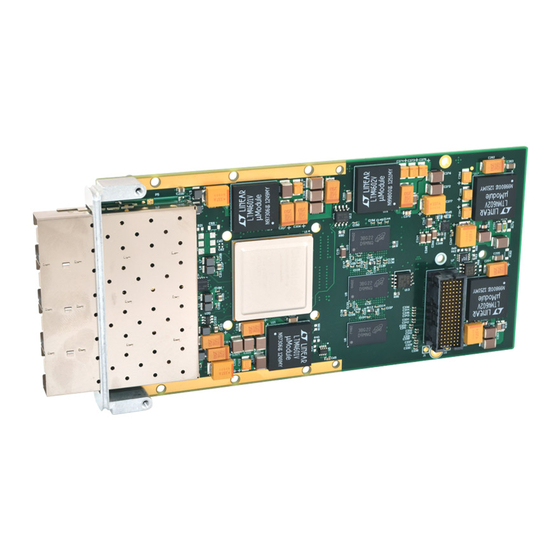

- Page 1 10-Gigabit Ethernet XMC Module USER’S MANUAL ACROMAG INCORPORATED 30765 South Wixom Road Wixom, MI 48393-2417 U.S.A. Tel: (248) 624-1541 Fax: (248) 624-9234 Copyright 2014, Acromag, Inc., Printed in the USA. Data and specifications are subject to change without notice. 8501001E...
-
Page 2: Table Of Contents
Software/Driver Download for Windows Operating Systems ..........11 4.0 THEORY OF OPERATION ................... 13 PCIE INTERFACE LOGIC ....................... 14 SFP+ Module Connectors ....................14 DDR3 ..........................14 Clock Generation ....................... 14 Serial EEPROM ........................15 Acromag, Inc. Tel: 248-295-0310 - 1 - - 1 - http://www.acromag.com www.acromag.com... - Page 3 256Kb EEPROM ............................20 32Mb Flash ..............................20 Temperature Sensor ..........................21 PCIe Bus Interface ............................21 XMC-6280 Block Diagram ....................22 Certificate of Volatility ....................... 23 Revision History ......................... 24 Acromag, Inc. Tel: 248-295-0310 - 2 - - 2 - http://www.acromag.com www.acromag.com...
- Page 4 It is important that you perform satisfactory overall system design and it is agreed between you and Acromag, that this is your responsibility. The information of this manual may change without notice. Acromag makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
-
Page 5: General Information
On power up, the ASIC will copy the firmware from the flash into DRAM. The 5Gb of DDR3 will contain the data buffers and connection information to support up to 32K offloaded connections. Acromag, Inc. Tel: 248-295-0310 - 4 - - 4 - http://www.acromag.com... -
Page 6: Ordering Information
XMC-6280 USER’S MANUAL Ordering Information The following table lists the orderable model and its description. XMC-6280-LF is air-cooled with an operating temperature of -20C to +70C. MODEL Description Table 1.1: The XMC-6280 board is only available in a XMC-6280-LF Lead Free, RoHS compliant lead free version. -
Page 7: Hardware Requirements
MAC ID is 00:01:C3:00:7F:5A, the following MAC IDs are 00:01:C3:00:7F:62, 00:01:C3:00:7F:6A and 00:01:C3:00:7F:72. 2.0 PREPARATION FOR USE Unpacking and Inspecting Upon receipt of this product, inspect the shipping carton for evidence of Acromag, Inc. Tel: 248-295-0310 - 6 - - 6 - http://www.acromag.com www.acromag.com... -
Page 8: Card Cage Considerations
For repairs to a product damaged in shipment, refer to the Acromag Service Policy to obtain return instructions. It is suggested that salvageable shipping... -
Page 9: Sfp+ Module Connector
I/O grounds. As such, the field I/O connections are not isolated from the system. Care should be taken in designing installations without isolation to avoid noise pickup and ground loops caused by multiple ground connections. Acromag, Inc. Tel: 248-295-0310 - 8 - - 8 - http://www.acromag.com... -
Page 10: Software/Driver Information
Software/Driver Download from Linux Source Tarball 1. Go to http://service.chelsio.com and search the downloads as shown below. 2. In the SEARCH RESULTS choose the source tarball and click Download. Acromag, Inc. Tel: 248-295-0310 - 9 - - 9 - http://www.acromag.com... - Page 11 4. Download the Chelsio support documentation including the README, Release Notes and User Guide. Refer to the User Guide for information on how to properly install and use the Chelsio drivers. Acromag, Inc. Tel: 248-295-0310 - 10 - - 10 - http://www.acromag.com...
-
Page 12: Software/Driver Download For Windows Operating Systems
Wire driver. Refer to the README file for information on supported operating systems and functionality. 2. View the EULA, then click on Accept EULA & Download to download the .exe file. Acromag, Inc. Tel: 248-295-0310 - 11 - - 11 - http://www.acromag.com... - Page 13 XMC-6280 USER’S MANUAL 3. Run the ChelsioUwire-x.x.x.xx.exe installer application. Refer to the User Guide for information on how to properly install and use the Chelsio drivers. Acromag, Inc. Tel: 248-295-0310 - 12 - - 12 - http://www.acromag.com www.acromag.com...
-
Page 14: Theory Of Operation
Ethernet SERIAL SFP+ SFLASH FLASH 10GBPS Ethernet SFP+ 10GBPS 50MHz Ethernet SFP+ XTAL 10GBPS GPIO MDIO DC/DC @ 1.0, 1.2, 1.5, 2.5 & 3.3 volts PCIE 2.0 x8 Acromag, Inc. Tel: 248-295-0310 - 13 - - 13 - http://www.acromag.com www.acromag.com... -
Page 15: Pcie Interface Logic
There is one onboard 50MHz XTAL providing the core clock to the T4 ASIC. This XTAL is all that is needed in order for the ASIC to internally produce the necessary clocks needed for operation. Acromag, Inc. Tel: 248-295-0310 - 14 - - 14 - http://www.acromag.com... -
Page 16: Serial Eeprom
ASIC has been designed to shut down at junction temperatures above 115 degrees Celsius. This is in an attempt to save the chip from being damaged and is not a guarantee that it will not be damaged. Acromag, Inc. Tel: 248-295-0310 - 15 - - 15 - http://www.acromag.com... -
Page 17: Power System Devices
U21. The LTM4602 devices output +2.5V, +1.5V and +1.2V while the LTM4601 devices output +1.0V. The +1.5V supply is input to the TPS51200 device U15 to output +0.75V for DDR3 termination. Figure 4.2: Power Distribution Acromag, Inc. Tel: 248-295-0310 - 16 - - 16 - http://www.acromag.com... -
Page 18: Service And Repair
Surface-Mounted Technology (SMT) boards are generally difficult to repair. It is highly recommended that a non-functioning board be returned to Acromag for repair. The board can be easily damaged unless special SMT repair and service tools are used. Further, Acromag has automated test equipment that thoroughly checks the performance of each board. -
Page 19: Where To Get Help
Acromag worldwide web site at http://www.acromag.com. Our web site contains the most up-to-date product and software information. Acromag’s application engineers can also be contacted directly for technical assistance via email, telephone, or FAX through the contact information listed at the bottom of this page. When needed, complete repair services are also available. -
Page 20: Environmental
The Chelsio fourth generation Terminator 4 ASIC is a 27x27mm 675-pin FCBGA package with a 8-lane PCIe Gen2 interface to the server and four 1GbE/10GbE MACs on the network side. Acromag, Inc. Tel: 248-295-0310 - 19 - - 19 - http://www.acromag.com... -
Page 21: P15 Xmc Connector
PCIe configuration information. It also contains the T4 ASIC firmware configuration data. 32Mb Flash 32Mb (4Mb x 8) Micron M25P32 Serial Flash contains the T4’s internal microprocessor firmware code. Acromag, Inc. Tel: 248-295-0310 - 20 - - 20 - http://www.acromag.com www.acromag.com... -
Page 22: Temperature Sensor
XMC Compatibility: Conforms to PCI Express Base Specification v2.0, and XMC Specification, P1386.1 ANSI/VITA 42.0: Complies with XMC module mechanicals and connectors ANSI/VITA 42.3: XMC module with PCI Express Interface Acromag, Inc. Tel: 248-295-0310 - 21 - - 21 - http://www.acromag.com... -
Page 23: Xmc-6280 Block Diagram
10GBPS Ethernet SFP+ 10GBPS 50MHz Ethernet SFP+ XTAL 10GBPS GPIO MDIO DC/DC @ 1.0, 1.2, 1.5, 2.5 & 3.3 volts PCIE 2.0 x8 Figure 1 XMC-6280 Block Diagram Acromag, Inc. Tel: 248-295-0310 - 22 - - 22 - http://www.acromag.com www.acromag.com... -
Page 24: Certificate Of Volatility
□ No configuration data the EEPROM Acromag Representative Name: Title: Email: Office Phone: Office Fax: Joseph Primeau Dir. of Sales jprimeau@acromag.com 248-295-0823 248-624-9234 Marketing Acromag, Inc. Tel: 248-295-0310 - 23 - - 23 - http://www.acromag.com www.acromag.com... -
Page 25: Revision History
2-Oct-15 CAB/MJO Remove Leaded Option for RoHS compliance. 14-NOV-2017 ENZ/MJO Added PCIe Device and Vendor IDs 28-NOV-2018 ENZ/ARP Added dimensions of protruding SFP cage out front panel. Acromag, Inc. Tel: 248-295-0310 - 24 - - 24 - http://www.acromag.com www.acromag.com...
