Summary of Contents for Henkelman Atmoz Series

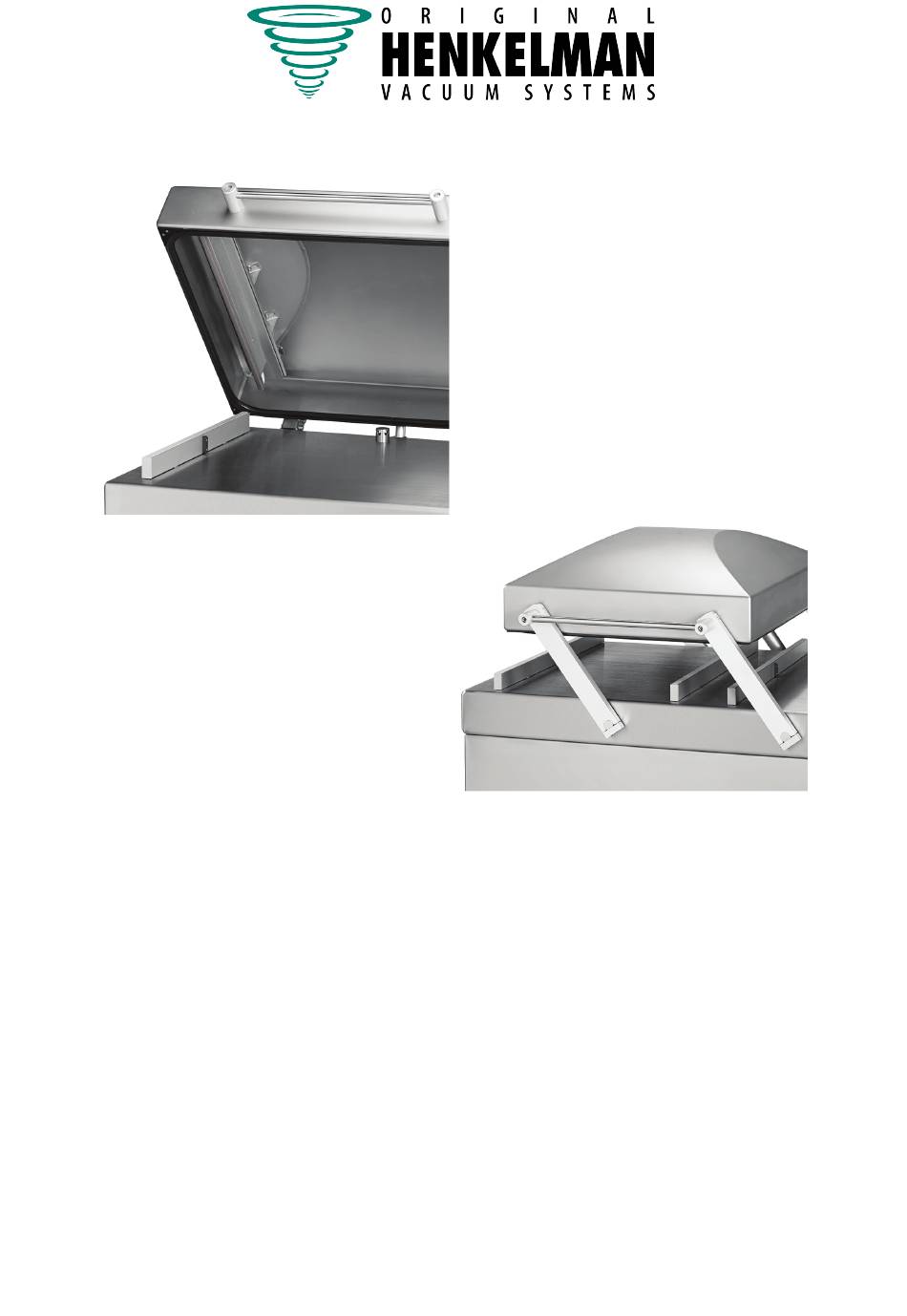

- Page 1 Vacuum Packaging Machine Atmoz User Manual Art No. 0895036 Original Instructions for Use © Henkelman 2019...
- Page 2 Henkelman BV accepts no liability for damage and/or problems arising from the use of spare parts not supplied by Henkelman BV. This user manual has been compiled with all possible care. Henkelman BV assumes no responsibility for any errors in this manual and/or the consequences of an erroneous interpretation of the instructions.
-
Page 3: Table Of Contents
2.3 Warnings During Use......................12 2.4 Warnings for Operating Personnel..................12 3 Introduction..........................13 4 Description of the Machine.......................14 4.1 Atmoz series.........................14 4.1.1 Overview of the Main Components................15 4.2 Description of the Packaging Process/Machine Functions..........16 4.2.1 Packaging Process/Machine Functions................16 4.2.2 General Functions......................19 4.3 Sealing System........................ - Page 4 6.1.6.5 Gas+ (optional)..................... 27 6.1.6.6 Liquid Control (optional)..................27 6.1.6.7 Liquid Control+ (optional)..................27 6.1.6.8 Red Meat (optional)....................28 6.1.6.9 Multi-Cycle Vacuum (optional)................28 6.1.6.10 Seal........................29 6.1.7 Example programmes....................29 6.1.8 Guideline for Function Values..................30 6.2 Advanced Control System (ACS)..................32 6.2.1 Operating Elements......................33 6.2.1.1 Changing the ACS Settings.................
- Page 5 7.4 Replacing the Silicone Rubber of the Silicone Holders............56 7.5 Replacing the Lid Gasket.....................57 7.6 Inspecting the Lid Springs....................58 7.7 Vacuum Pump maintenance....................59 7.7.1 Overview pump 63 - 300 m /h..................59 7.7.2 Removing Oil, Replacing Oil Filter, Refilling Oil............59 7.7.3 Replacing the Oil Exhaust Filter..................
-
Page 6: List Of Figures
List of Figures Figure 1: Overview of the Main Components................. 15 Figure 2: Overview of the Sealing System..................20 Figure 3: Direction of Rotation of the Vacuum Pump..............22 Figure 4: Control Panel of the 10-Program Control System............23 Figure 5: Control Panel of the Advanced Control System (ACS)........... 33 Figure 6: Possible Display Modes.................... -
Page 7: Preamble
Preamble This is the manual for your Henkelman vacuum packaging machine series: Atmoz. This manual is intended for anyone who works with or services the machine. This manual contains information and instructions for installation, operation and maintenance of the machine. We recommend that you carefully read this manual before use and follow the procedures and instructions strictly. -
Page 8: Storing The Manual
The warranty is subject to the following limitations. The warranty period for products supplied by Henkelman BV is 1 year from the date indicated on the purchase document. This warranty is limited to manufacturing and machining defects and therefore does not cover breakdowns involving any part of the product that is exposed to any form of wear and tear. -
Page 9: Terms And Abbreviations
• With the exception of the applicable legal regulations of public order and good faith, we are not liable to pay for any damage of any sort whatsoever to the counterparty or to third parties, directly or indirectly, including lost profits, damage to movable or immovable property or personal injury. -
Page 10: Safety
Safety Your vacuum packaging machine has been carefully designed and expertly built to be operated safely. This is corroborated by the EC Declaration of Conformity. However, there are always dangers and safety risks that cannot be eliminated. These dangers and risks are the result of the use functions of the machine and operation of the machine by the user. -
Page 11: General Warnings
General Warnings • All persons responsible for the operation of this machine must at least fully read and understand the chapters Safety on page 10 and Operation on page 23. • Failure to follow or disregard of the safety instructions may result in serious injury. •... -
Page 12: Warnings During Use
Warnings During Use • Before starting the machine, make sure no work is being performed on the installation and that the machine is ready for use. • The machine may not be operated by unauthorised persons. This should be monitored by the machine operator(s). -
Page 13: Introduction
Introduction Henkelman BV is a supplier of ultra-modern vacuum packaging machines. Our machines are developed and manufactured to meet the highest standards. They combine a sleekly build and functional design with optimal ease of use and a long service life. After mounting the plug, it is just a matter of "plug &... -
Page 14: Description Of The Machine

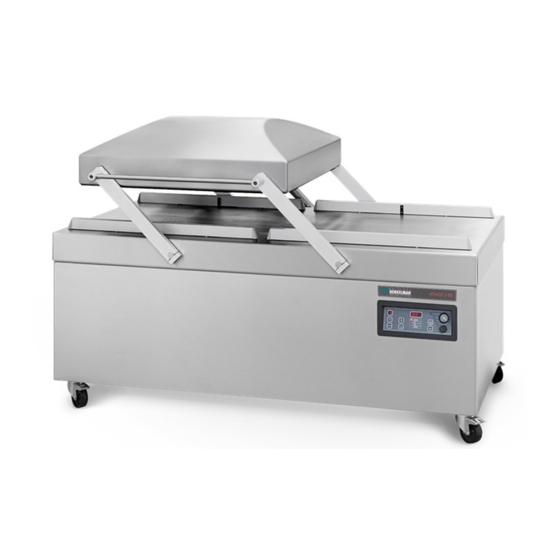

Atmoz series Available as a single or double chamber vacuum packaging machine. The Atmoz series is a full range of single and double chamber vacuum packaging machines, suitable for both food and non-food applications. • Standard 10 program memory •... -
Page 15: Overview Of The Main Components
4.1.1 Overview of the Main Components The figure below shows the main components of the system. The model shown may differ from your machine. Figure 1: Overview of the Main Components The lid closes the vacuum chamber during the application of the vacuum. A rubber is mounted in the lid to ensure proper closing. -
Page 16: Description Of The Packaging Process/Machine Functions
Power connection and cable This serves to connect the machine to the power supply. The machine is supplied without an electrical plug. Gas flush system connector (optional) After applying vacuum, a gas is injected into the packaging to create a modified atmosphere to protect the shape of the product or increase the shelf life of the product. - Page 17 Step Process phase Operation Vacuum+ Vacuum+ is only available if the vacuum percentage is set to the maximum. The Vacuum+ option continues the vacuum process for an additional time to allow any entrapped air to escape from the product. The Vacuum+ option is only available on sensor-controlled machines.
- Page 18 Step Process phase Operation Sequential Vacuum This function is only available on machines with the ACS. (optional) With sequential vacuum, you can alternate vacuum and pause steps to allow air trapped inside a product to escape from the core. A maximum of 5 steps can be programmed. Multi-Cycle Vacuum This function is only available on machines with a 10-PCS.
-
Page 19: General Functions
Step Process phase Operation Jars (optional) This function is only available on machines with the ACS. This is a fast program specially designed for vacuum sealing jars. The seal and soft-air phase are shut off during this pro- gram. During the cycle, the air is removed from the chamber until the pre-set value has been reached. -
Page 20: Sealing System
Function Pictogram Operation Sleeper option The Sleeper option shuts down the machine after a certain time. The default setting is 10 minutes. If you wish to change this time, please contact your supplier. Sealing System The sealing system closes the opening(s) of the bag to retain the vacuum and/or gas in the bag. The end of the bag can optionally be cut off by the sealing bar. -
Page 21: Installation
Installation Consult Technical Data on page 66 for the specifications of the machine. Before installing the machine, carefully read the safety instructions in Safety on page 10. Failure to follow or disregard of the safety instructions may result in serious injury. Transportation and Installation The machine must be moved and transported in an upright position. -
Page 22: Prior To The First Use
Fit the correct plug on the cable in accordance with local legislation and connection data. See Technical Data on page 66 for the correct electrical connection. Connect the machine to a grounded wall outlet to avoid fire or electric shock. •... -
Page 23: Operation
Operation The vacuum packaging machine is equipped with the 10-Program Control System. • All persons responsible for the operation of this machine must at least fully read and understand the chapters Safety on page 10 and Operation on page 23. •... -
Page 24: Starting The Machine
Parameter display This display shows the current value of the active function during the program cycle or the set value of the selected function when the machine is inactive. A red dot will light up in the bottom right if the Vacuum+ option is enabled. Function display The LED light in front of the function lights up if the function is active during the program cycle or if the function is selected in the programming mode. -
Page 25: Terminating A Program
6.1.5 Terminating a Program Programmes such as the packaging program or the pump cleaning program can be terminated at any time. Terminate the program. Press the – / STOP button. The program will be terminated and the vacuum chamber is decompressed. 6.1.6 Changing the Program Settings 10 programmes are available. -
Page 26: Vacuum+ (Optional)
Close the lid. The vacuum cycle starts to run. Press the + / VACUUM STOP button when the desired vacuum level has been reached. The cycle will continue to the next phases. When the cycle is finished, press the REPROG button to save the settings. 6.1.6.3 Vacuum+ (optional) If air is trapped in the product, it may be desirable to extend the vacuuming time after the maximum... -
Page 27: Gas+ (Optional)
Press the REPROG button to activate the new parameter. The function display will stop flashing. 6.1.6.5 Gas+ (optional) The Gas+ option only applies if the machine is equipped with the gas option. For some products it may be desirable to insert additional gas into the packaging to create a "balloon packaging". This allows for a better protection of a fragile product. -
Page 28: Red Meat (Optional)
Press the PROG 0 – 9 button until H2O is shown on the parameter display. The parameter display indicates H2O. Press the Cursor key once to select the Liquid Control+ parameter. The parameter display indicates OFF. The LED of the function display will remain on Vacuum. Press the –... -
Page 29: Seal
6.1.6.10 Seal This is the time that the sealing wire and/or the cut-off wire are heated. The longer the time, the more heat is transferred to the bag. As an option, the machine can be equipped with a Seal 1-2 option. This means the seal wire is activated separately from the cut-off wire. -
Page 30: Guideline For Function Values
Set as controlled by Liquid Control sensor Prog no. Vacuum Vacuum+ Seal 2.2 s 2.2 s 2.2 s 2.2 s 2.5 s 2.5 s 2.5 s 2.5 s 2.5 s 2.5 s Seal 2 3.5 s 3.5 s 3.5 s 3.5 s 3.5 s 3.5 s... - Page 31 Function Range Conditions Gas+ 0.1 – 1 second For some products it may be desirable to insert ad- ditional gas into the packaging to create a "balloon packaging". This allows for a better protection of a fra- gile product. The recommended value for Gas+ is 0.7 seconds.
-
Page 32: Advanced Control System (Acs)
Function Range Conditions Sleeper option 1 – 99 minutes This is the time the pump will continue running after running a cycle. This maintains the pump at operating temperature and prevents unnecessary starting and stopping of the pump, which causes additional wear of the pump. -
Page 33: Operating Elements
6.2.1 Operating Elements The ACS control panel allows the machine to be operated and programmes to be changed. Figure 5: Control Panel of the Advanced Control System (ACS) STOP button This is used to interrupt the entire cycle during a packaging cycle. All functions are skipped and the cycle is terminated. -
Page 34: Changing The Acs Settings
Figure 7: Possible Display Modes 6.2.1.1 Changing the ACS Settings To prevent unauthorised changing of the settings and adjustments, there are different levels of authorisation: user and owner. Authorisation codes for users or owners allow access to the various levels. User access to change the settings of the machine is limited. The default user code is 0000. Users can only activate the printer via the printer icon in the navigation mode. - Page 35 Settings 1.3 Date & 1.5 Screen 1.7 Program 1.8 Data log 1.1 Printer 1.2 Units 1.6 Options Time Language saver names Screen Sleeper Pressure Data log ID Printer Date format English saver option Program unit On/Off On/Off On/Off (only on floor Temperature Time format...
-
Page 36: Importing/Exporting Data
6.2.1.2 Importing/Exporting Data Data such as programmes and labels can be imported and exported via the USB connection. 6.2.1.3 Data Log ID The control system is provided with the option to store the production information. The data log is stored in lined entries. Each entry consists of: •... -
Page 37: Figure 9: Example Of An Exported Data Log
6.2.1.3.2 Exporting Data Log The memory can store up to 100 entries. If the memory is full, you will receive a message. The data log will first need to be exported before you can continue your work. You can export the data at any time. -
Page 38: Starting The Machine
Label Number The label that was printed for this package. Number of Cycles The number of cycles run from the start time. 6.2.2 Starting the Machine Plug in the machine. Press the on/off button on the control panel to enable the operation. 6.2.3 Starting the Packaging Cycle The machine must be started in accordance with Starting the Machine on page 38 before... -
Page 39: Programming The Acs Control Using The Pc
Element Explanation Program number/name The program shows the currently selected, pre-set pro- gram. By switching to a different program, other func- tions will be activated. The program selection depends on the product being packaged. Functions These functions are active or inactive. If a function is active, it is displayed in a blue shade. -
Page 40: Functions
After saving the programmes and labels into the configurator, you can save the file with the labels or programmes on your computer or directly on a USB stick: Click on Save all programmes/labels to export programmes or labels. Choose Save as to save the file on the correct location. Do not change de name of the files labels.txt and programs.txt. -
Page 41: Vacuum+ (Optional)
Close the lid. The vacuum cycle starts to run. When you reached the desired vacuum level, press the cursor key ► to go to the next phase of the packaging cycle. When the cycle is finished, a message will appear. If you want to save, press enter to confirm. -
Page 42: Gas+ (Optional)
6.2.5.7 Gas+ (optional) The Gas+ option only applies if the machine is equipped with the gas option. For some products it may be desirable to insert additional gas into the packaging to create a "balloon packaging". This allows for a better protection of a fragile product. The recommended value for Gas+ is 0.7 seconds. -
Page 43: Red Meat (Optional)
Set the value of Liquid Control to the maximum (99.8%) as described in Liquid Control (optional) on page 42. Enable Liquid Control+. Use the cursor keys ▲ and ▼ to go to the value for Liquid Control+ and press Enter. Set the desired value using the cursor keys ▲... -
Page 44: Marinating (Optional)
10. Close the lid to start the vacuum cycle. 6.2.5.12 Marinating (optional) This function is especially designed to accelerate the marinating of a product. This program allows definition of up to 5 vacuuming steps with intermediate ventilation steps. The vacuuming steps have a fixed vacuum value of 80%, except for the last step. The last vacuuming step has an adjustable value of up to 99.8%. -
Page 45: Jars (Optional)
Set the desired value using the cursor keys ▲ and ▼ and press Enter. 10. Press the cursor key ◄ to return to the menu. 11. Close the lid to start the vacuum cycle. 6.2.5.14 Jars (optional) Fast program specially designed for vacuum sealing jars. Seal and soft-air phase are shut off during this program. -
Page 46: Dealer Information
Press Enter to open the menu. If Soft-air is not enabled, enable it. Press Enter and use the cursor keys ▲ and ▼ to turn Soft- air ON. Press Enter. Use the cursor keys ▲ and ▼ to go to the value for the Soft-air time and press Enter. Set the desired value using the cursor keys ▲... - Page 47 Customer name Label number Name Info Use by / Storage life Storage temperature Print customer name Y/N Print info Y/N Print achieved vacuum Y/N 10. Print expiry date Y/N 11. Print user Y/N 12. Print storage temperature Y/N Once the printer is selected and the required information for the label is entered, the printer can be activated on each separate program.
-
Page 48: Replacing A Printer Roll
6.2.7.3 Replacing a Printer Roll Follow the steps below to place the label roll in the printer. Despite the inner diameter of the label roll being bigger than the holder, the roll can be used without any issues. Figure 11: Replacing the Printer Roll Operation... -
Page 49: Aligning The Printer
6.2.7.4 Aligning the Printer Switch on the printer and make sure the indication light is green. Press the Pause and Cancel button simultaneously for 2 seconds. Figure 12: Aligning the Printer The printer will print several labels and determine the correct position. Press the Feed and Cancel button simultaneously for 2 seconds. -
Page 50: Example Programmes
6.2.8 Example programmes The vacuum packaging machine is equipped with sample programmes with pre-set parameters. It is possible to optimise a program for your products by modifying the parameters. Prog Vacuum Vacuum+ Seal Soft-air Type of product 99.8% 2.2 s Solid products Liquids/liquid-con- 2.2 s... -
Page 51: Guideline For Function Values
Set as sensor-controlled Prog no. Vacuum 99.8% 99.8% 99.8% 99.8% 99.5% 99.8% 99.8% Vacuum+ Gas (optional) Seal 2.5 s 2.5 s 2.0 s 2.0 s 2.0 s 2.0 s 2.0 s 2.0 s 2.0 s 2.0 s Seal 2 2.5 s 2.5 s 2.0 s 2.0 s... - Page 52 Function Range Conditions Liquid Control 30 – 99.8% If the pressure is reduced, the boiling point of liquids will be decreased. As a result of this law of nature, a product may start boiling. In addition to contamination of the machine, this will reduce the weight and qual- ity of the product to be packaged.
- Page 53 Function Range Conditions Cleaning of the 15 minutes Fixed value. pump The vacuum in the chamber must be at least 30% at the moment of sealing. If the pressure is reduced, the boiling point of liquids will be decreased; see Vapour Pressure Curve of Water on page 68.
-
Page 54: Maintenance
Maintenance When carrying out maintenance work, always observe the following safety rules. • Always disconnect the power supply by turning the main switch to "0" or disconnecting the plug. • Always disconnect the air supply (if applicable). • Only trained technicians are authorised to perform the described maintenance activities. •... -
Page 55: Cleaning The Machine
Activity * 1-D 1-W 6-M 1-Y 4-Y Replace the lid gasket. Replace the oil exhaust filter. Replace the oil filter. Contact your dealer for professional servicing. * 1-D = Daily, 1-W = Weekly, 6-M = Every 6 months, 1-Y = Annually, 4-Y = Every 4 years Cleaning the Machine •... -
Page 56: Replacing The Silicone Rubber Of The Silicone Holders
Remove the sealing bar from the holders (4) by disconnecting the two electrical connector plugs (2) and removing the M6 screw (3). See Figure 14: Removing the Sealing Bar on page 55. Figure 15: Replacing the Sealing Wire Remove the Teflon tape (1) that protects the sealing wire. Remove the screws (2) at the bottom of the sealing bar and remove the sealing wires (3). -
Page 57: Replacing The Lid Gasket
Replace the silicone rubber if damaged or as specified in Maintenance Schedule on page 54. Figure 16: Replacing the Silicone Rubber of the Silicone Holders Pull the old silicone rubber from the holder, see Figure 16: Replacing the Silicone Rubber of the Silicone Holders on page 57. -
Page 58: Inspecting The Lid Springs
Pull the old gasket loose to remove it. Cut a new piece of rubber. Preferably cut the new piece of rubber slightly longer than the old piece. The edges must be cut straight. If the lid gasket is too short or too long, this may cause problems when closing the lid or it may cause leakage. -
Page 59: Vacuum Pump Maintenance
Vacuum Pump maintenance The vacuum pump creates the vacuum. Regular maintenance of the pump is very important. 7.7.1 Overview pump 63 - 300 m Figure 18: Overview of the Busch Pump Vacuum pump - Creates the vacuum for the process. Oil exhaust filter - Filters the air by capturing oil vapours. -
Page 60: Replacing The Oil Exhaust Filter
Remove the oil drain plug. The oil will drain from the pump. Replace the oil drain plug. Follow the steps below to replace the oil filter: Remove the old oil filter. Insert a new oil filter. Follow the steps below to add oil to the pump. You can follow these steps after all oil has been removed, but also to refill oil. -
Page 61: Running The Pump Cleaning Program
Mount the filter cover placed aside. 7.7.4 Running the Pump Cleaning Program The pump cleaning program runs the vacuum pump for 15 minutes. During the program, the pump and the oil reach the operating temperature. Moisture in the pump is absorbed by the oil. The high temperature causes any moisture in the pump to evaporate, and minimises the risk of corrosion. -
Page 62: Troubleshooting And Error Codes
Troubleshooting and Error Codes The tables below show the possible malfunctions and the corresponding causes as well as the steps to be taken. Malfunction Activity More information Control panel does not illumin- • Connect the machine to the Connecting the Machine on ate. - Page 63 Malfunction Activity More information Vacuum bag is not sealed cor- • Check the seal settings Operation on page 23. rectly. of the program and adjust Replacing the Sealing Wire on them. page 55. • Check/replace the Teflon Replacing the Silicone Rubber tape and the sealing wires.
- Page 64 Malfunction Activity More information Message "Cycle aborted" in • Check whether the lid is display. open. Oil Notification (if activated). • A service check is needed. Contact your supplier. Oil Alert (if activated) • A service check is needed. Contact your supplier. Pump Cleaning Alert •...
-
Page 65: Disposal
Disposal Do not dispose of oil and components as household waste. When repla- cing oil or components at the end of the service life, ensure that all ma- terials are collected and disposed or reused in a legal and environment- ally sound manner. -
Page 66: Appendices
Appendices 10.1 Technical Data 10.1.1 Atmoz Atmoz Atmoz 90 Atmoz 2-75 Atmoz 2-90 General Ambient temperature during operation 5 to 30°C 5 to 30°C 5 to 30°C Sound emission < 70 dB(A) < 70 dB(A) < 70 dB(A) Maximum daily production 8 hrs/day 8 hrs/day 8 hrs/day... -
Page 67: Electrical Installation
10.2 Electrical Installation The electrical installation provides power for the vacuum pump, the seal system and the operation of the machine. See the electrical diagram for the further structure and operation of the electrical installation. Please contact your supplier for the electrical diagram. Only a technical expert may perform work on the electrical installation. -
Page 68: Vapour Pressure Curve Of Water
10.3 Vapour Pressure Curve of Water Figure 21: Vapour Pressure Curve of Water Appendices... -
Page 69: Logbook
10.4 Logbook This logbook must include: • Annual maintenance work • Major replacements and emergencies • Modifications • Tests of the emergency stop buttons and safety devices Date: Performed by: Description: (authority, technician) (nature of the activities, which parts have been replaced) Appendices... - Page 70 Date: Performed by: Description: (authority, technician) (nature of the activities, which parts have been replaced) Appendices...
