SETUP INSTRUCTIONS
2018

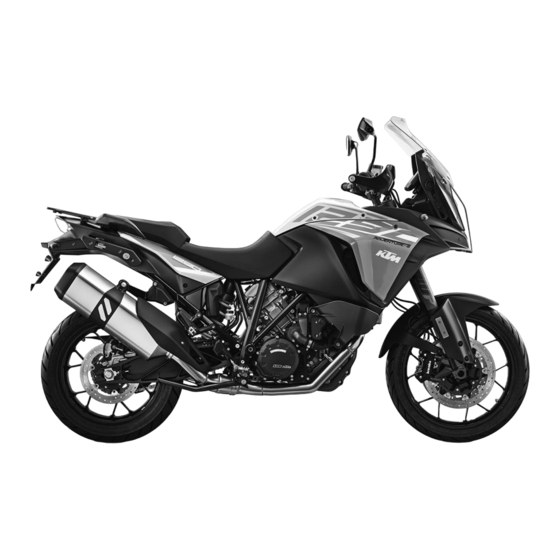

1290 Super Adventure S
Art. no. 3213785en

Advertisement

Table of Contents
loading

Related Manuals for KTM 1290 Super Adventure S 2018

Summary of Contents for KTM 1290 Super Adventure S 2018

  • Page 1 SETUP INSTRUCTIONS 2018 1290 Super Adventure S Art. no. 3213785en...
  • Page 3 KTM accepts no liability for delivery options, deviations from illustrations and descrip- tions, misprints, and other errors. The models portrayed partly contain special equipment that does not belong to the regular scope of supply.

  • Page 4: Means Of Representation

    1 MEANS OF REPRESENTATION Symbols used The meaning of specific symbols is described below. Indicates an expected reaction (e.g. of a work step or a function). Indicates an unexpected reaction (e.g. of a work step or a function). Indicates a page reference (more information is provided on the specified page). Indicates information with more details or tips.
  • Page 5 SETUP 2 Unpacking and setting up the vehicle – Remove the straps and box. F01344-10 – Remove the adhesive tape in the upper area of the motorcycle. V00718-10 – Roll down the film at the sides. Info To avoid damaging the motorcycle during unpacking, leave the other films on the vehicle until you have fin- ished work on the vehicle.
  • Page 6 2 SETUP Warning Danger of accidents A repaired handlebar poses a safety risk. If the handlebar is bent or straightened, the mate- rial becomes fatigued. The handlebar may break as a result. – Change the handlebar if the handlebar is damaged V00722-10 or bent.

  • Page 7: Remove Screws

    – Position engine guard. Mount and tighten the screws with the distance sleeves. Guideline Screw, engine guard 10 Nm (7.4 lbf ft) F01347-10 Condition Function KTM MY RIDE (optional) activated. – Remove screws – Take off the headlight mask. F01348-10...

  • Page 8: Mount And Tighten Screws

    Info If the function KTM MY RIDE is enabled, the sticker must be applied. If the function KTM MY RIDE is not enabled or has been disabled, the sticker must not be applied. – Join the plug-in connector.
  • Page 9 Recharge the battery. ( p. 9) – Remove the remaining films. – Check the headlight setting. ( p. 13) – Refuel. ( p. 17) – Prepare the vehicle according to the specifications in the KTM Dealer.net for handover to the customer.
  • Page 10 3 WORK Installing the wind shield – Position wind shield – Mount and tighten screws Guideline Screw, wind shield 3.5 Nm (2.58 lbf ft) V00728-10 Removing the passenger seat – Insert the Race‑on key or the black ignition key into the seat lock and turn clockwise.

  • Page 11: Recharging The Battery

    WORK 3 Mounting the front rider's seat Main work – Attach the recesses on the front rider's seat to the fuel tank at the desired seat position , and push the driver's seat forward while lowering it at the rear. –...
  • Page 12 3 WORK – Remove the front rider's seat. ( p. 8) – Remove the battery. ( p. 10) Main work – Connect the battery charger to the battery. Adjust the battery charger. EU battery charger XCharge-professional (00029095050) Alternative 1 US battery charger XCharge-professional (00029095051) Alternative 2 311910-10...
  • Page 13 WORK 3 Caution Danger of accidents Electronic components and safety devices will be damaged if the battery is discharged or missing. – Never operate the vehicle with a discharged battery or without a battery. Preparatory work – Switch off ignition - to do this briefly press the Race-on but- (maximum of 1 second) with the ignition switched on.
  • Page 14 3 WORK Main work – Position the battery in battery case Guideline The even side of the battery case must be opposite the poles. – Position the battery and battery case in the battery compart- ment. – Position the positive cable and mount and tighten the E01068-11 screw.

  • Page 15: Checking The Headlight Setting

    WORK 3 Setting the clock – Press the UP or DOWN button until the time is marked. – Press the SET button. The hour next to Clock flashes. – Press the UP or DOWN button until the current hour is set. –...
  • Page 16 3 WORK – Adjust the headlight range. ( p. 14) 3.11 Adjusting the headlight range Preparatory work – Check the headlight setting. ( p. 13) Main work – Turn adjusting wheel to adjust the headlight range. Info Turn counterclockwise to increase the headlight range; turn clockwise to reduce the headlight range.
  • Page 17 WORK 3 Info The range may be reduced by decreases in battery volt- age of the Race-on key and interfering radio waves. If the battery voltage of the Race-on key is too low, one of the keys must be held in area of the antenna and must be safely stored again after starting.
  • Page 18 3 WORK Warning Danger of poisoning Fuel is poisonous and a health hazard. – Avoid skin, eye and clothing contact with fuel. – Immediately consult a doctor if you swallow fuel. – Do not inhale fuel vapors. – In case of skin contact, rinse the affected area with plenty of water. –...
  • Page 19 WORK 3 3.15 Refueling Danger Fire hazard Fuel is highly flammable. The fuel in the fuel tank expands when warm and can escape if overfilled. – Do not refuel the vehicle in the vicinity of open flames or lit cigarettes. – Switch off the engine for refueling.

  • Page 20: Technical Data

    4 TECHNICAL DATA Chassis tightening torques Screw, combination switch, left 5 Nm (3.7 lbf ft) EJOT ALtracs Screw, headlight ® 60x20 8 Nm (5.9 lbf ft) EJOT ALtracs ® Screw, headlight holder 50x12 7 Nm (5.2 lbf ft) Screw, fixed grip, left 2 Nm (1.5 lbf ft) Screw, side stand switch 2 Nm (1.5 lbf ft)
  • Page 21 TECHNICAL DATA 4 Screw, foot brake cylinder 10 Nm (7.4 lbf ft) Loctite ® 243™ Screw, front brake disc 14 Nm (10.3 lbf ft) Loctite ® 243™ Screw, front wheel speed sensor 10 Nm (7.4 lbf ft) Screw, fuel pump 6 Nm (4.4 lbf ft) Screw, fuel tank 10 Nm (7.4 lbf ft)
  • Page 22 4 TECHNICAL DATA Screw, front brake caliper 45 Nm (33.2 lbf ft) Loctite ® 243™ Screw, handlebar support 40 Nm (29.5 lbf ft) Loctite ® 243™ Screw, side stand 35 Nm (25.8 lbf ft) Loctite ® 243™ Screw, side stand bracket 45 Nm (33.2 lbf ft) Loctite ®...
  • Page 23 SUBSTANCES 5 Super unleaded (ROZ 95/RON 95/PON 91) Standard/classification – DIN EN 228 (ROZ 95/RON 95/PON 91) Guideline – Only use unleaded super fuel that matches or is equivalent to the specified fuel grade. – Fuel with an ethanol content of up to 10 % (E10 fuel) is safe to use. Info Do not use fuel containing methanol (e.
  • Page 24 *3213785en* 3213785en 11/2017 KTM Sportmotorcycle GmbH 5230 Mattighofen/Austria Photo: Mitterbauer/KTM http://www.ktm.com...
